GA Series Learn more

WHOLE COVER FIBER LASER CUTTING MACHINE

Safety and No Pollution

    Safety and No Pollution

  • With a fully enclosed design;
  • The observation window adopts an European CE Standard laser protective glass;
  • The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
  • The weight of laser cut machine is 7500kg.

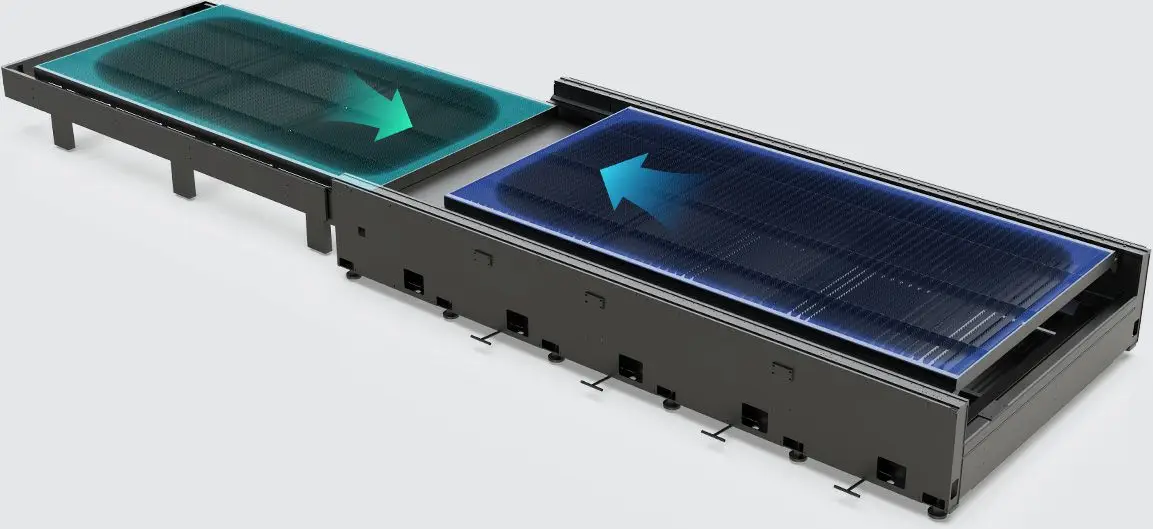

Exchanging Platform

  • It adopts an up and down exchange platform;
  • The converter is responsible for controlling
    the exchanging motor;
  • The laser cutting machine is able to finish the platform
    exchanging within 15s.
Exchanging Platform

The Third Generation Aviation Aluminum Gantry

Evolutionary history of gantry crossGantry

3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

3ST Generation Aviation Aluminum Beam

The Segmented Rectangular Tube Welded Bed

The laser cutter internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

Segmented rectangular tube welded bed

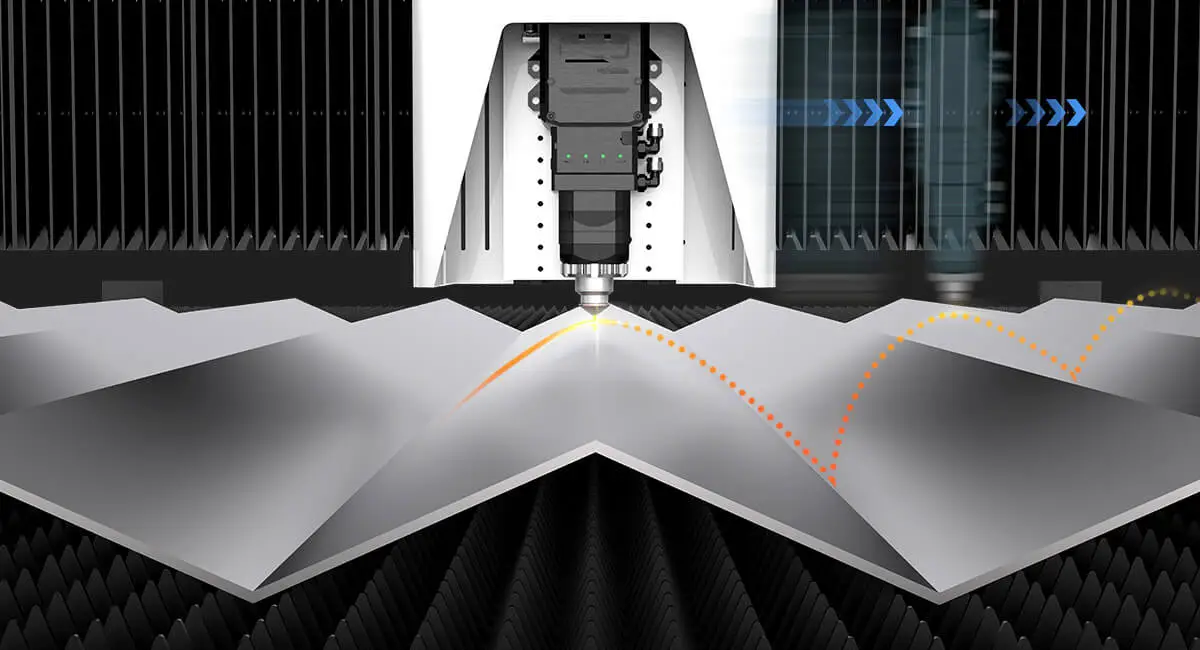

Without manual operation, it can focus automatically

Auto focus cutting head
  • Without manual focusing

    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
  • Bigger adjustment range

    Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
  • Long service life

    Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Transmission and Precision

Germany German Tech Quality

G·WEIKE fiber laser cutting machine is equipped with Taiwan YYC rack, Japanese Yaskawa motor and French Motoreducer. The repeat positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.

German quality

Technical Parameters

Machine model LF3015GA LF4020GA LF6025GA
Laser power 1000W, 1500W, 2000W, 3000W, 4000W, 6000W(Optional)
Dimensions 8580*2880*2300mm 10750*3350*2300mm 15000*4018*2755mm

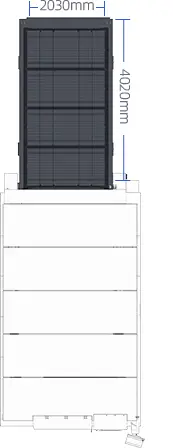

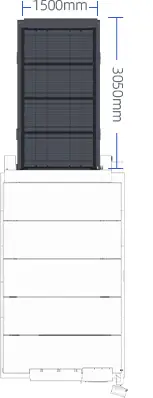

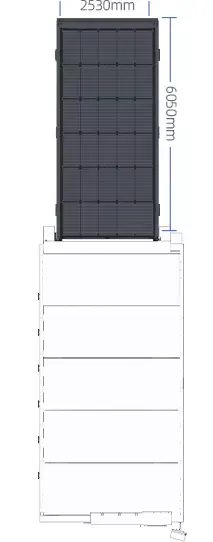

Working area 3000mm*1500mm 4000mm*2000mm 6000mm*2500mm
Repeat positioning accuracy ±0.02mm
Maximum speed 100m/min
Max. acceleration 1.2G
Voltage and frequency 380V 50Hz/60HZ

Industry Applications

LF3015GA fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power laser cut machine for processing.
Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
