SA Series Dual-Gantry Ultra-Wide Format Fiber Laser Cutting Machine

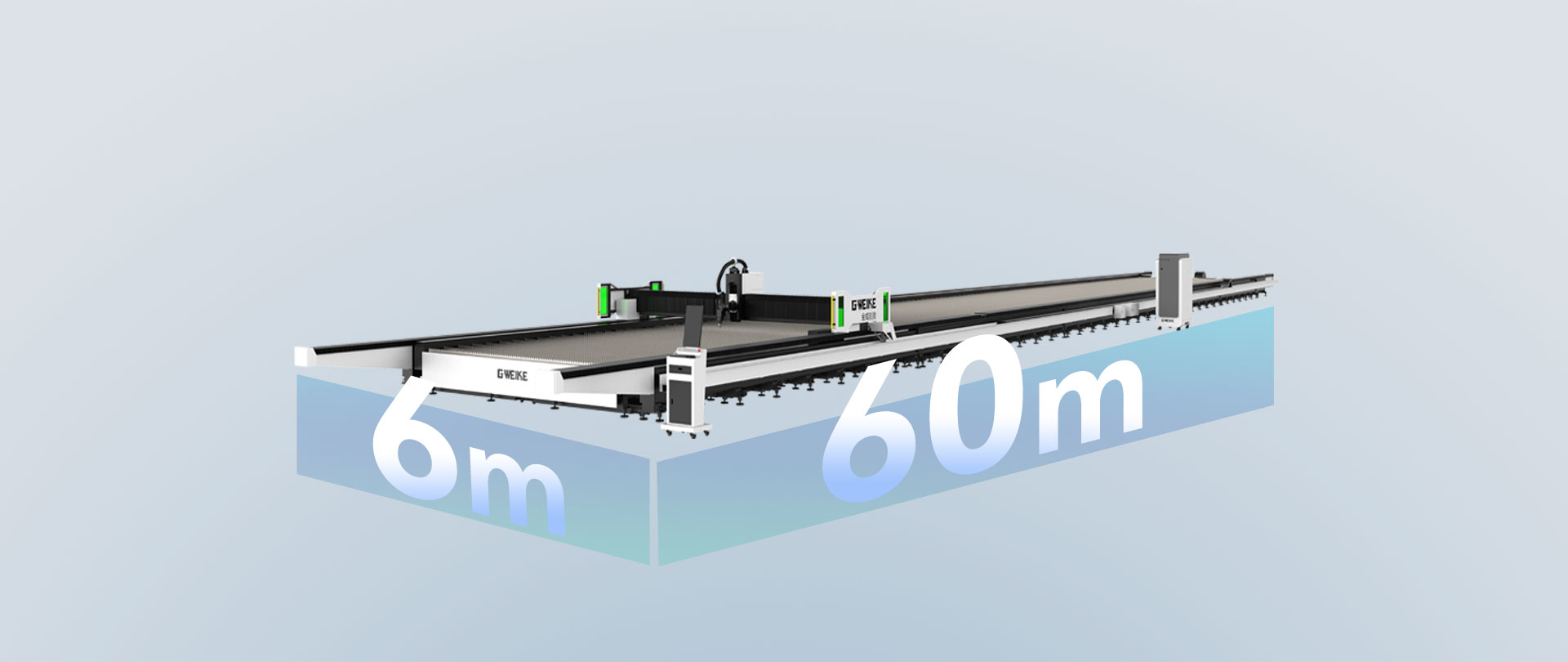

Ultra-wide & ultra-long cutting platform (up to 6×60 m)

Linear multi-track design ensures smooth, stable high-speed motion.Maximum width 6 m, length up to 60 m.Optional dual-beam, dual-head configuration allows simultaneous cutting without interference — ideal for oversized sheet processing.

Excellent Dynamic Performance

Y-axis dual-rail drive enhances dynamic stability,Max acceleration: 1.4 G;
max traverse speed: 140 m/min — ensuring high throughput and precision.

Multi-Level Safety Protection

Front and rear safety light curtains guard operator safety.HD intelligent monitoring enables end-to-end visual supervision of cutting

“Follow-blow + matrix extraction”fume removal system

Three high-power axial fans move with the gantry to provide directed airflow.Fixed cutting table uses zoned extraction to remove smoke simultaneously, achieving superior dust control.

0–45° Bevel Cutting Capability

Innovative AB dual-swing head supports various bevel types (X, Y, V).
Meets multi-angle bevel cutting requirements from 0° to 45°

Split-type bed and platform design

Separating the load-bearing platform from the base reduces stress and extends service life;
the integrated spliced bed ensures long-term precision and rigidity under high-power operation.

Vision-Based Scrap Detection

Accurate contour extraction of irregular remnants
Batch scanning and one-click intelligent nesting
Productivity increased by 200%
Material yield improved by 175%
Helping customers enhance efficiency and reduce production costs

Sample Display

Typical Applications

Agricultural machinery, Steel structure fabrication, Transmission towers, Shipbuilding, Mining machinery, Sheet metal processing, Heavy mechanical equipment, Construction machinery

Technical Parameters


	GKS14040SA SA Series	GKS40040SASA Series	GKS60060SASA Series
	14000*4000mmWorking Area (mm)	40000*4000mmWorking Area (mm)	60000*6000mmWorking Area (mm)
135000W/80000W/60000W/ 40000W/30000WLaser Power (W)	135000W/80000W/60000W/ 40000W/30000WLaser Power (W)	135000W/80000W/60000W/ 40000W/30000WLaser Power (W)
0.1/10m＆0.05/5m Positioning Accuracy	0.1/10m＆0.05/5m Positioning Accuracy	0.1/10m＆0.05/5mPositioning Accuracy
0.05mmX/Y-axis Repeat Positioning Accuracy	0.05mmX/Y-axis Repeat Positioning Accuracy	0.05mmX/Y-axis Repeat Positioning Accuracy
100--140m/min X/Y-axis Maximum Travel Speed	100--140m/minX/Y-axis Maximum Travel Speed	100--140m/min X/Y-axis Maximum Travel Speed
1G--1.4G Acceleration	1G--1.4GAcceleration	1G--1.4G Acceleration
