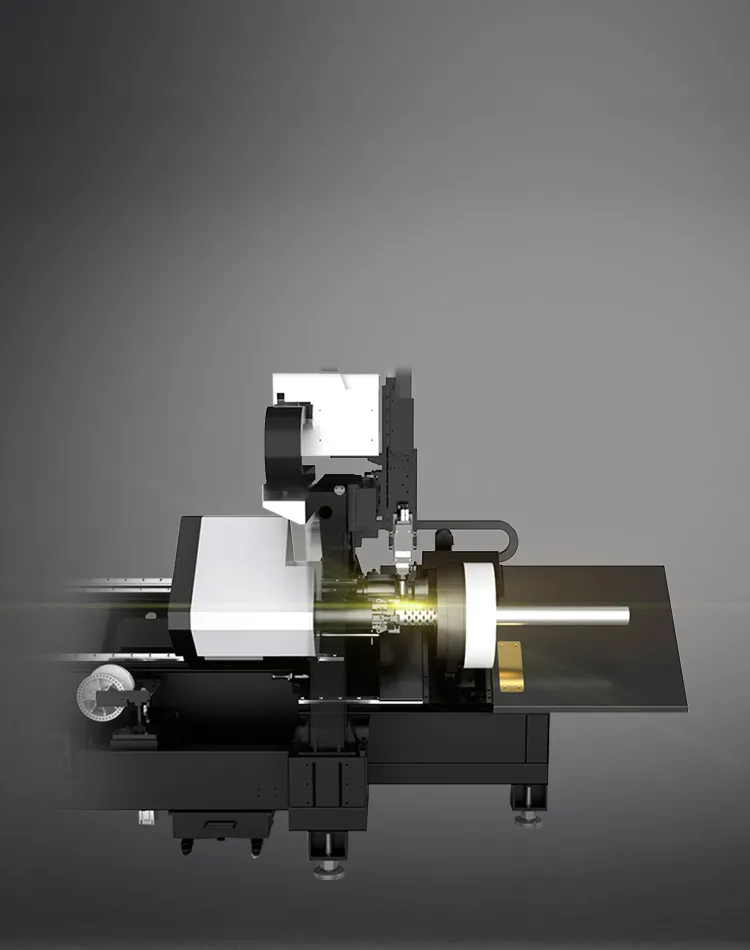

Full-mobility front chuck,
save materials and efforts

With the front chuck offsiding movement, the two chucks can achieve short tailing cutting. The double chuck clamping makes the final cut more stable. Tailing can be as short as 30mm.

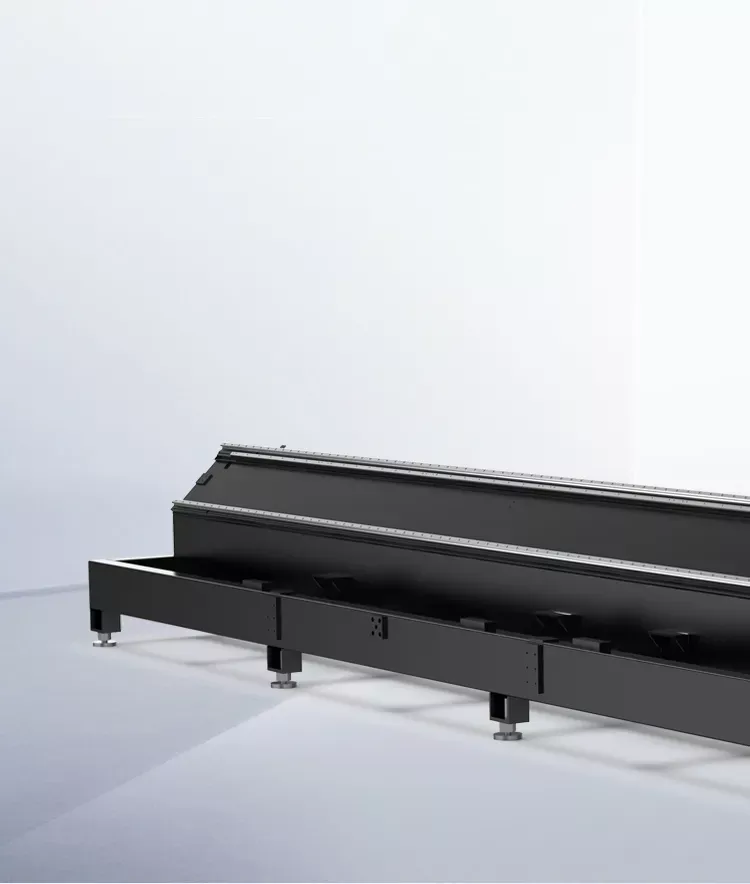

Side-mounted lathe bed,
stable and smooth operation

Lowering the center of gravity contributes a stable structure.
Smoother loading and unloading process and easier operation and maintenance.

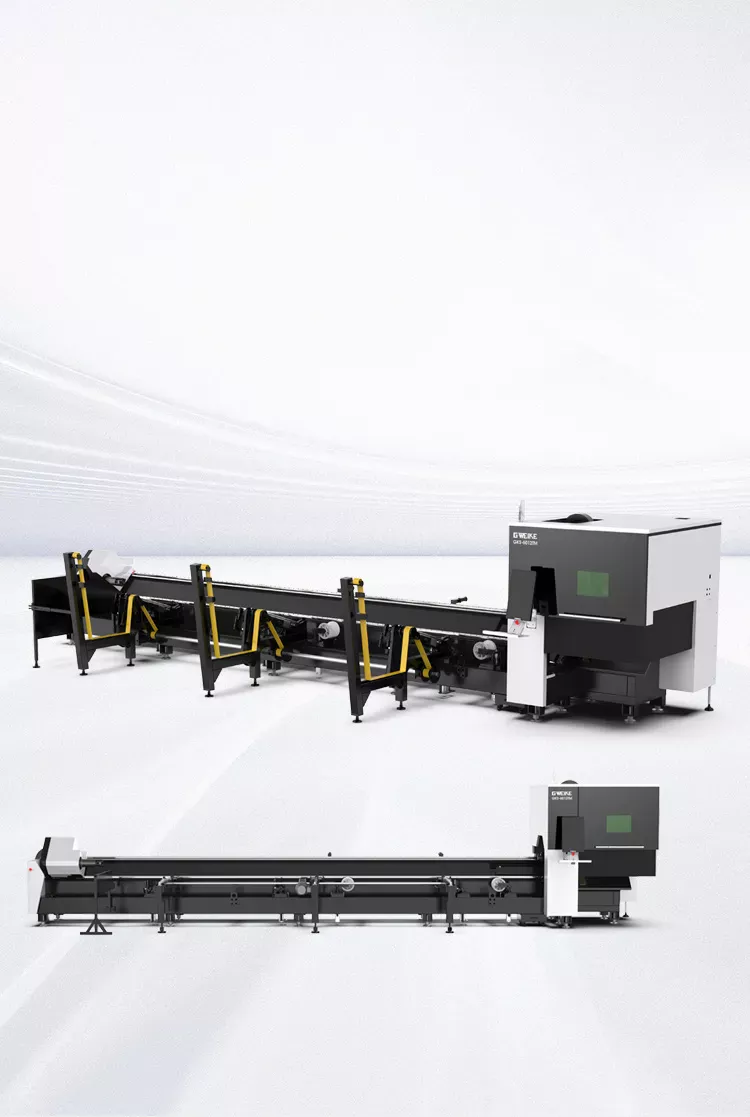

Modular design,
flexible loading options

Offers semi-automatic and fully automatic loading modules
and other module options for customers to choose flexibly.
Supports automatic loading of multiple pipes
Reduces high dependence on manual labor.

Square chuck, wider cutting range

Adopting square precision pneumatic chucks, the maximum square tube side length is equal to the maximum round tube diameter, making it applicable to a wider processing range.

Technical Parameters

6012TM TM Series
6016TMTM Series
6024TMTM Series
6028TMTM Series
1500W-3000W Laser power 1500W-3000W Laser power 1500W-6000W Laser power 1500W-6000W Laser power
Round tube Φ10-Φ120mm
Square tube 口10X10-口120X120mmClamping range
Round tube Φ10-160mm
Square tube 口10-160mmClamping range
Round tube Φ20-240mm
Square tube 口20-240mmClamping range
Round tube Φ20-280mm
Square tube 口20-280mmClamping range
200r/min Max. rotation rate 200r/min Max. rotation rate 100r/min Max. rotation rate 100r/min Max. rotation rate
6500mmEffective cutting length 6500mmEffective cutting length 6500mmEffective cutting length 6500mmEffective cutting length
80KGSingle pipe load-bearing 80KG Single pipe load-bearing 400KG Single pipe load-bearing 800KG Single pipe load-bearing
120 Pneumatic ChuckChuck structure 160 Pneumatic ChuckChuck structure 240 Pneumatic ChuckChuck structure 280 Pneumatic ChuckChuck structure

Application

Office furniture, Medical equipment, Hardware and sanitary ware, Guardrail industry,Pipeline industry, Guardrail industry, Office desks and chairs, Fitness equipment
