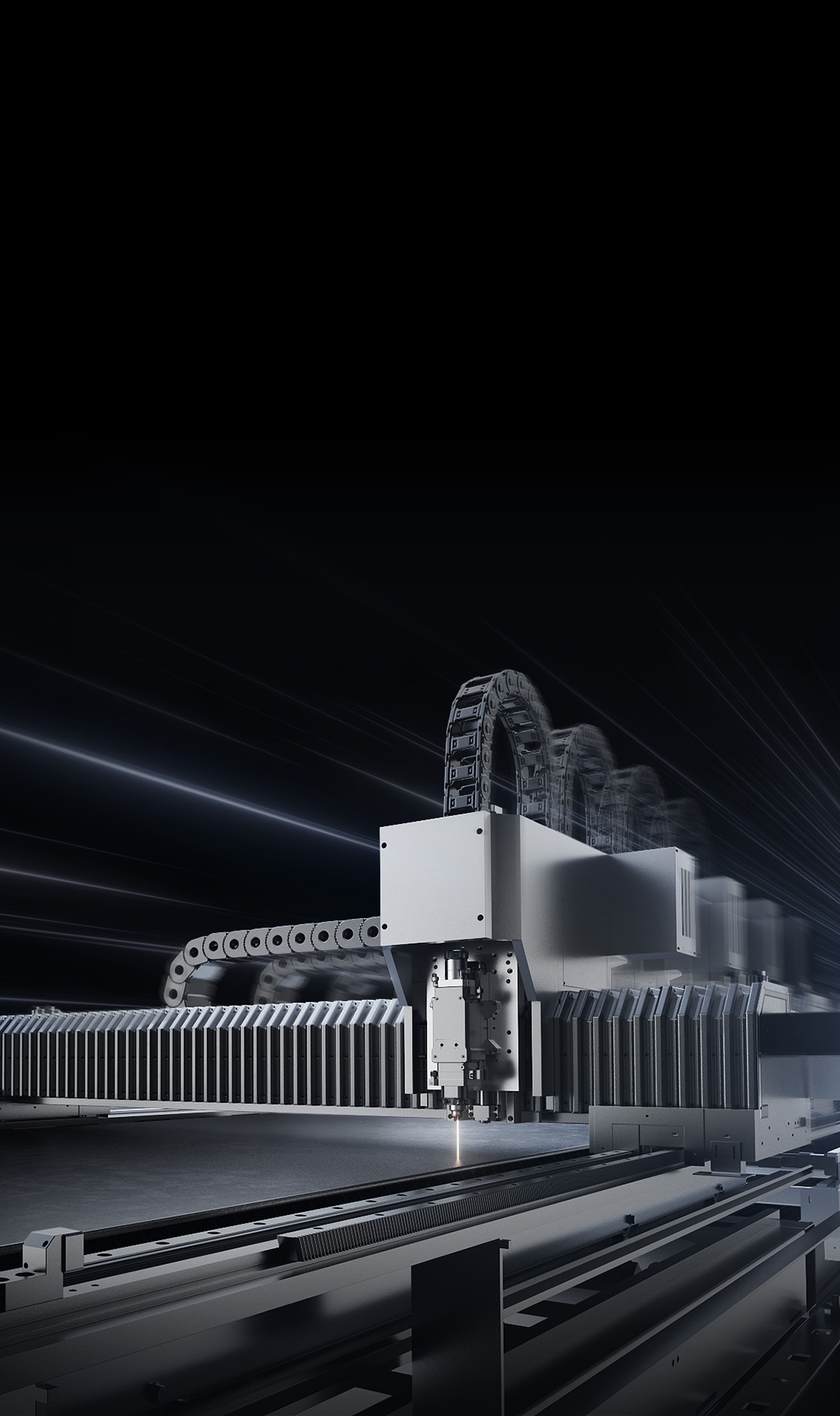

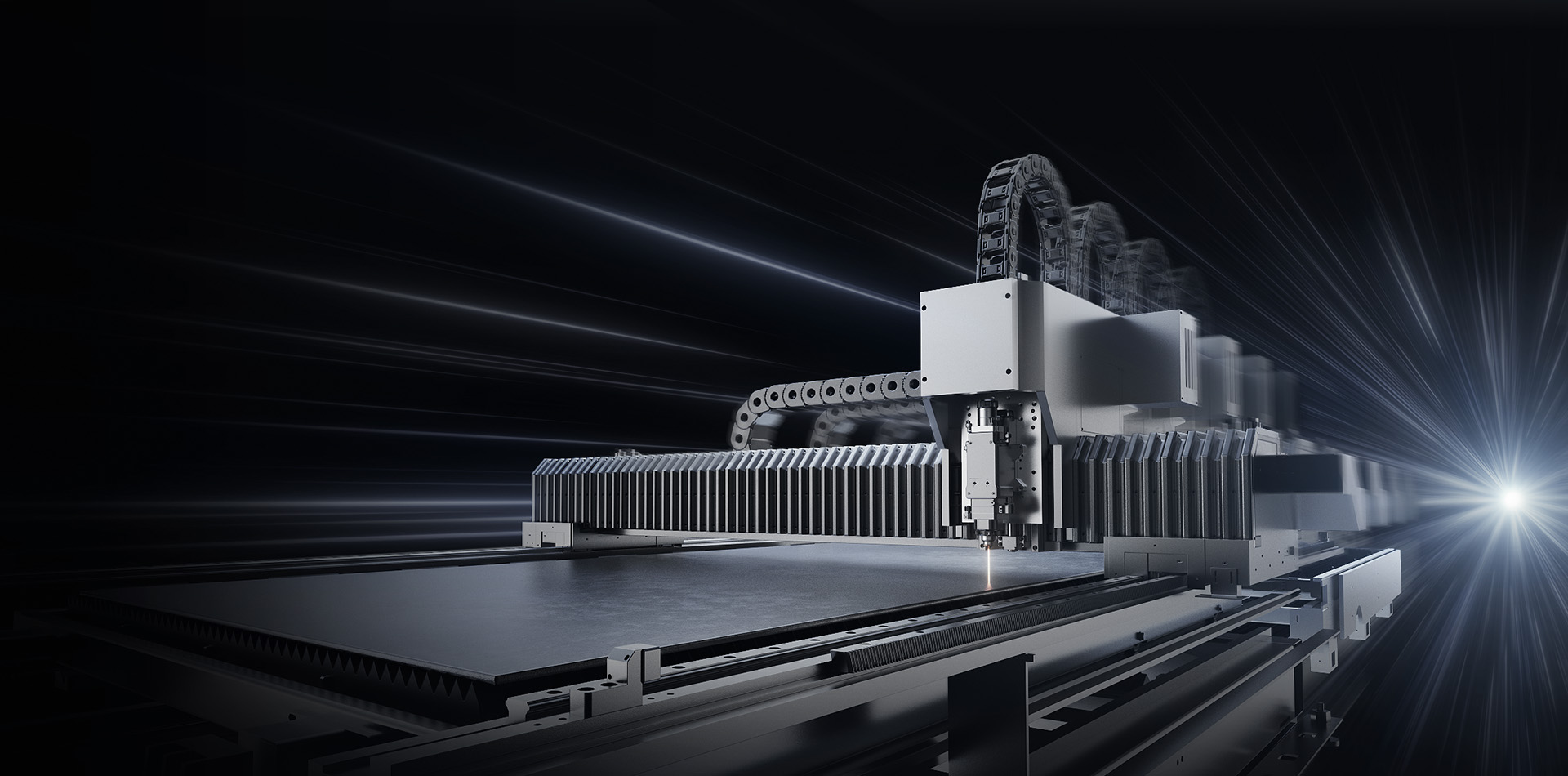

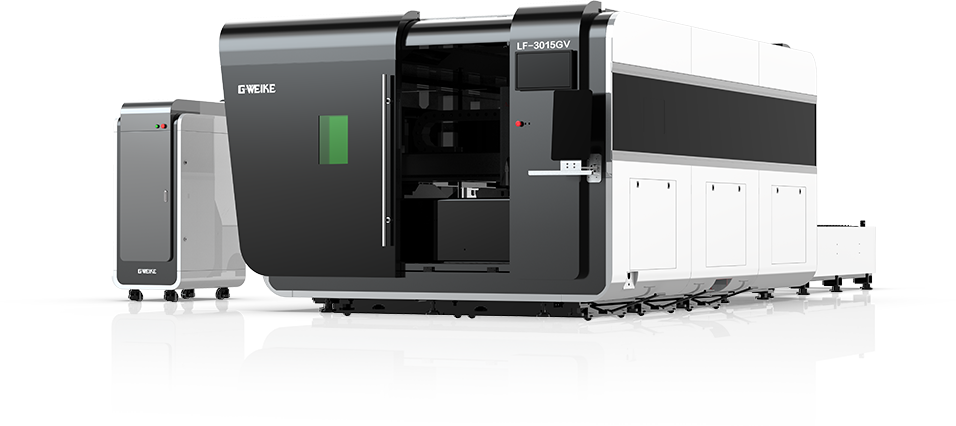

Ultra-High-Speed Fiber Laser Cutting Machine for Sheet Metal

3G Ultra-High-Speed Fiber Laser Cutting

The optimized combination of 3G acceleration and 10 Hz low-pass filtering delivers blistering rapid traverse performance up to 200 m/min, enabling fast start-stop and ultra-precise high-speed movement.

Max Acceleration

10Hz

Low-Pass Filter

200m/min

Max Rapid Speed

Optimized Cutting Paths Superior Sheet Metal Efficiency

Intelligently optimizes corner cutting paths to reduce idle travel and ineffective movement, boosting overall processing efficiency by over 50%. Efficiency gains become even more pronounced with complex geometries, allowing you to handle urgent orders with ease.

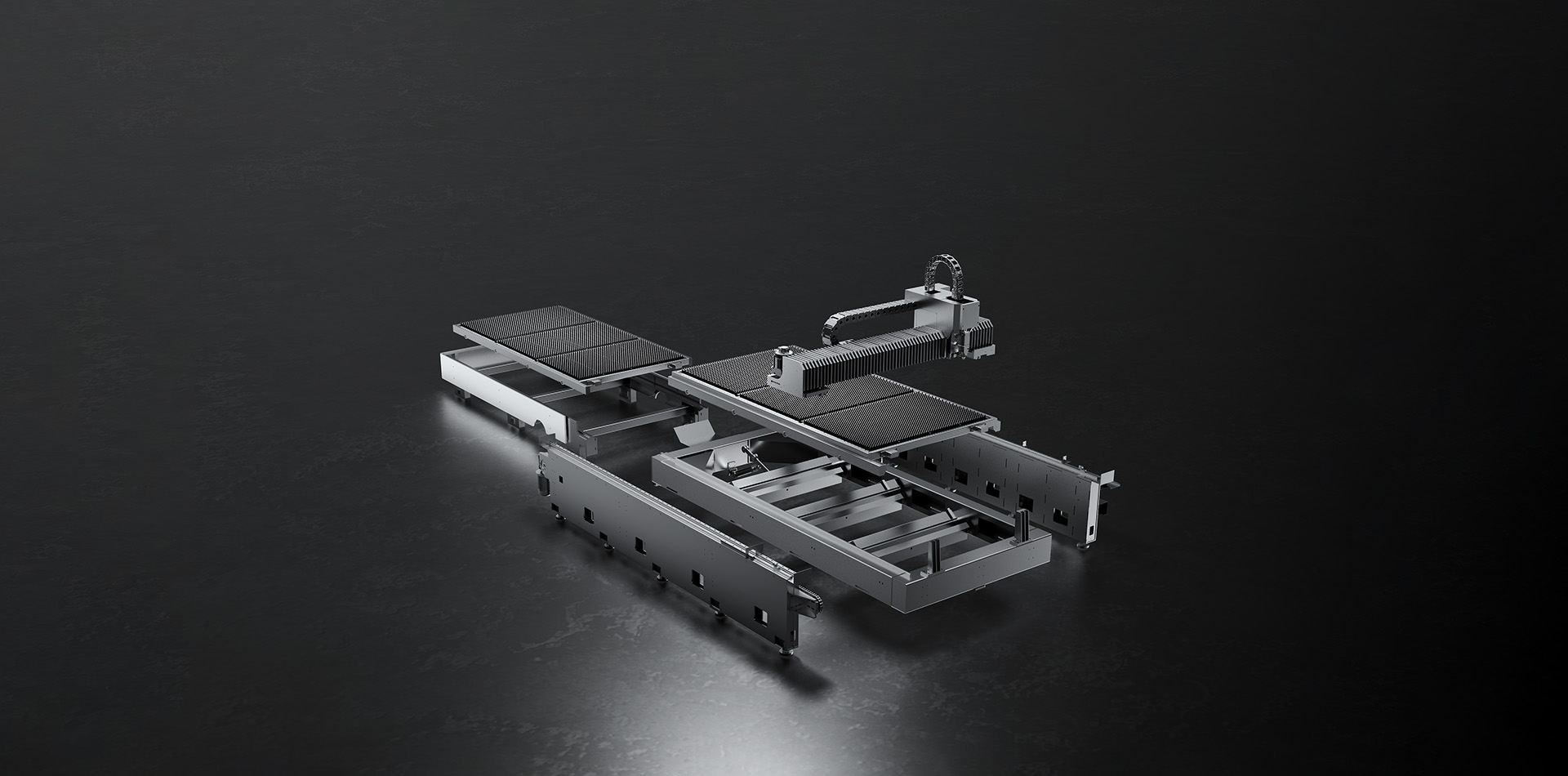

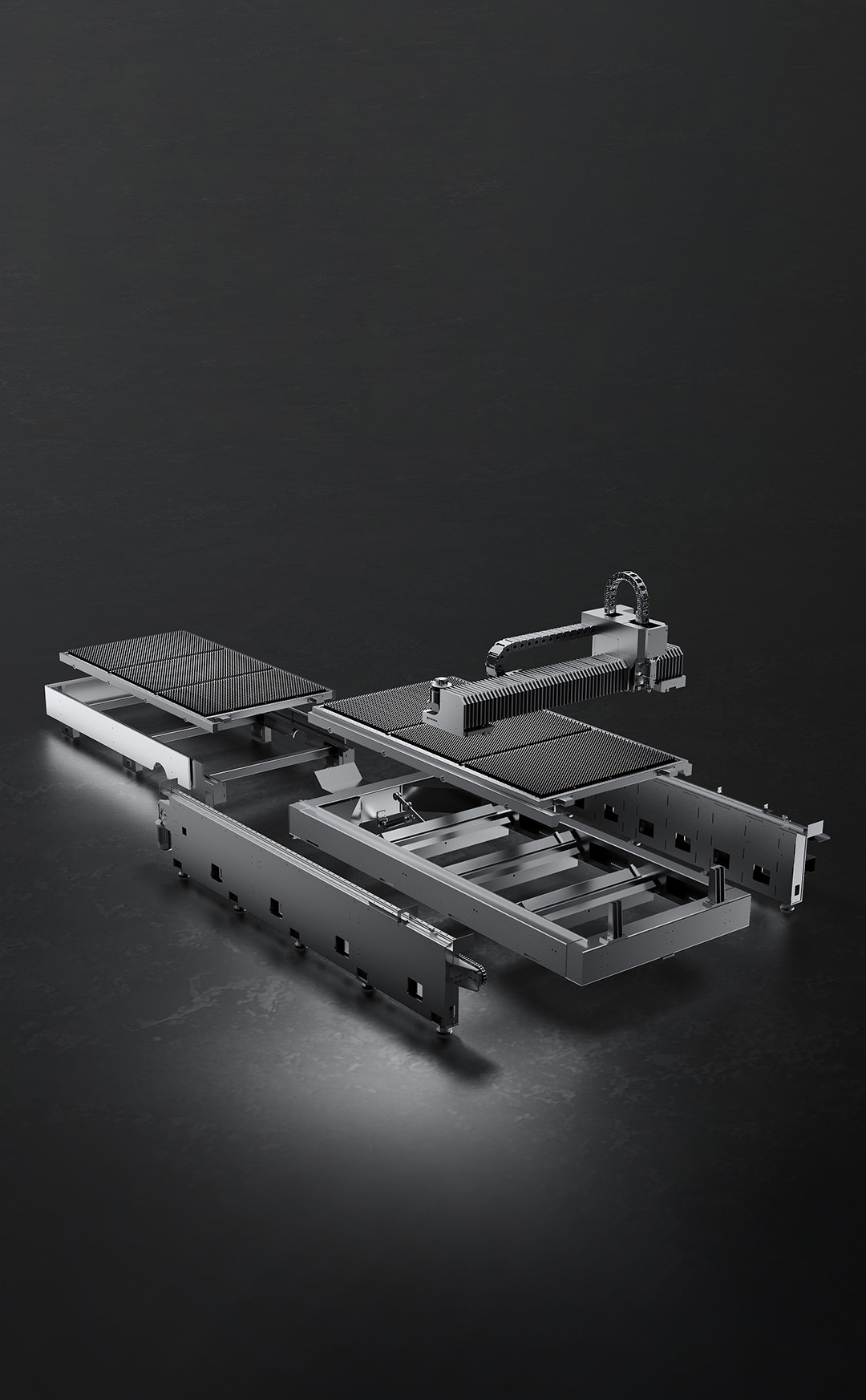

High-stability structure for ultra-high-speed laser cutting

High-Stability Structure for High-Speed Laser Cutting

Core components utilize a German-engineered structural design. From the machine bed to the beam and transmission system, every detail provides robust support for long-term, high-precision, stable operation.

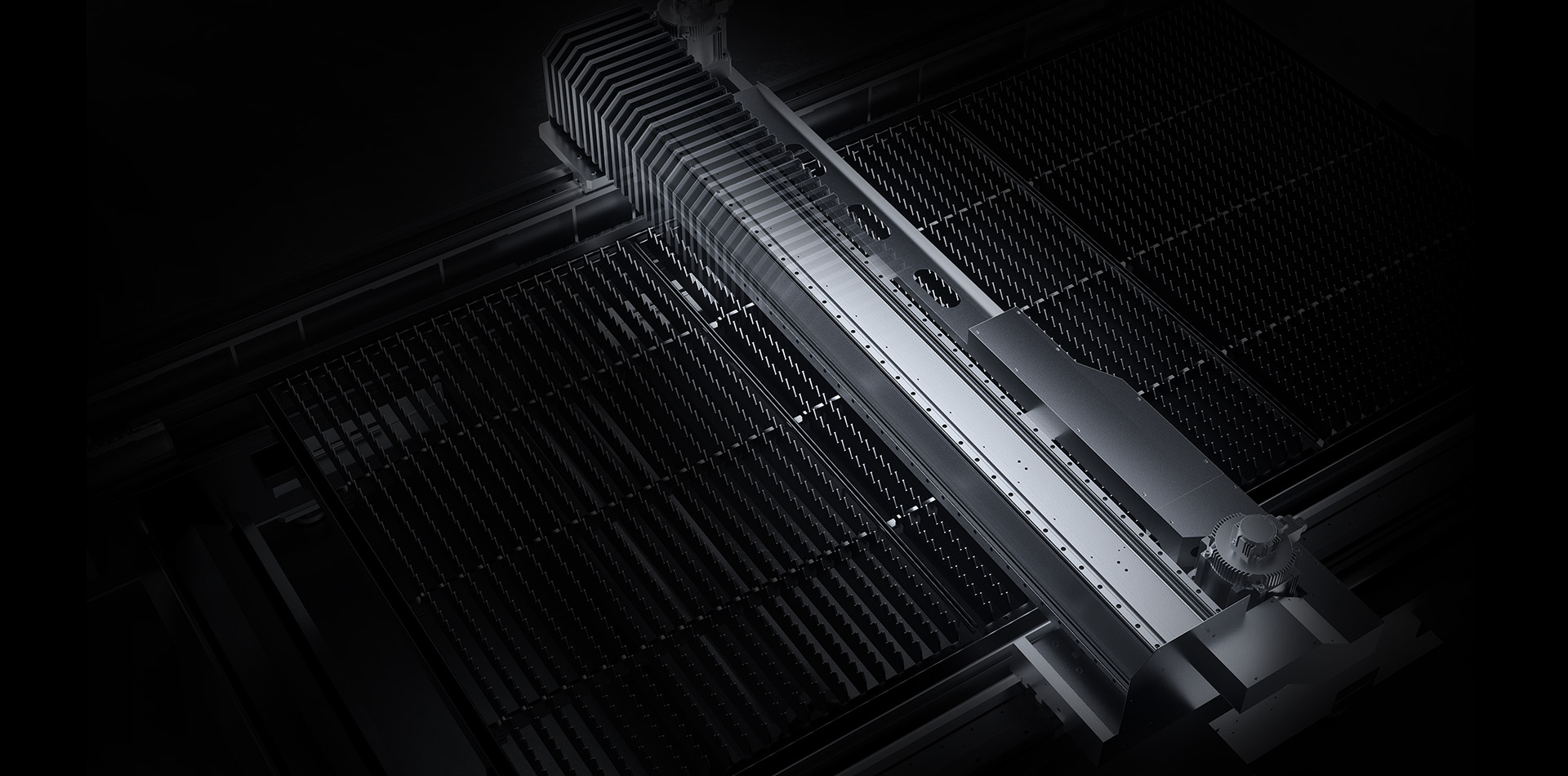

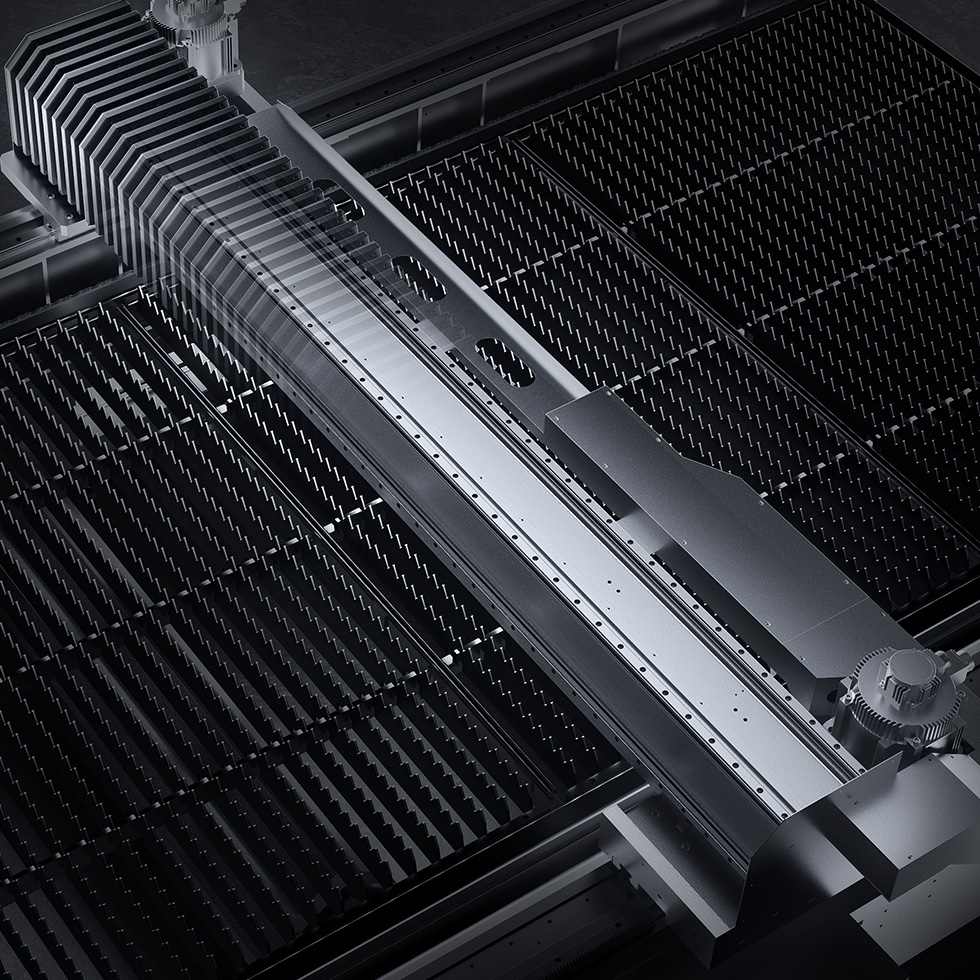

Lightweight hollow honeycomb beam for stable high-speed laser cutting

Lightweight Hollow Honeycomb Beam for High-Speed Stability

Featuring a high specific stiffness design via topology optimization, the beam delivers an 18% increase in torsional stiffness at the same weight and a 25% weight reduction at the same stiffness, ensuring outstanding stability during high-speed operation.

18%

Increase in torsional stiffness
at the same weight

25%

Weight reduction
at the same stiffness

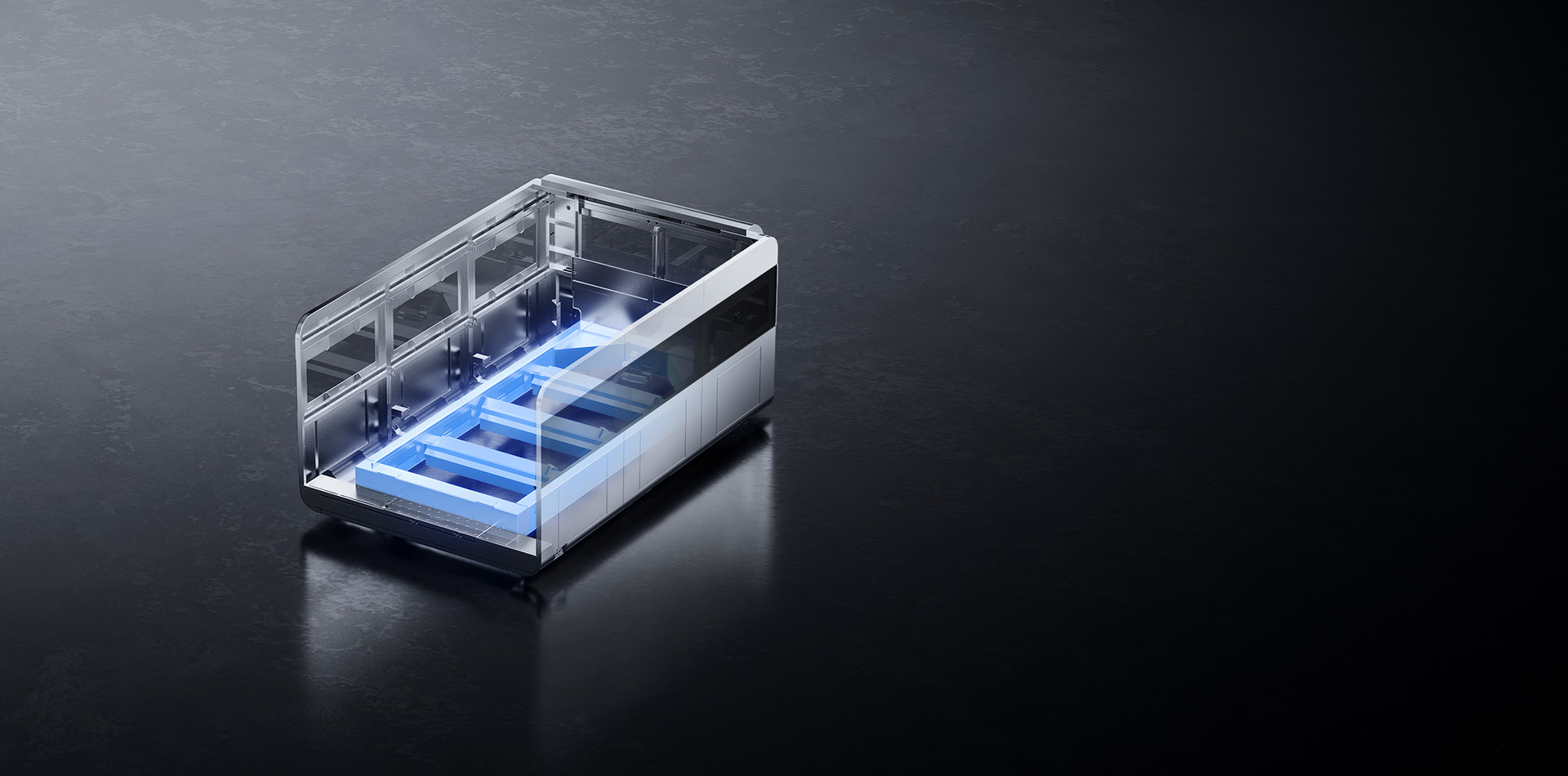

Low-center-of-gravity welded bed for high-speed sheet metal laser cutting

Low-Center-of-Gravity Integrated Welded Heavy-Duty Bed

Low-center-of-gravity bed design with widened side ribs on both sides significantly enhances bending and torsion resistance. Combined with a mortise-and-tenon structure integral welding process, it eliminates micro-deformation caused by stress release, providing a solid foundation for high-speed cutting.

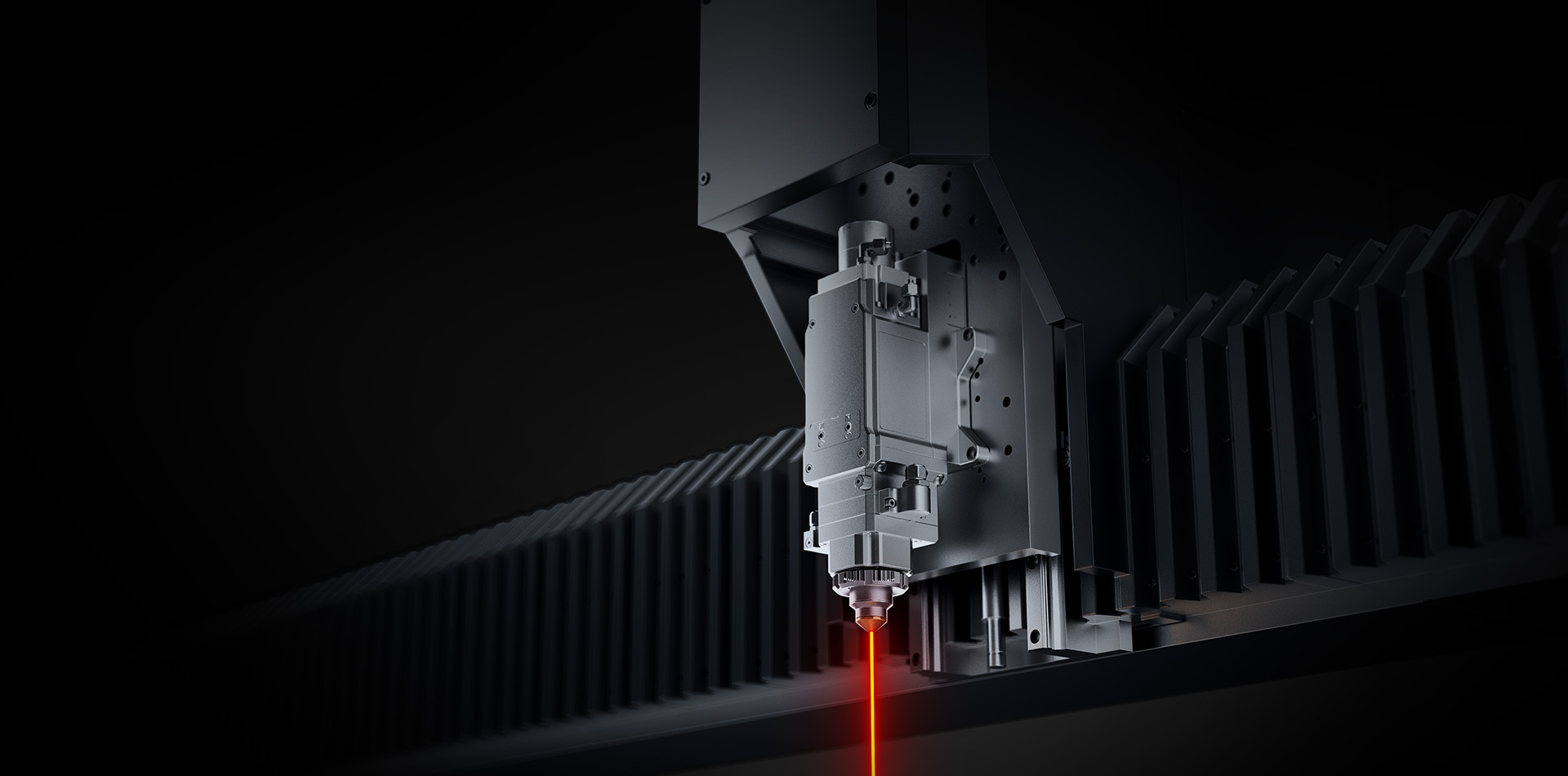

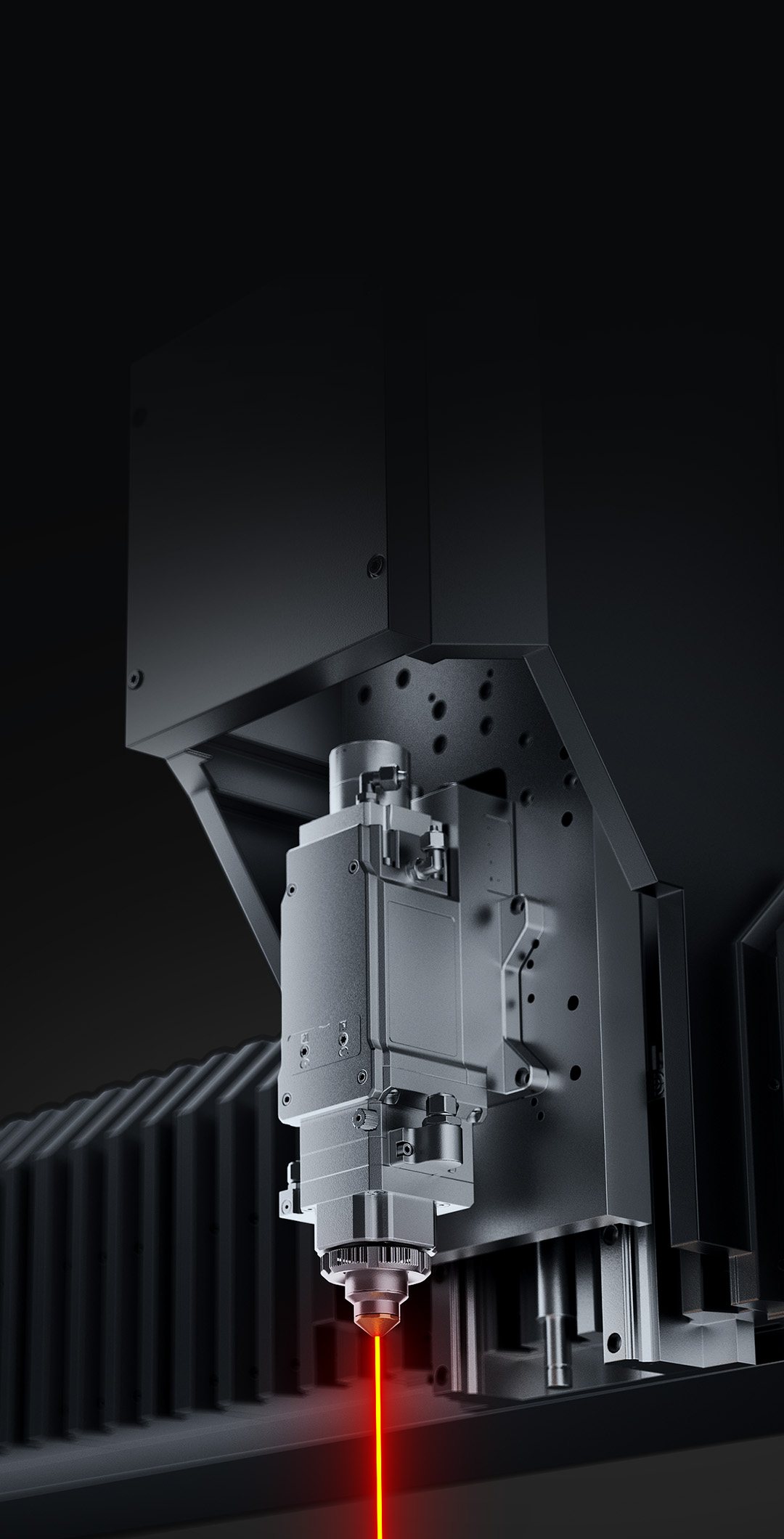

BLT Intelligent Laser Cutting Head

Narrower kerf, smaller heat-affected zone. A unique full-body water-cooling design covers over 90% of the optical path, effectively suppressing thermal stress deformation of the lens and ensuring consistent beam quality during continuous processing.

90%+

Full-body water-cooling design covers over
90% of the optical path

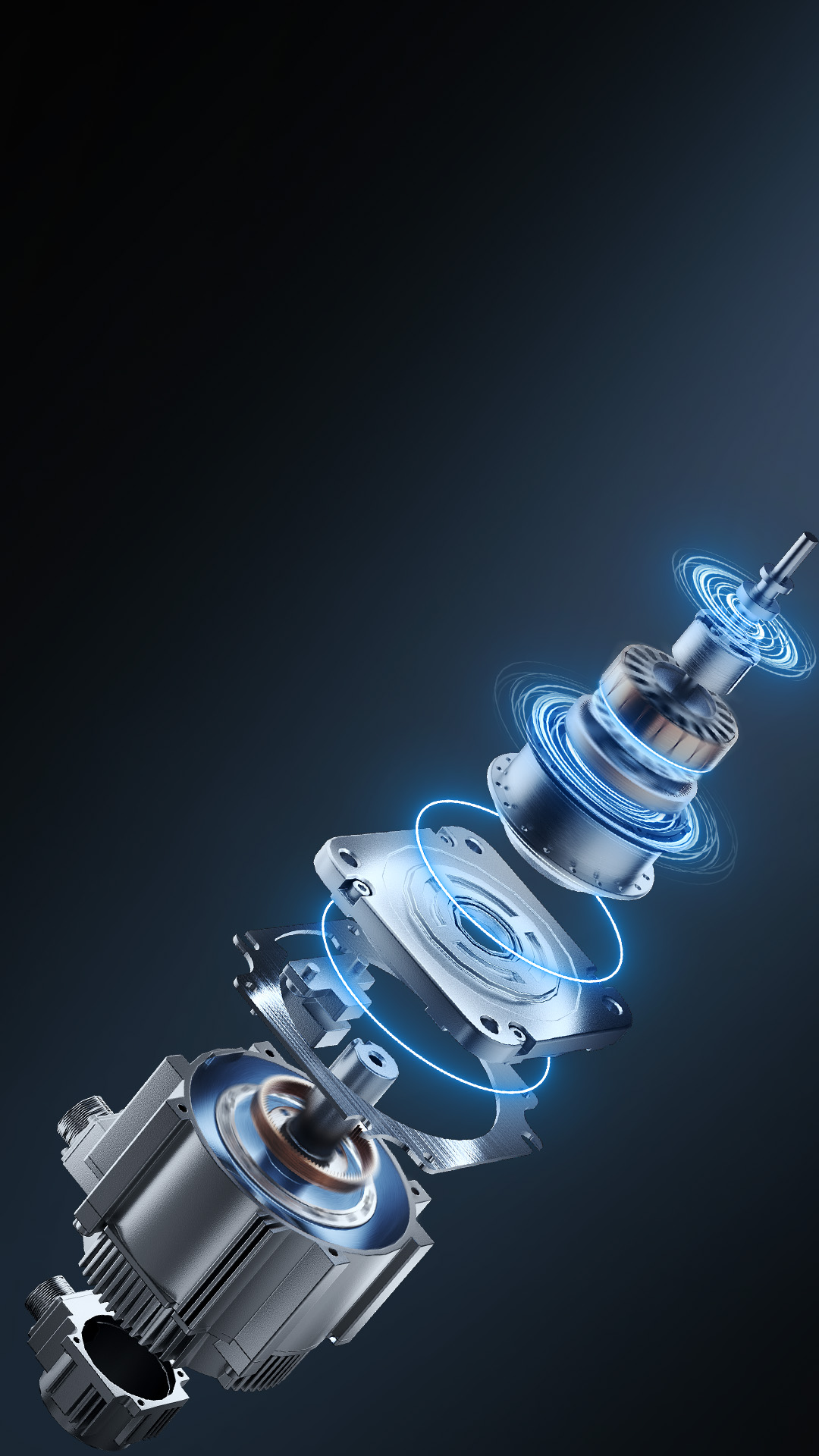

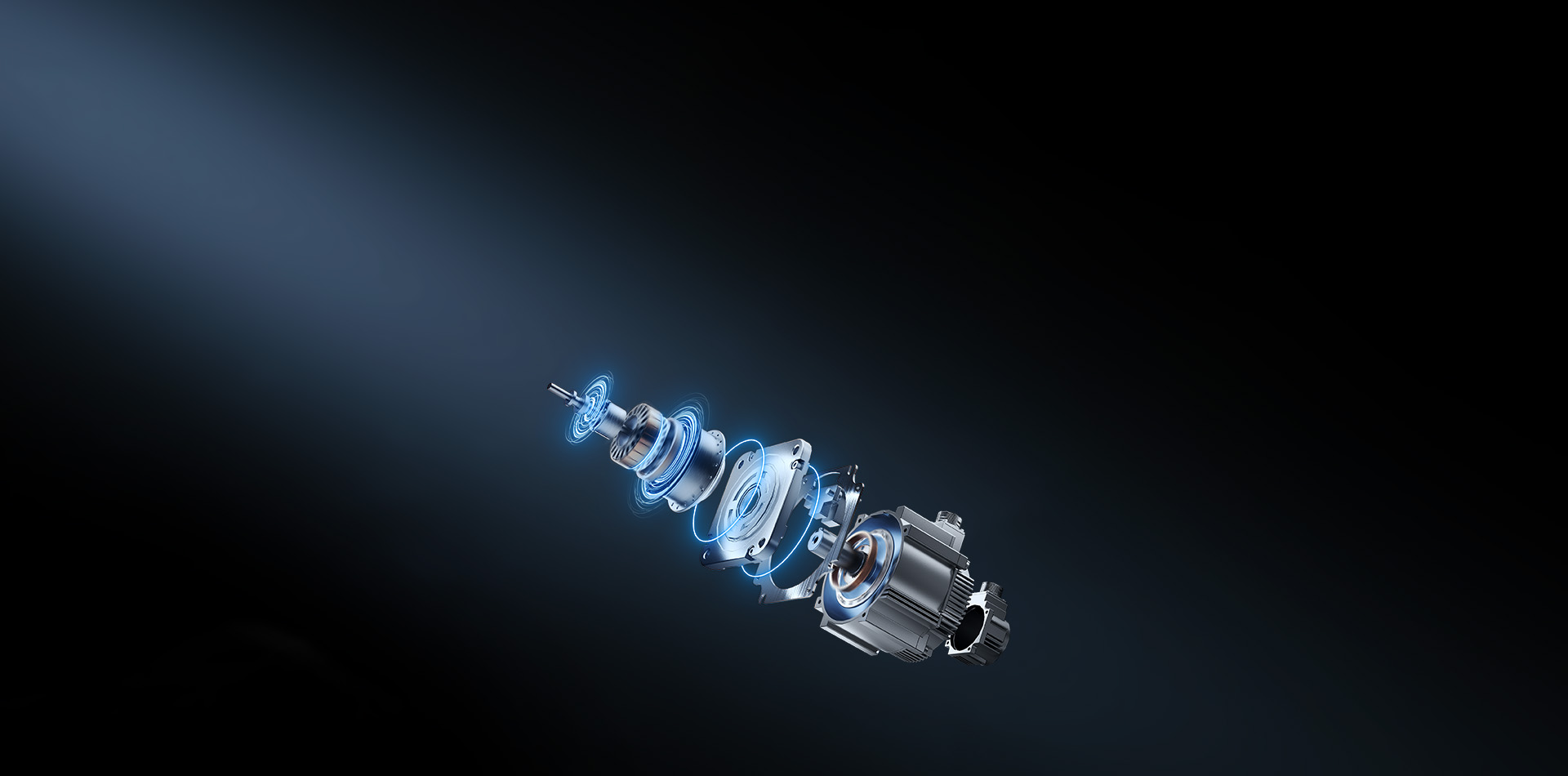

High-Speed High-Torque Servo Motor

With up to 300% torque output, 5000 rpm peak speed, and 136.6 kg·cm² of rotor inertia, this high-speed servo motor delivers instantaneous, precise response to the most complex cutting path variations.

300%

Torque output

5000rpm

Peak speed

136.6kg·cm²

Rotor inertia

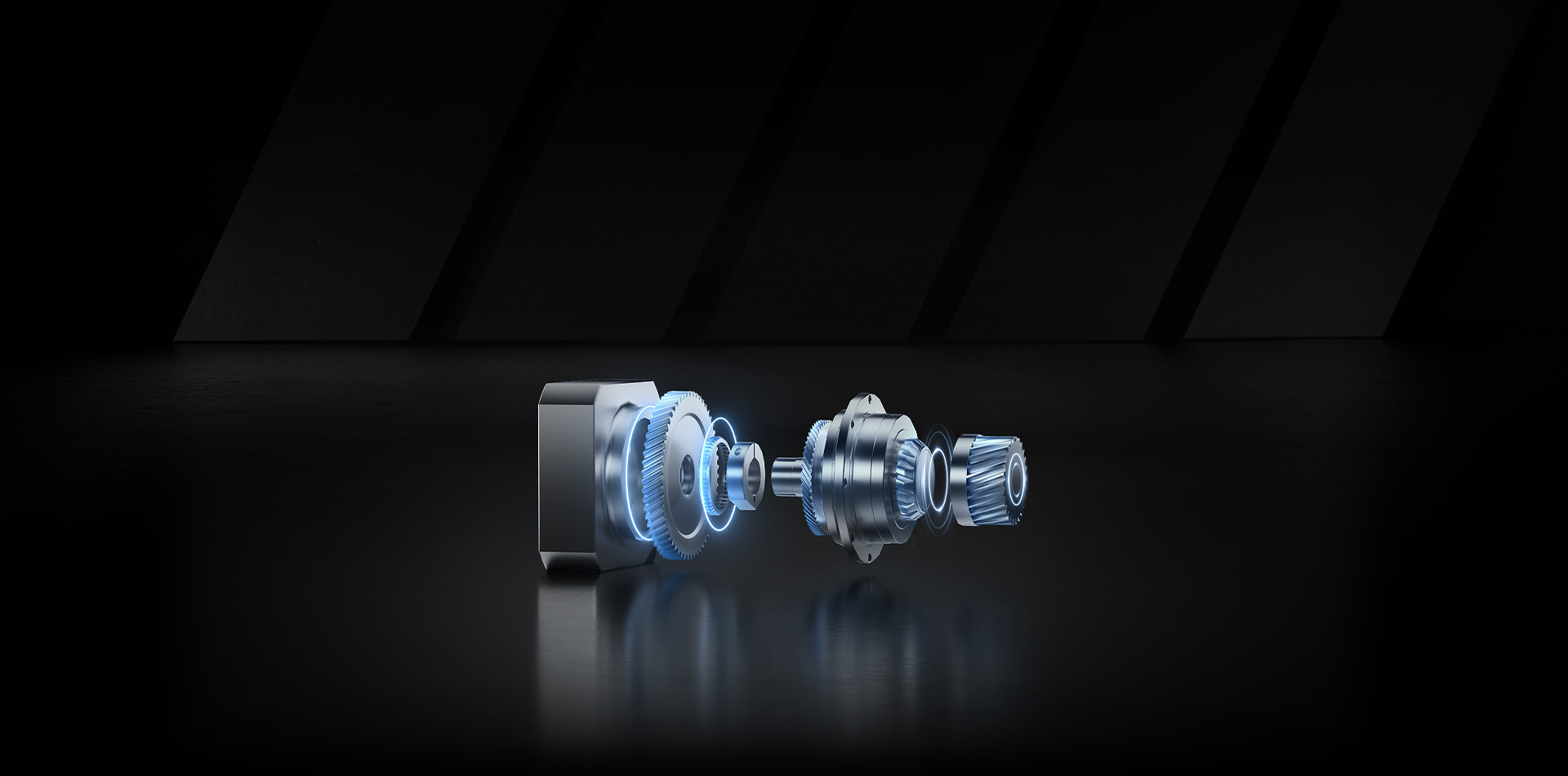

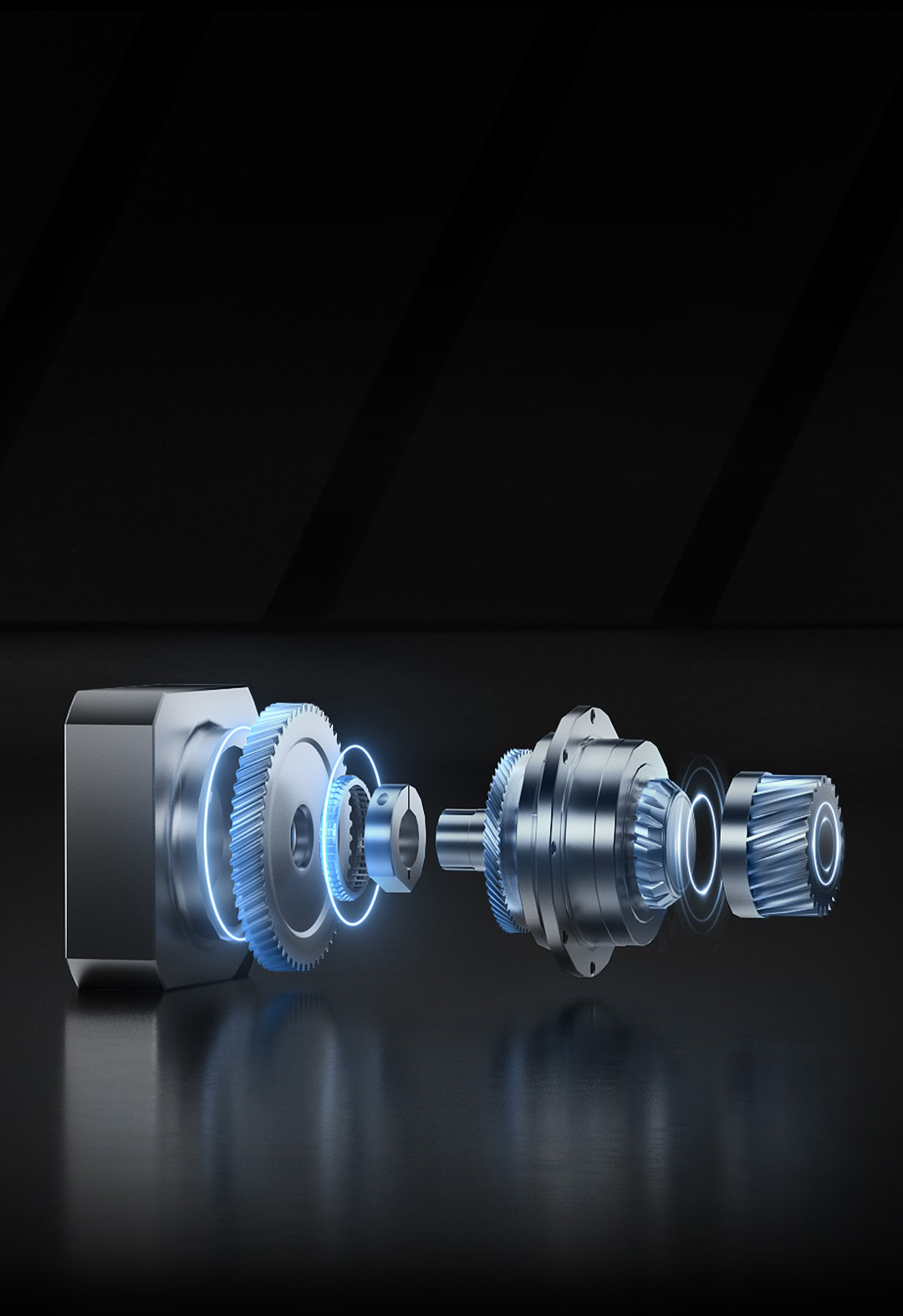

German-Style Integrated Design Reducer

The output shaft and gear are integrated and optimized. Key components are made of 42CrMo alloy steel , significantly improving the overall rigidity, wear resistance and service life of the transmission system.
