TF Series

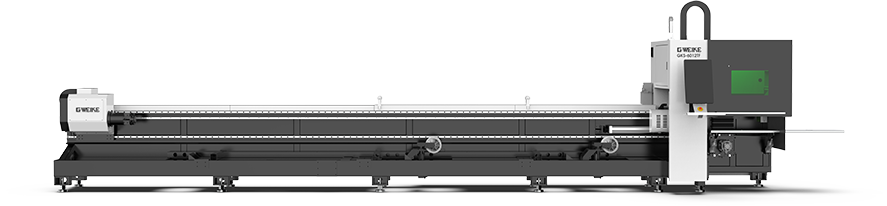

Side-Mounted Front Chuck Tube Laser Cutter

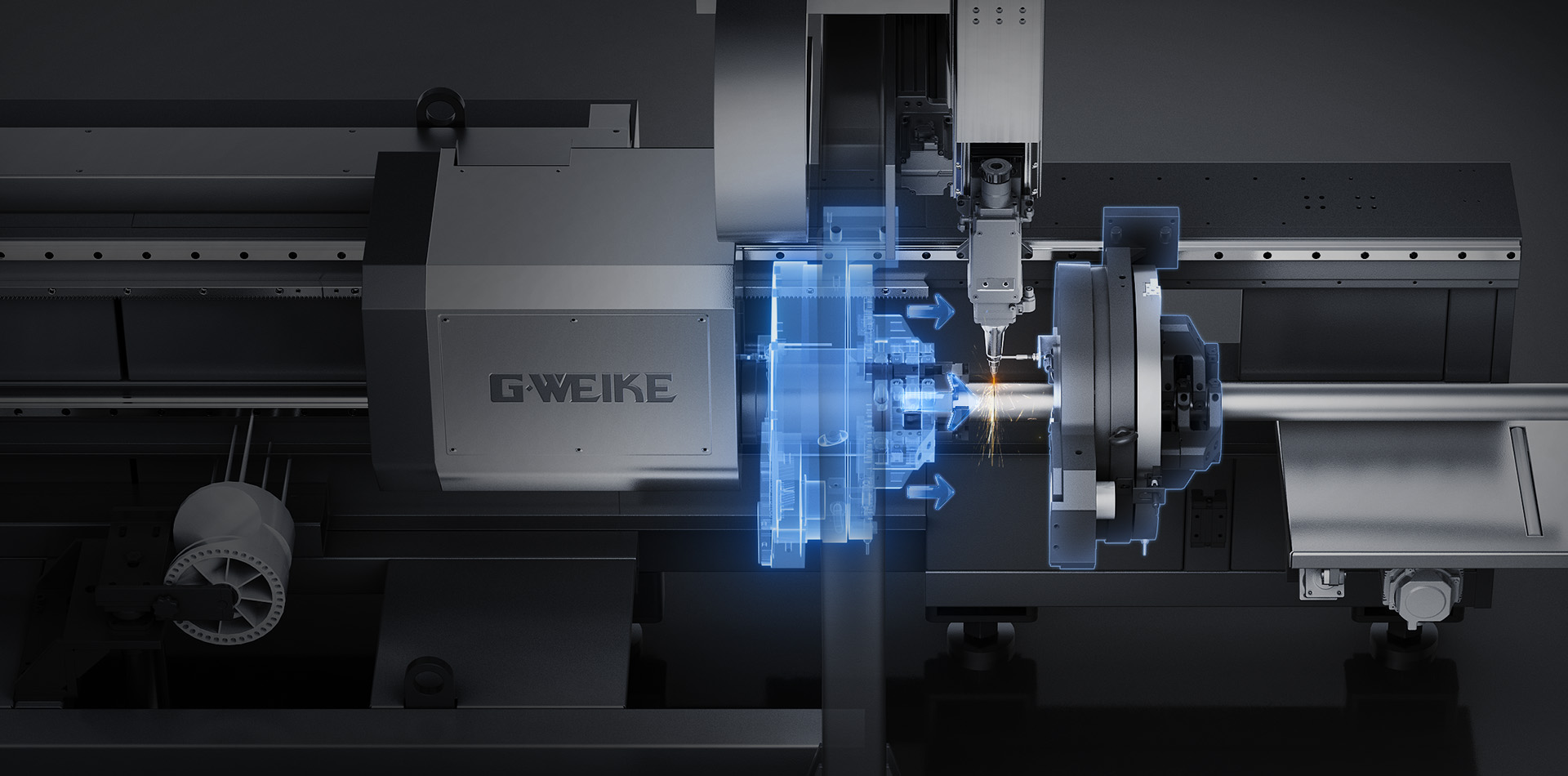

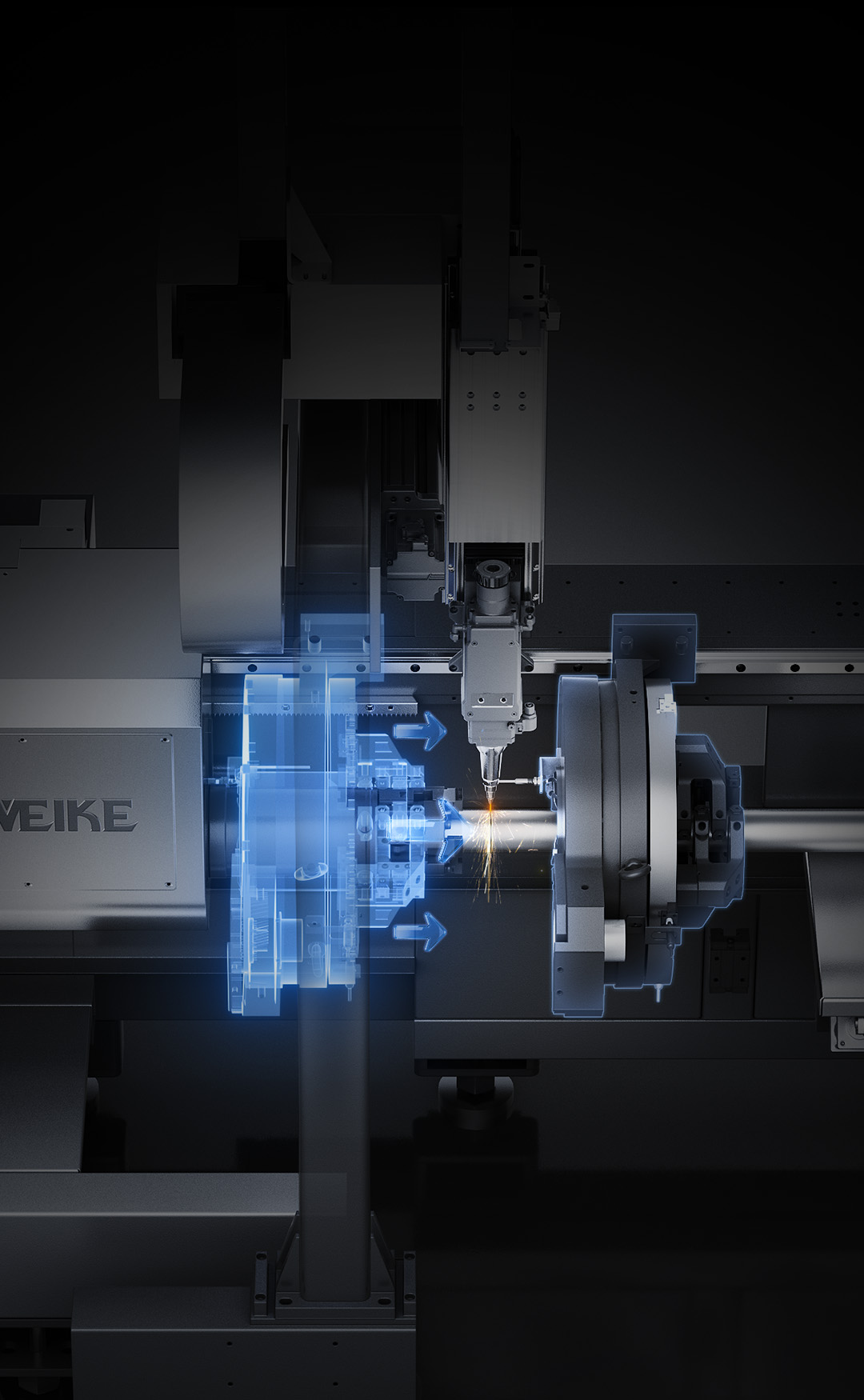

With front chuck offset, ultra-short remnant processing can be achieved for tubes of any length. The final cut is performed with dual-chuck clamping, ensuring more stable cutting.
Front Chuck Offset Cutting

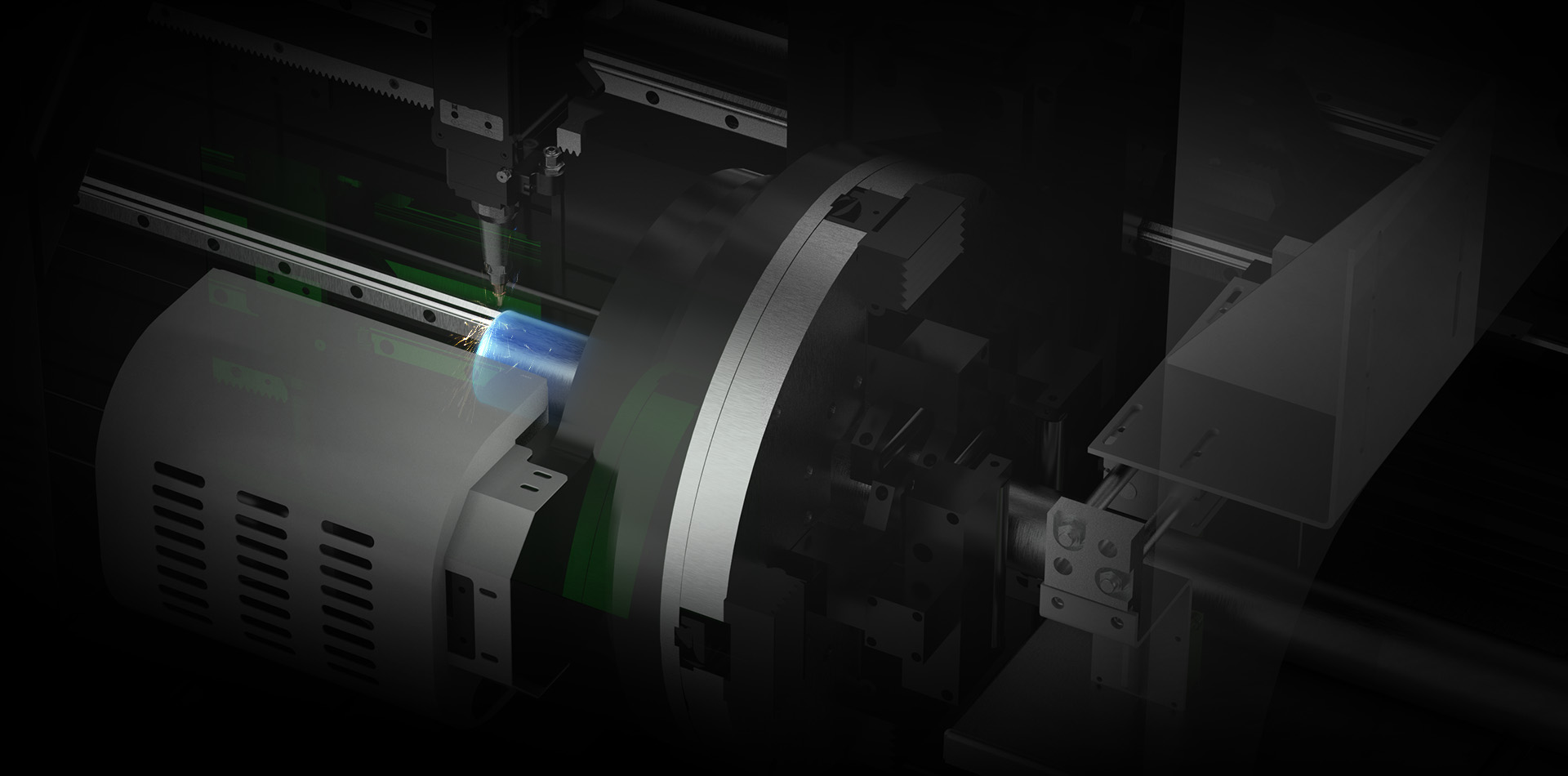

The minimum remnant length can be as low as 30 mm. An optional servo-driven auxiliary gripper enables zero-remnant cutting.
The minimum
remnant length
An optional servo-driven
auxiliary gripper

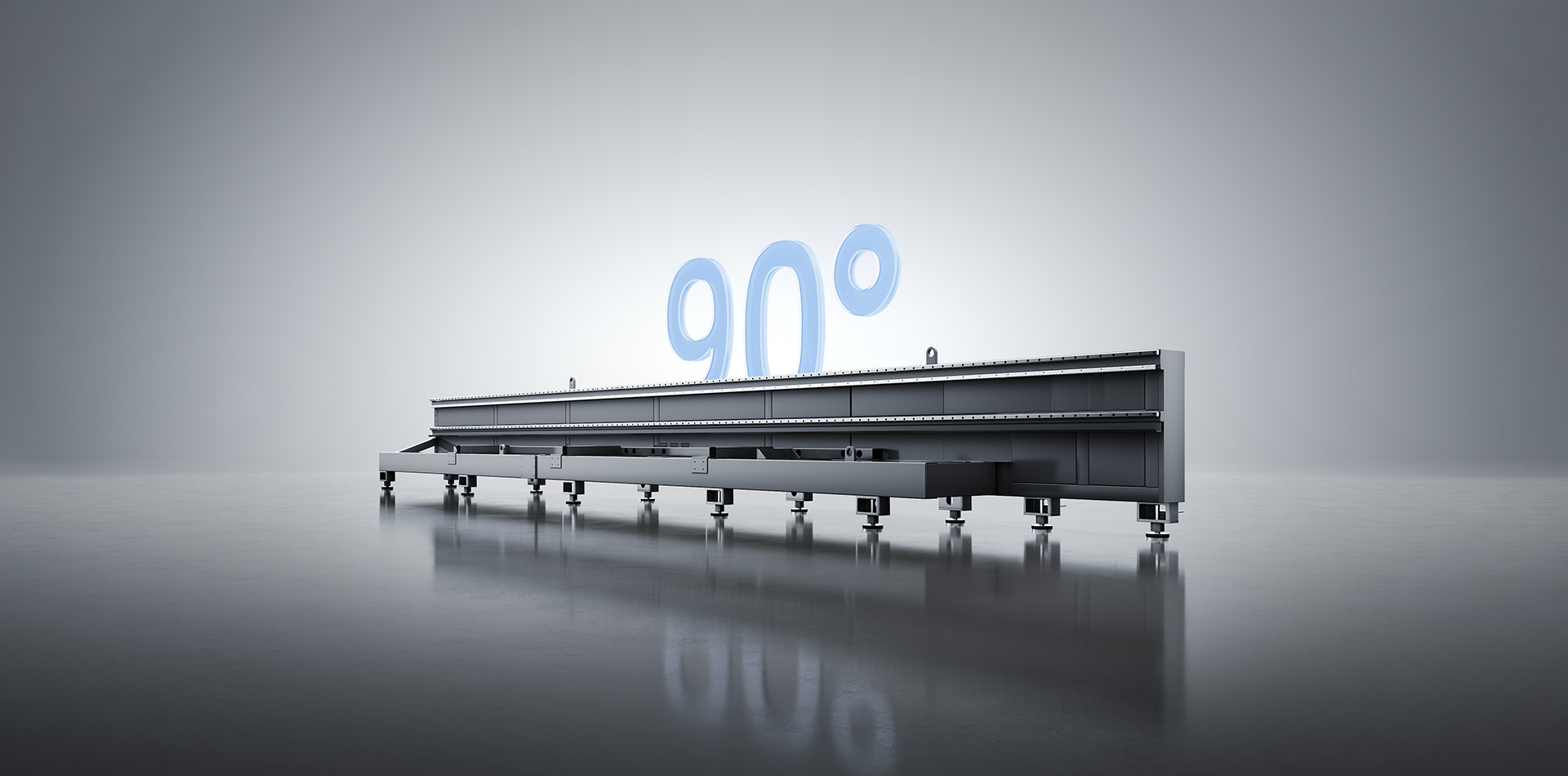

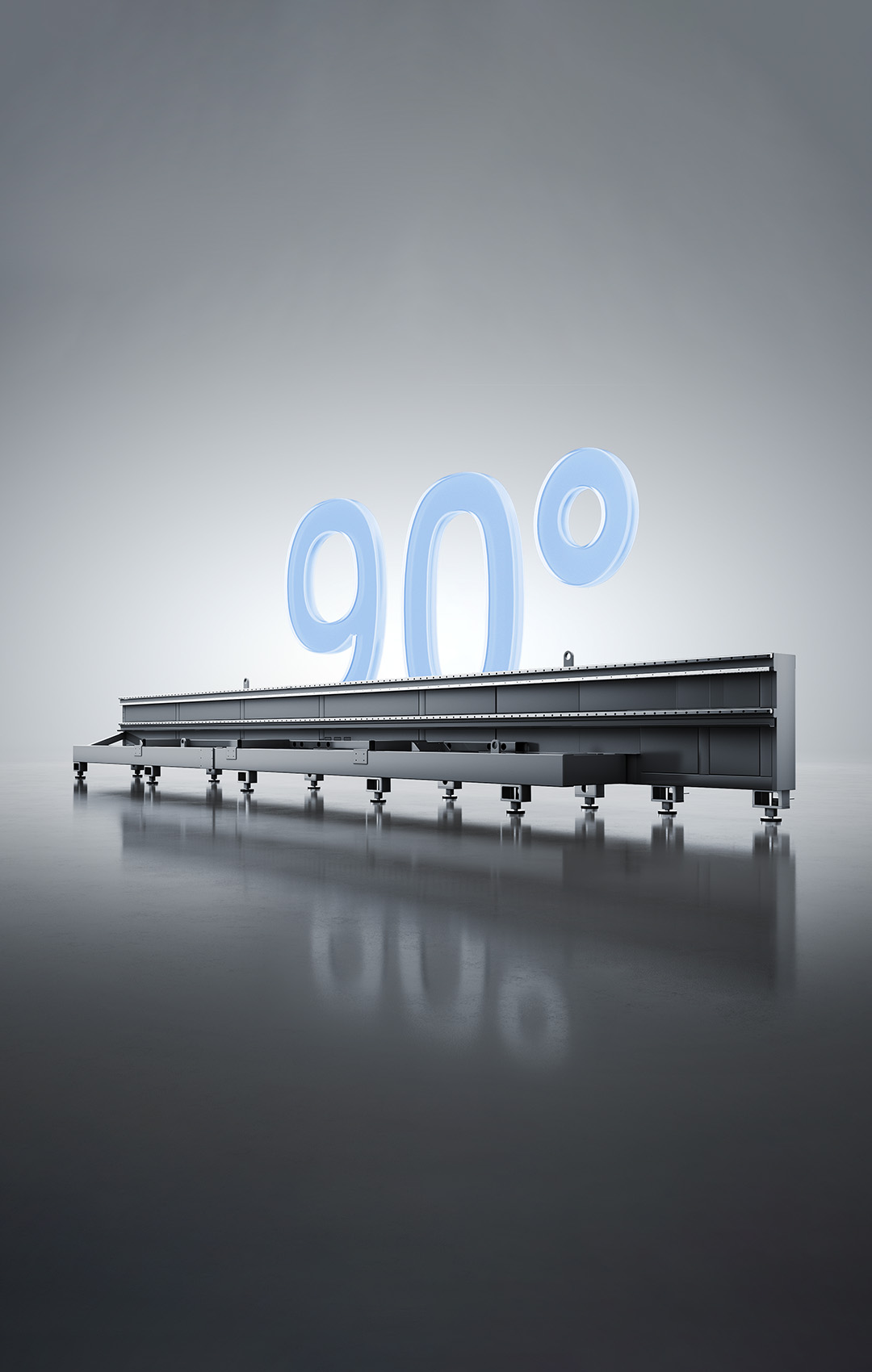

Lowering the center of gravity of the machine bed results in more stable cutting, more convenient loading and unloading, and easier operation and maintenance.

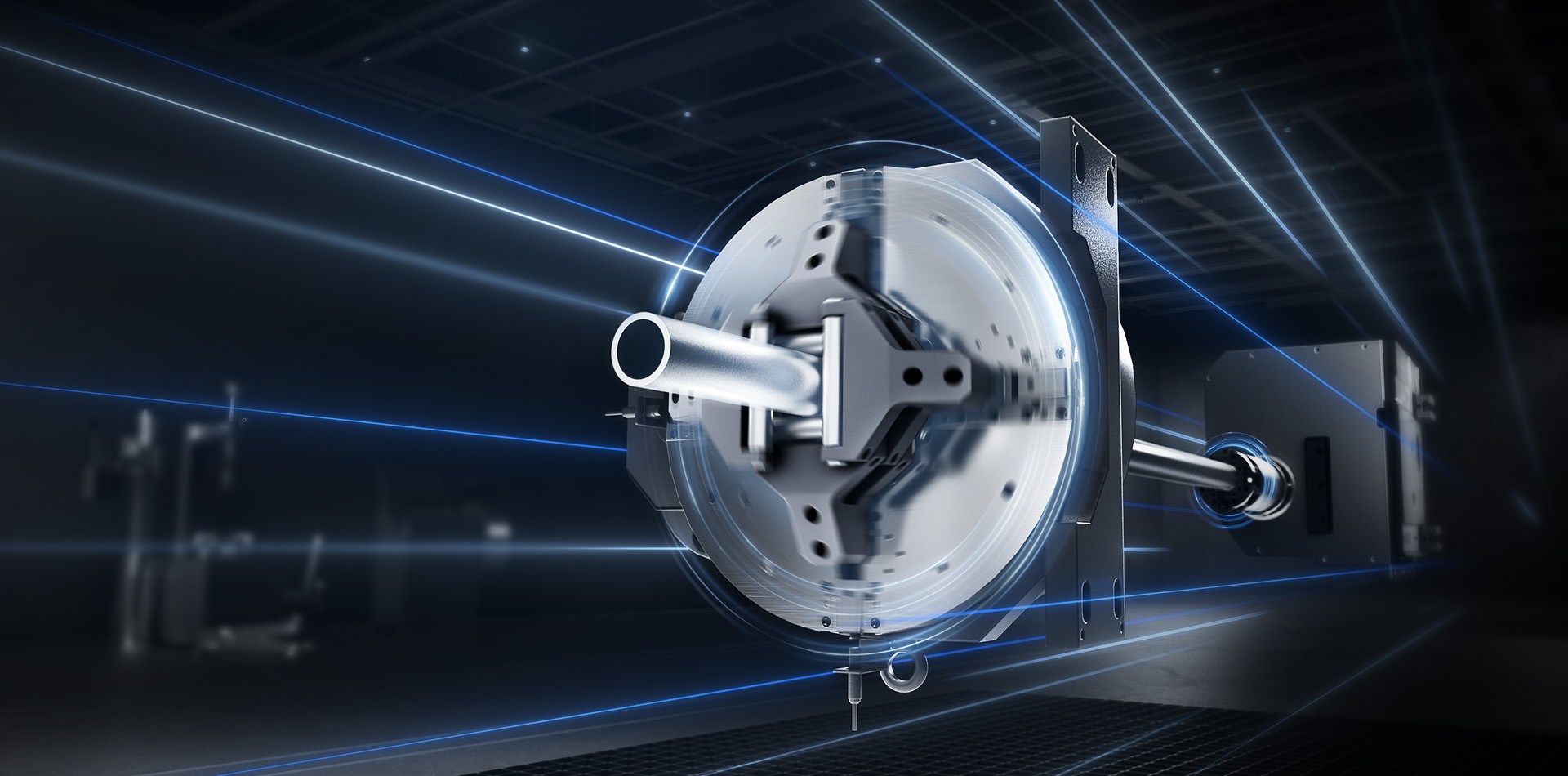

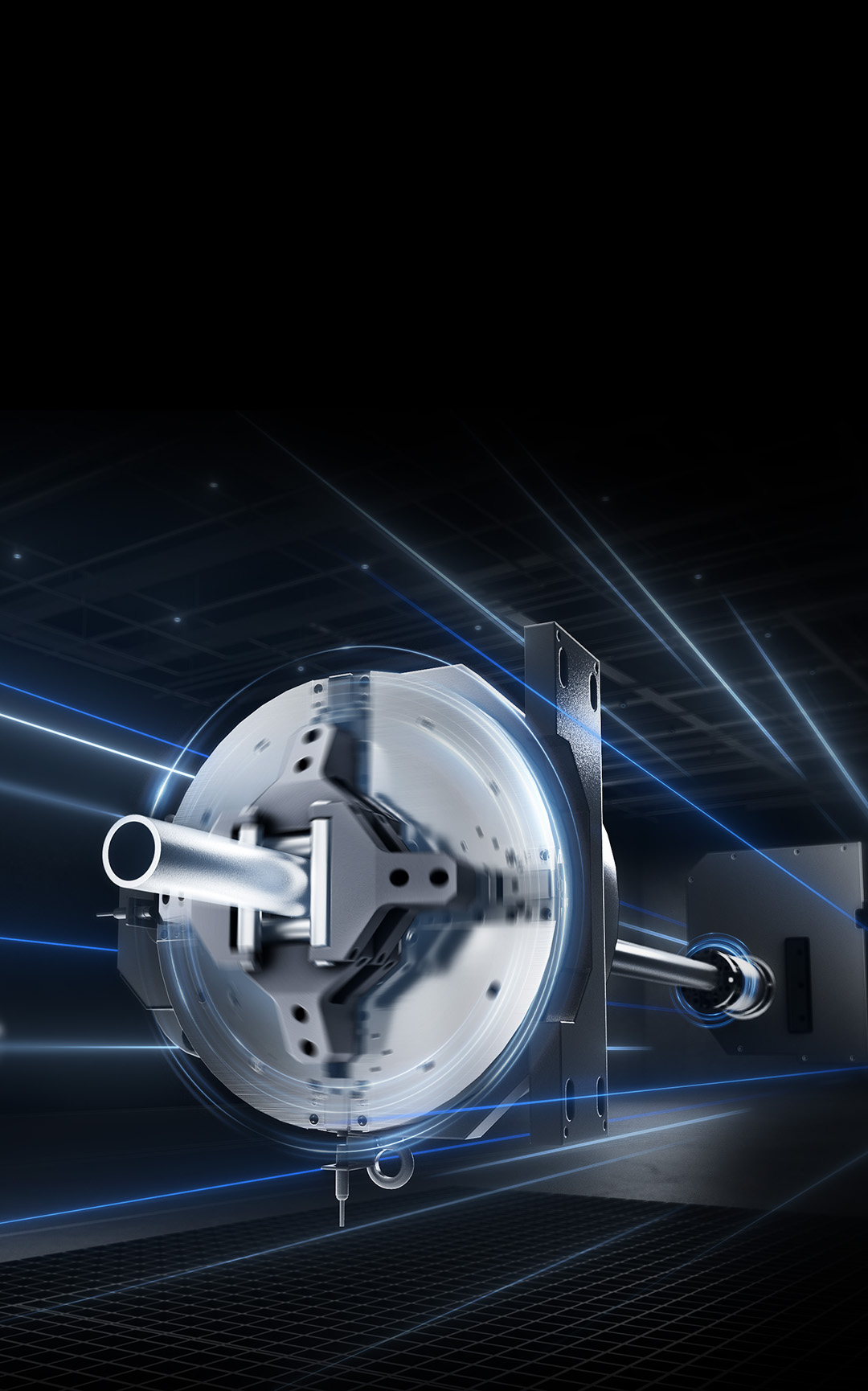

With a maximum chuck rotation speed of 200 r/min, production capacity is doubled, significantly shortening delivery lead times for customers.
maximum chuck rotation speed
Modules such as semi-automatic and fully automatic loading systems can befreely selected to achieve automatic loading of multiple tubes, reducing heavy reliance on manual labor.
Follow-up support (optional) in the loading area ensures precise centering, and a follow-up flap in the unloading area provides stable unloading and consistent conveying throughout the process to guarantee machining accuracy.
Office Furniture
Office Furniture
Fitness Equipment
Hardware & Sanitary Ware

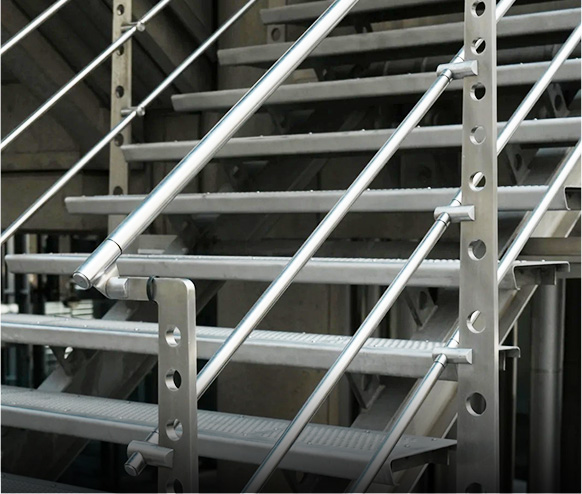

Guardrail Industries

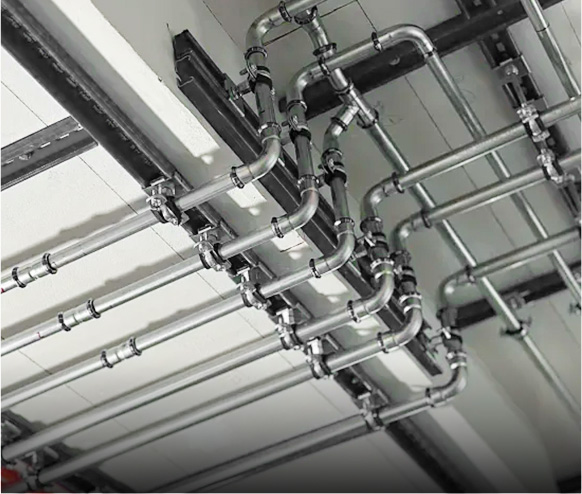

Piping Industries
