TG-E Series

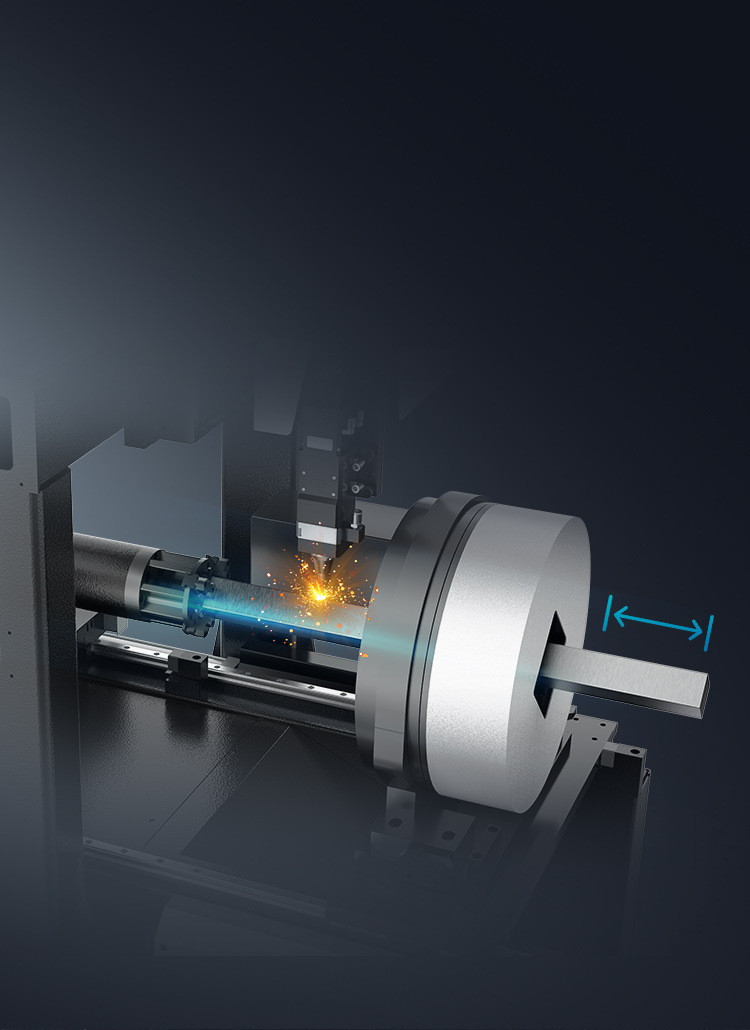

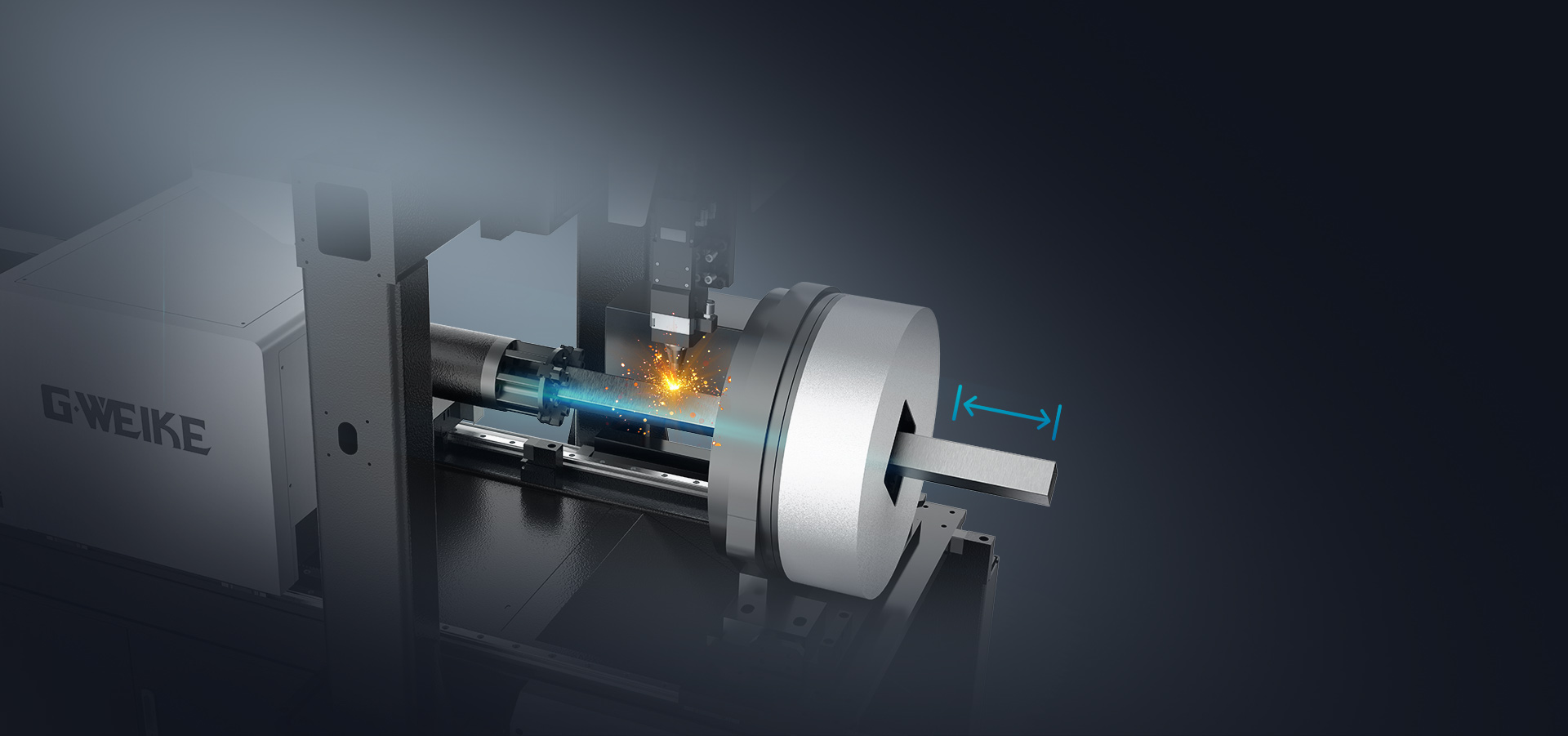

The front chuck offset enables ultra-short remnant processing for tubes of any length. The final cut is performed with dual-chuck clamping, ensuring more stable cutting.

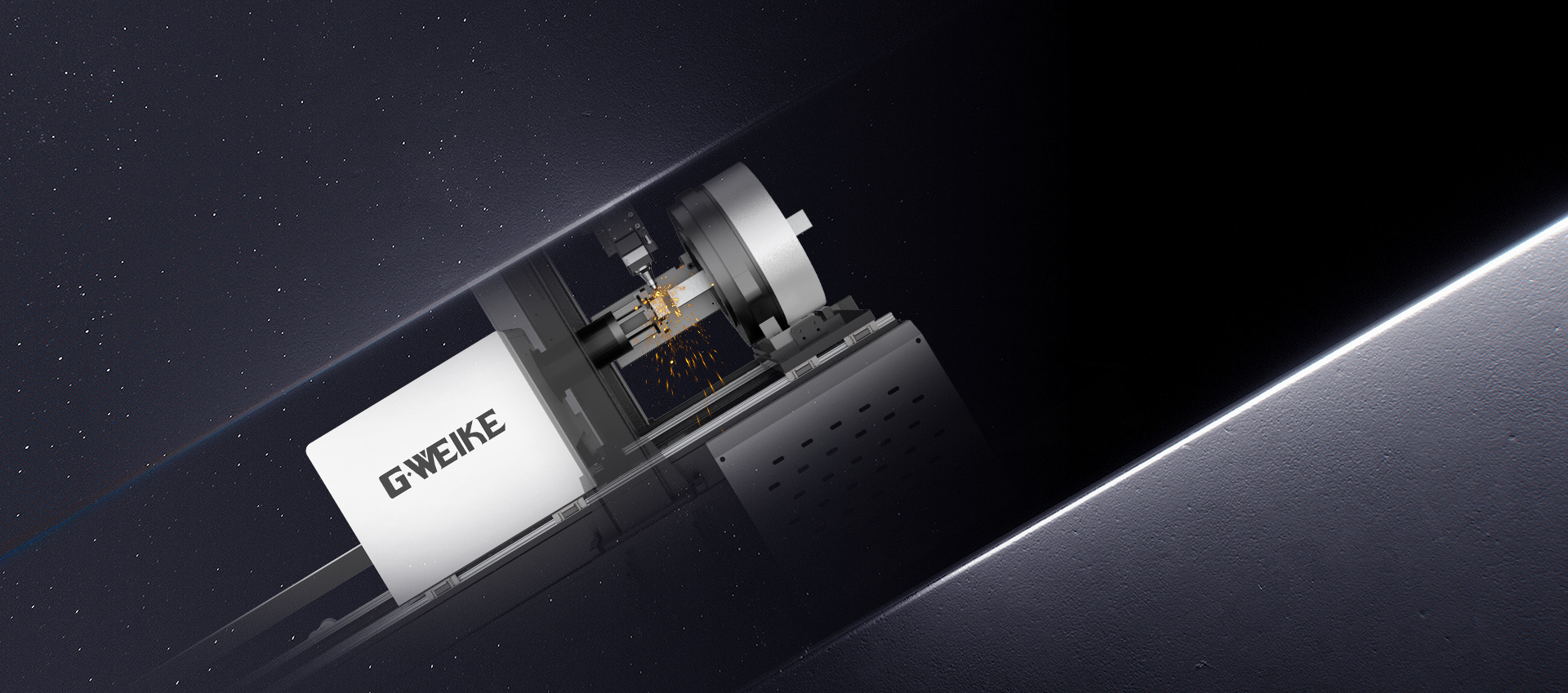

The minimum remnant length can be as low as
30mm,
Delivering real material savings and further increasing profit.

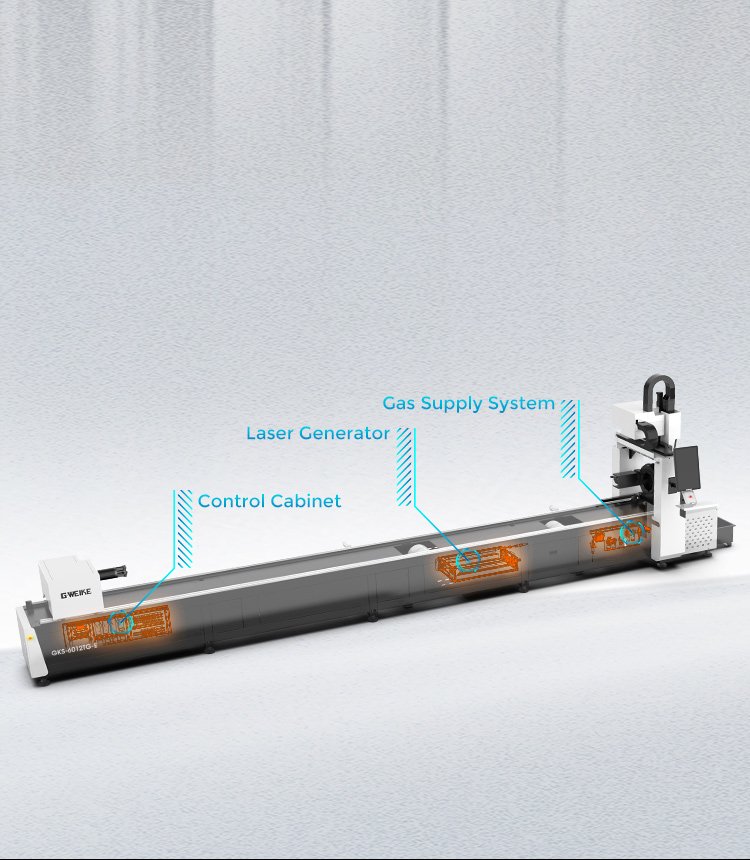

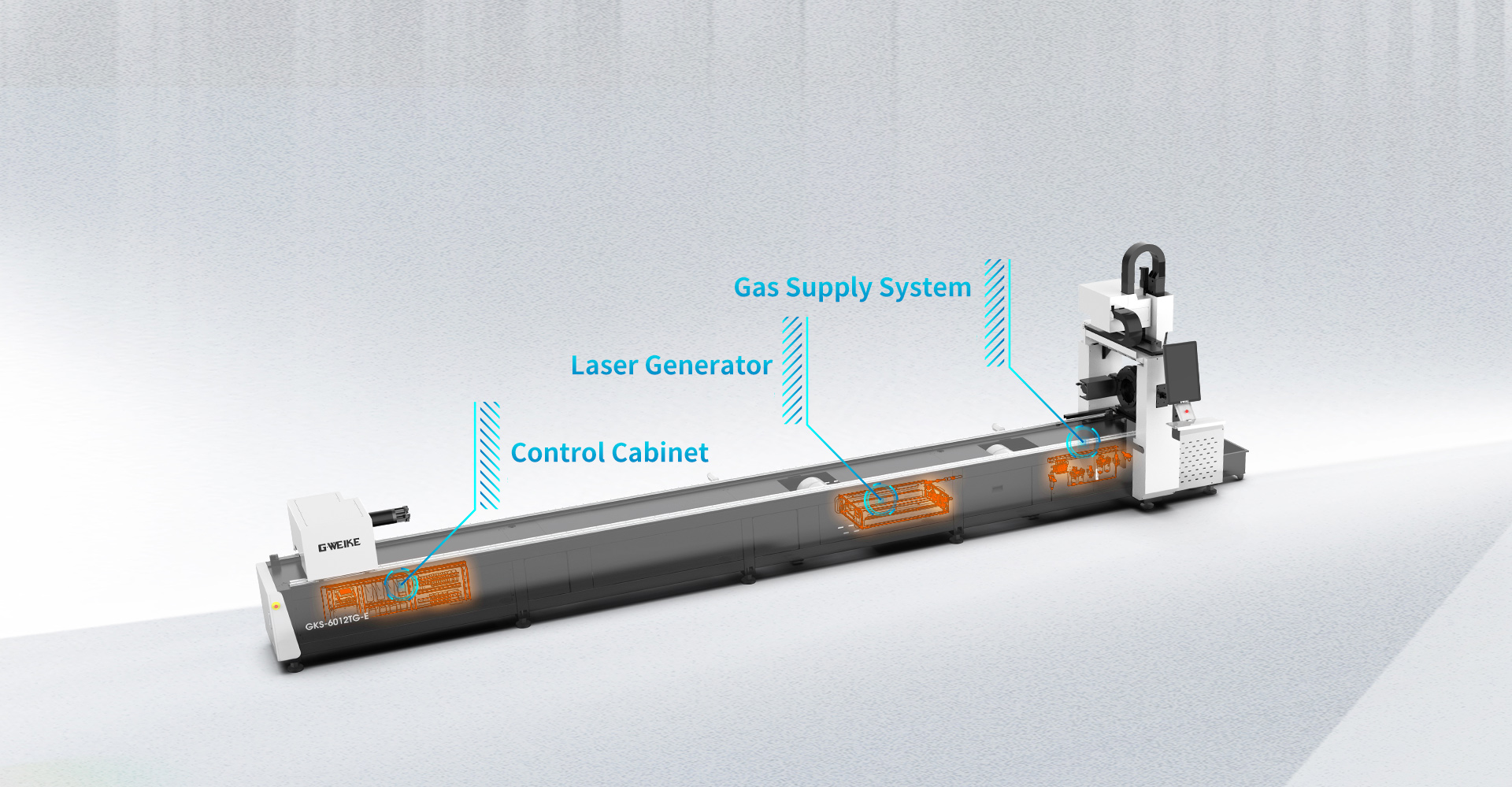

The electrical cabinet, laser source, and pneumatic system are integrated into the machine bed,reducing the footprint by 30% for easier transportation and high cost-effectiveness.

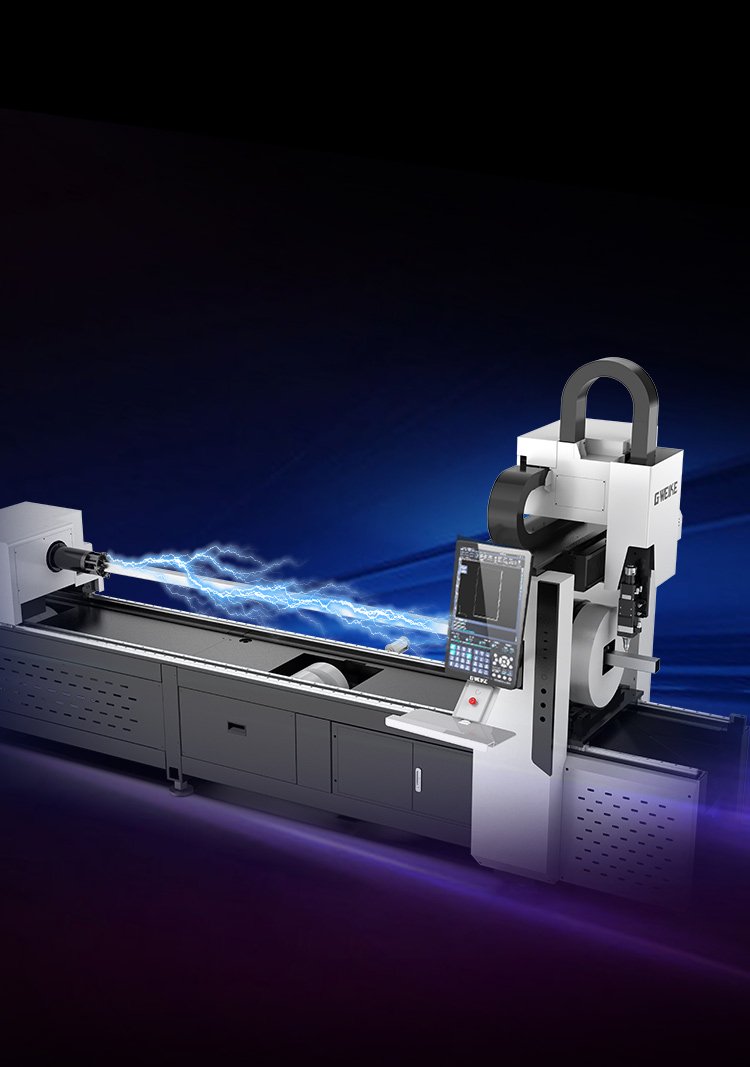

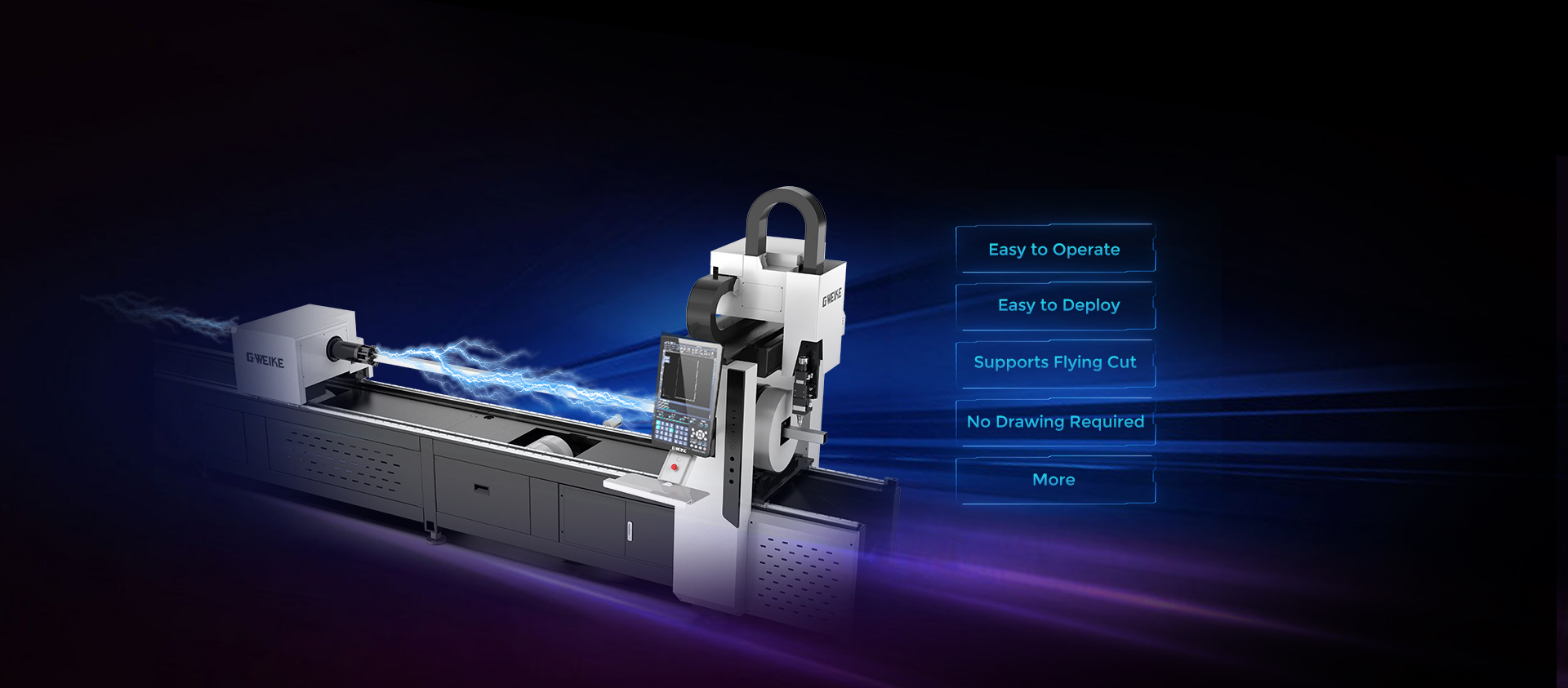

The intelligent bus system is easy to operate and convenient to deploy, supporting multiple functions such as flying cutting and drawing-free operation.
Office furniture, medical devices, fitness equipment, hardware & sanitary ware, guardrail industries, piping industries, etc.
| 6012
TG-E Series
|
6016
TG-E Series
|
| 1500W/3000WLaser power | 1500W/3000WLaser power |
| Φ10-Φ120mm □10X10-□120X120mm Clamping range |
Φ10-Φ160mm □10X10-□160X160mmClamping range |
| 140 r/minMaximum rotating speed | 140 r/minMaximum rotating speed |
| 6500mmEffective cutting length of pipe | 6500mmEffective cutting length of pipe |
| 80KGMax. Load Capacity per Pipe | 80KGMax. Load Capacity per Pipe |
| 120 Pneumatic ChuckHigh-Performance Chuck Design | 160 Pneumatic ChuckHigh-Performance Chuck Design |
