SAG Series
Dual-track Ultra-wide Groove Laser Cutting Machine
Video Show

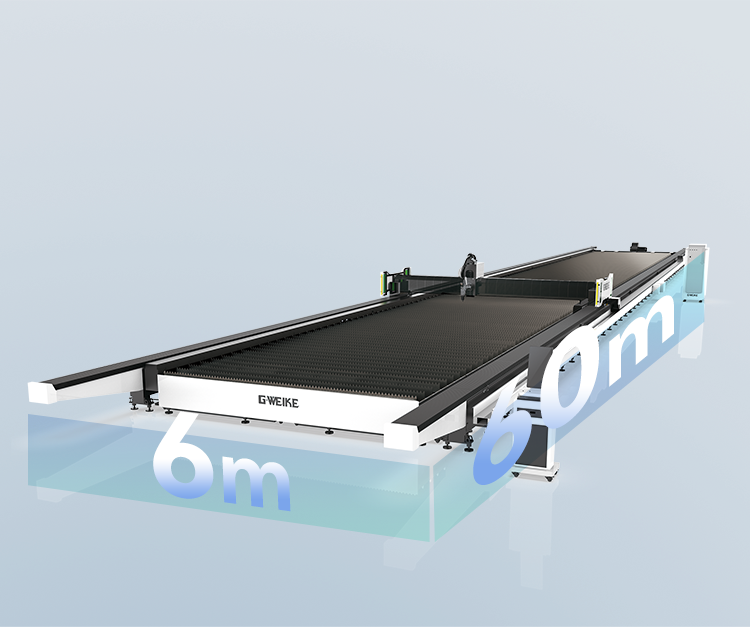

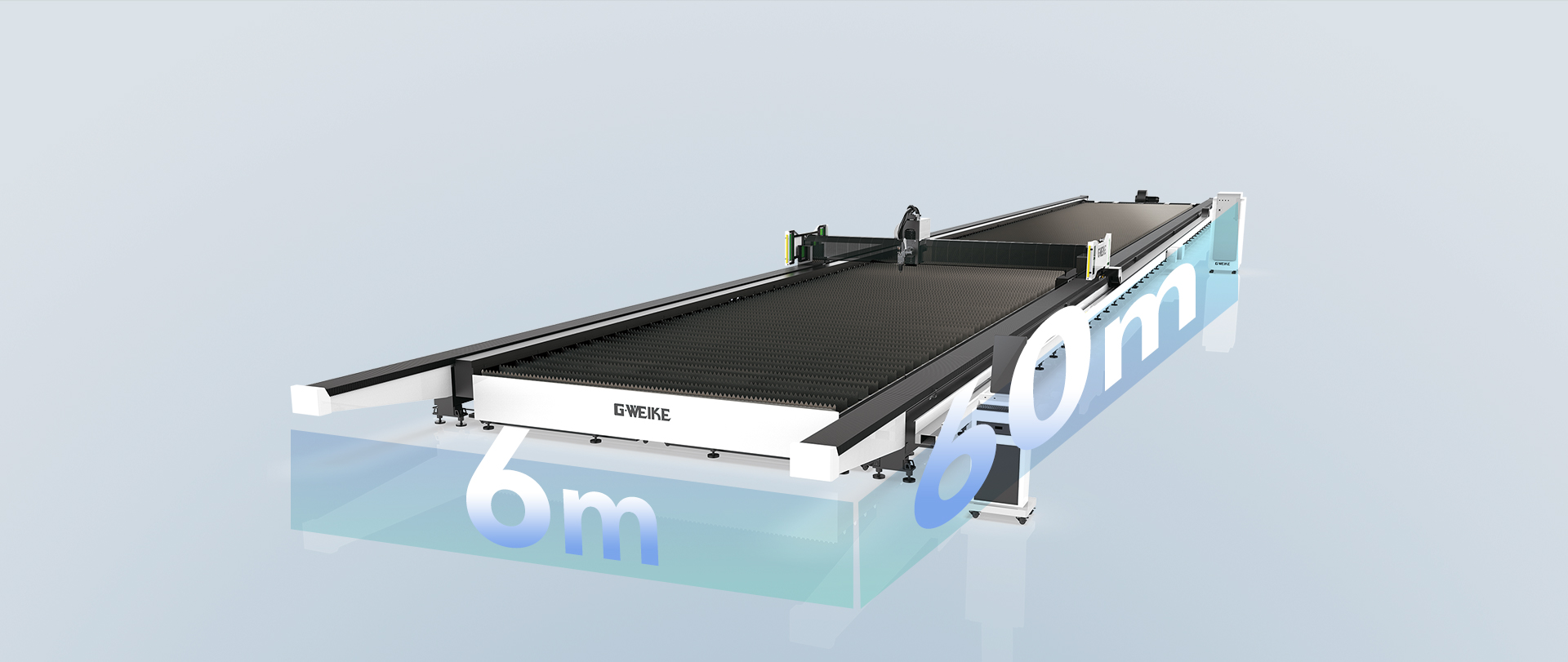

The linear multi-track structure is stable and high-speed, with the width of 6 meters and the length of 60 meters.

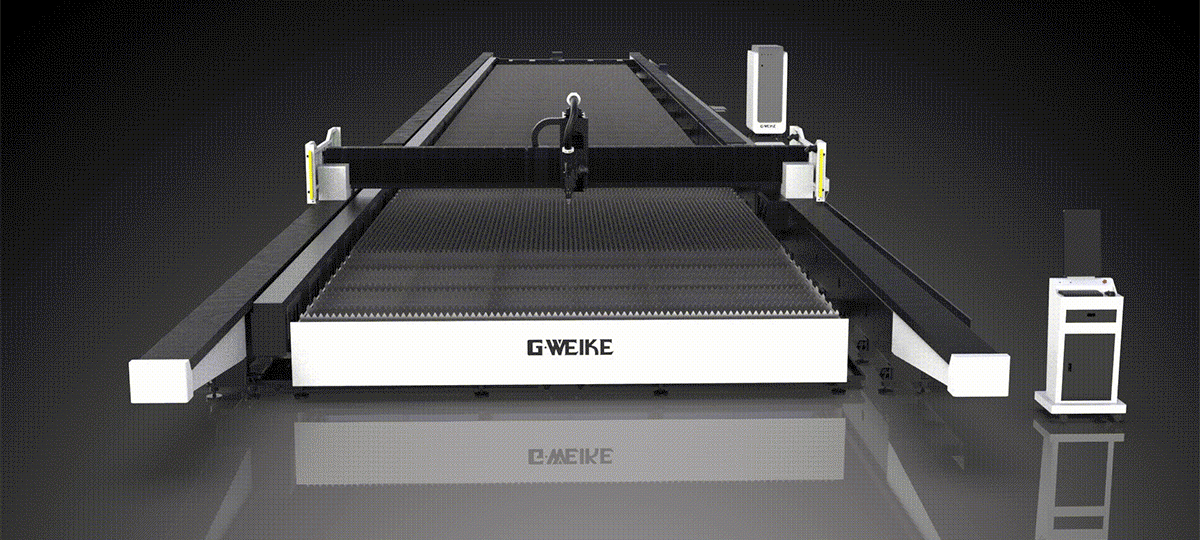

The dual-track Y-axis design delivers superior dynamic performance, with a maximum acceleration of 1.4G and a maximum linkage speed of 140m/min.

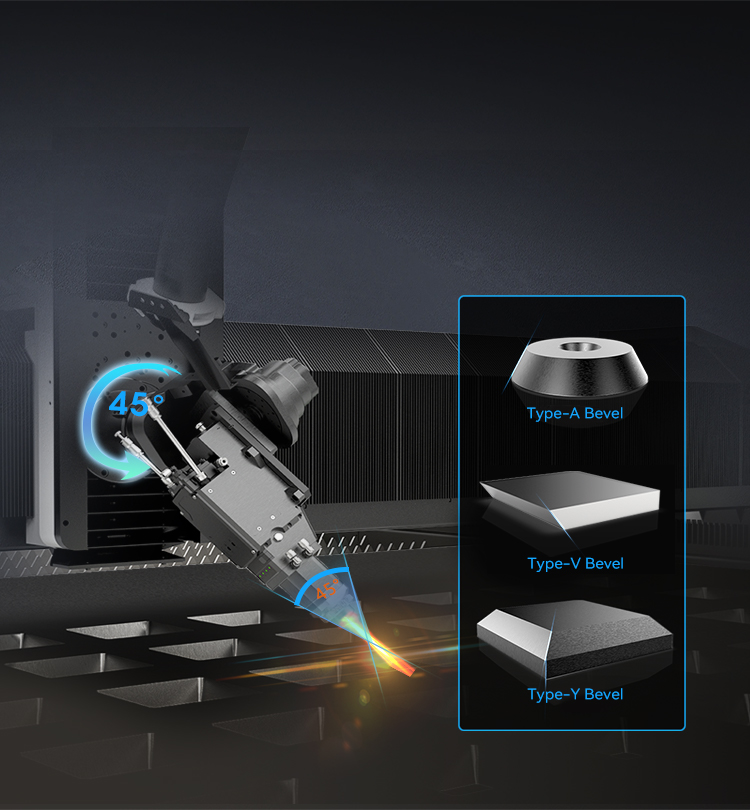

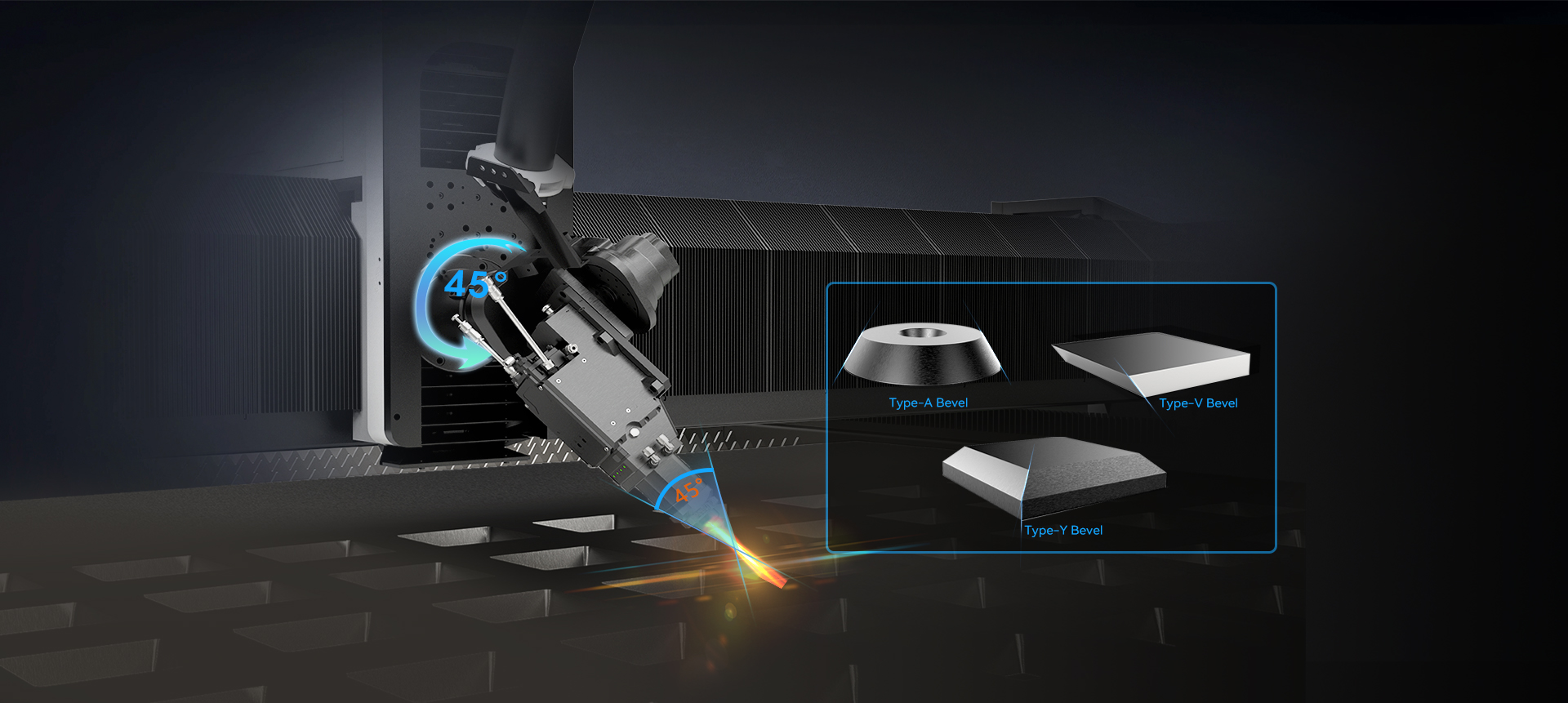

The AB double pendulum mechanism supports various shapes including X, Y, and V, enabling multi-angle groove cutting from 0 to 45 degrees.

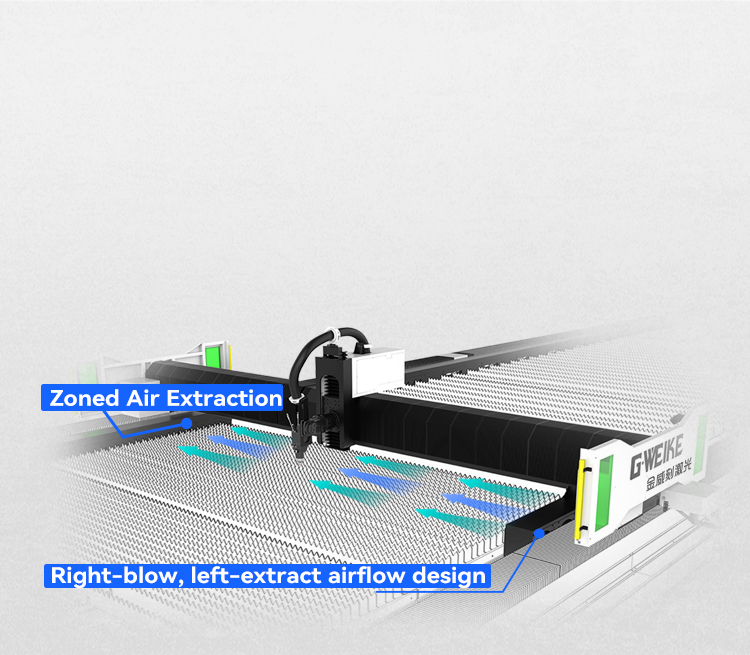

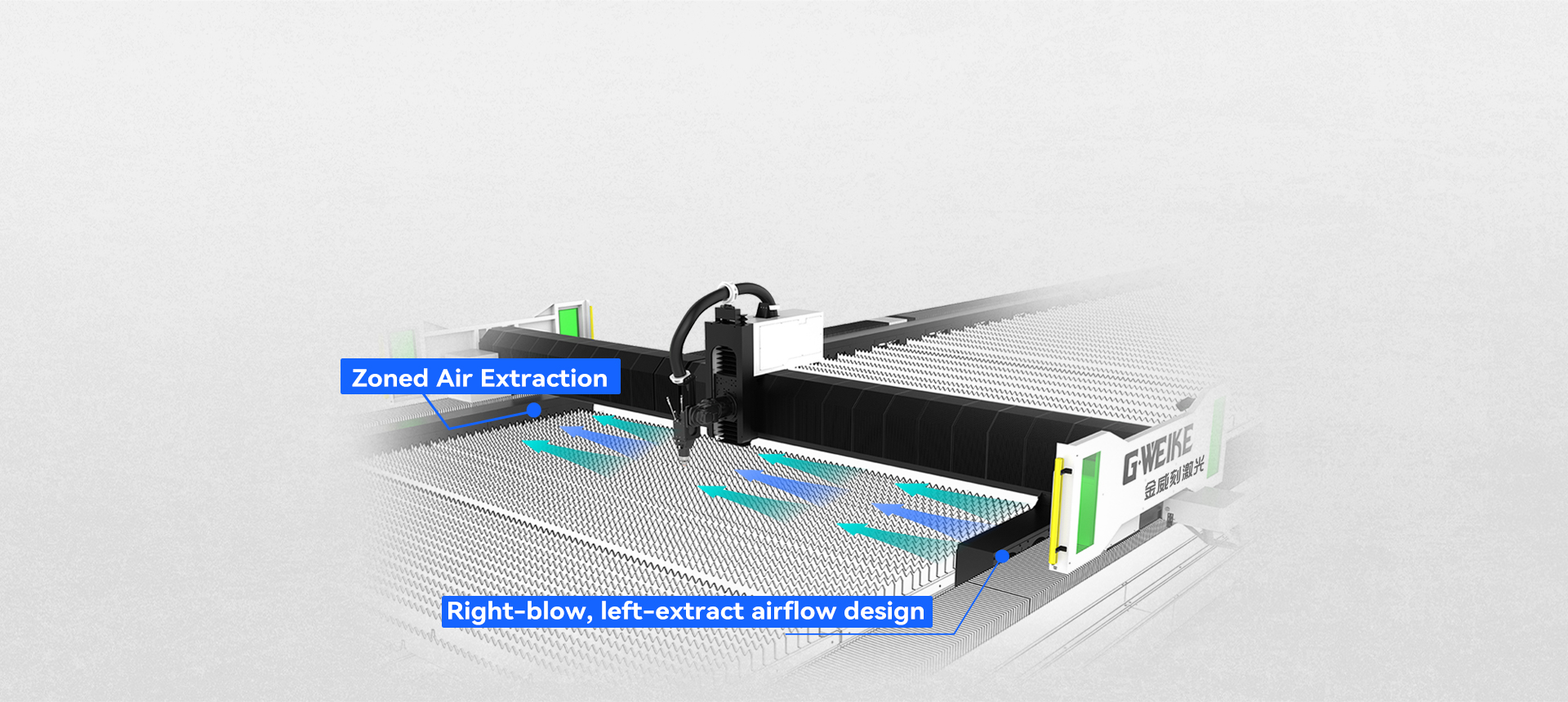

Three high-power axial flow fans are reciprocated along the crossbeam to blow air, while the fixed cutting table performs synchronized smoke extraction in arrayed zones. This dual approach achieves superior dust removal efficiency.

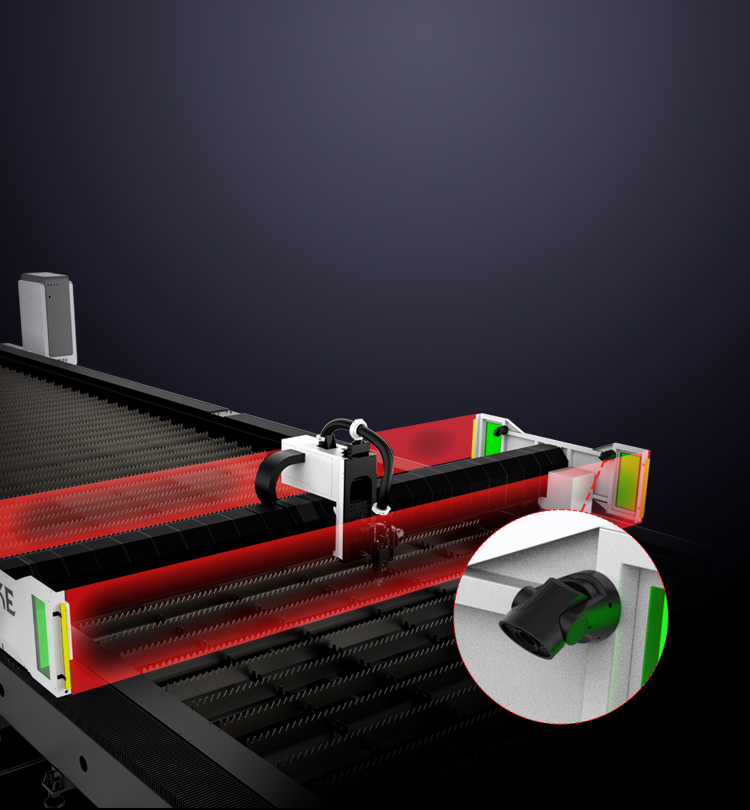

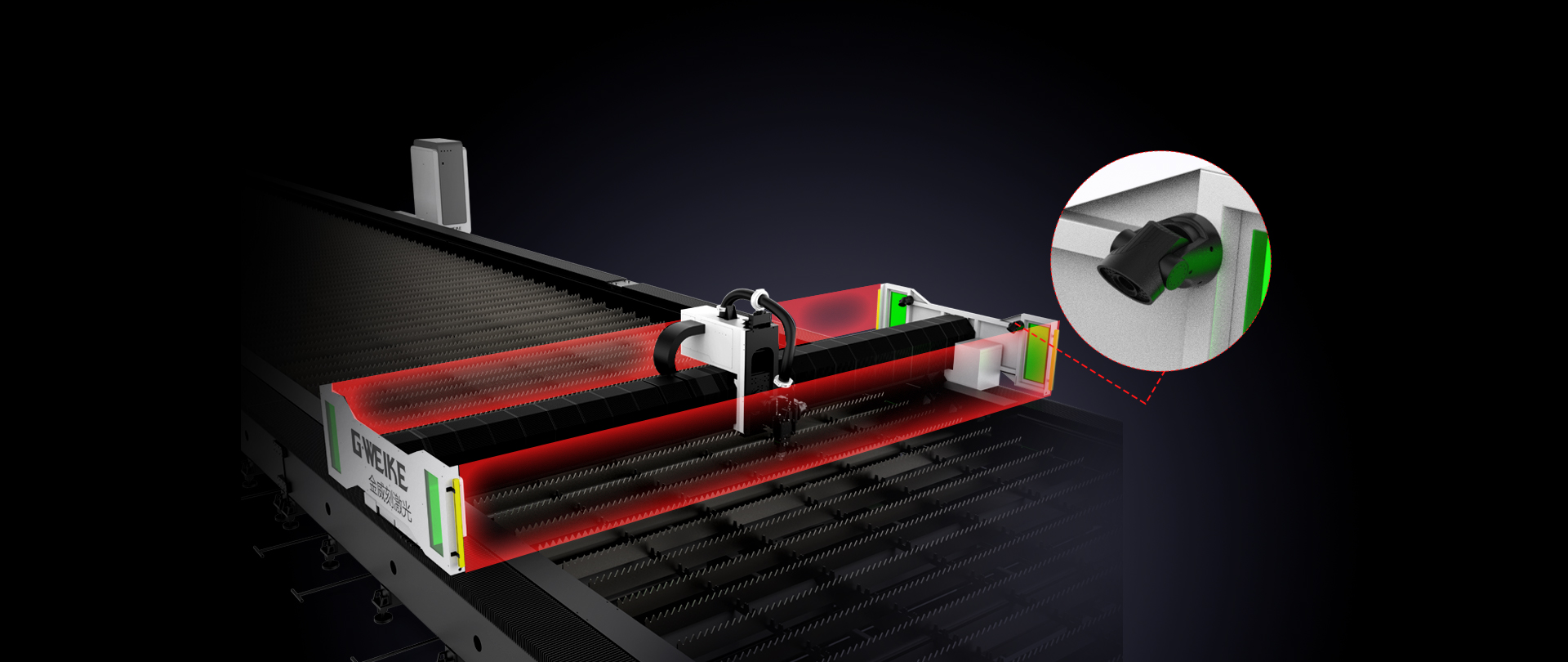

A pair of safety grating is installed on both ends of the beam to enhance operator safety, while the high-definition intelligent real-time monitoring system ensures full-process controllability of the cutting operation.

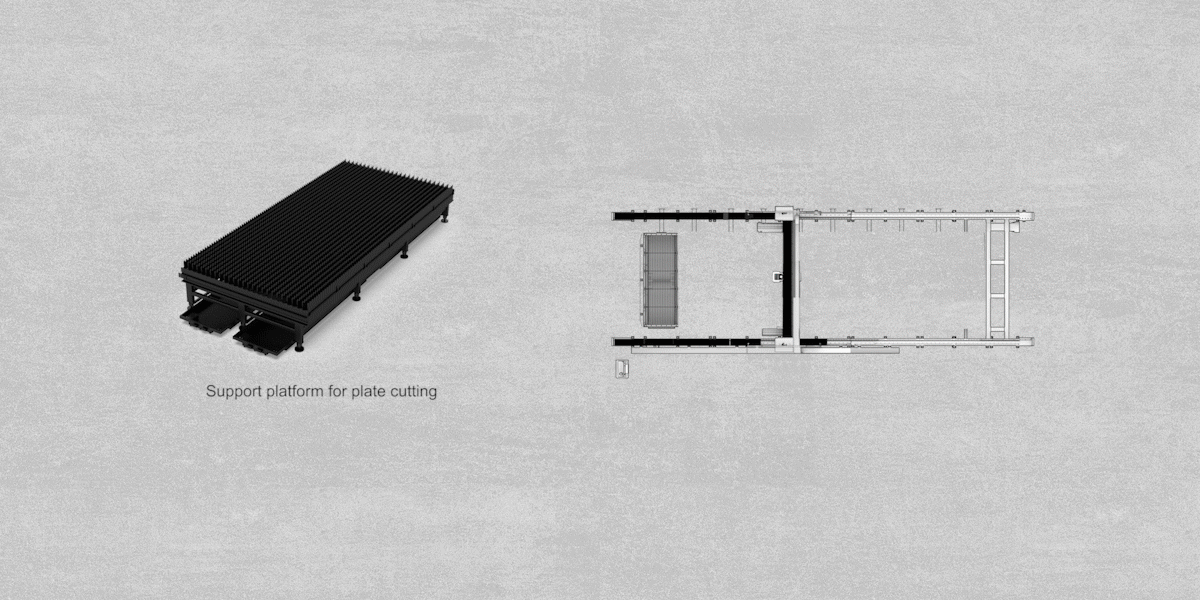

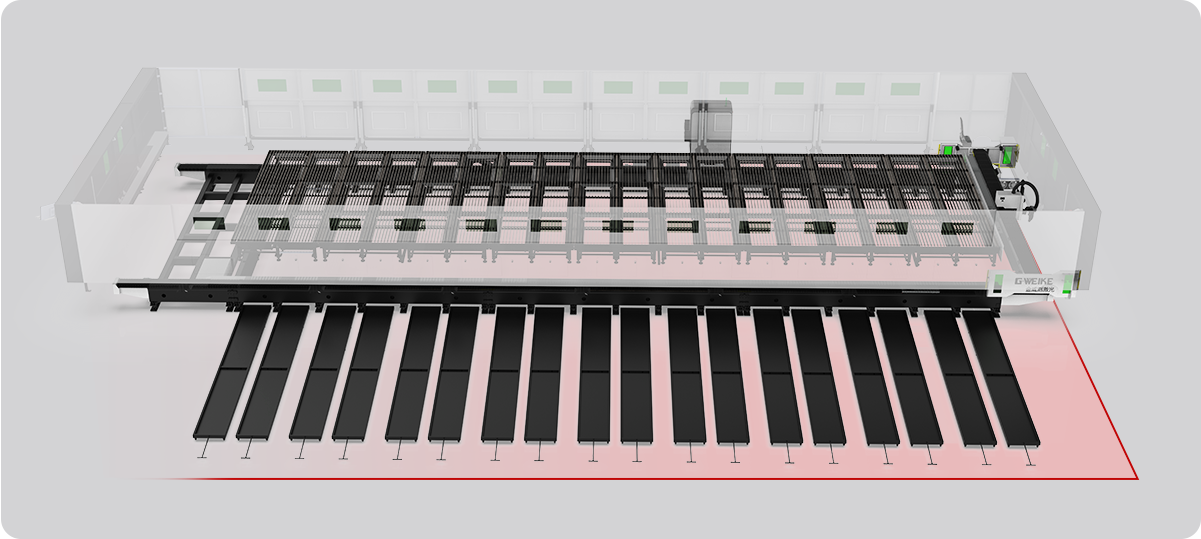

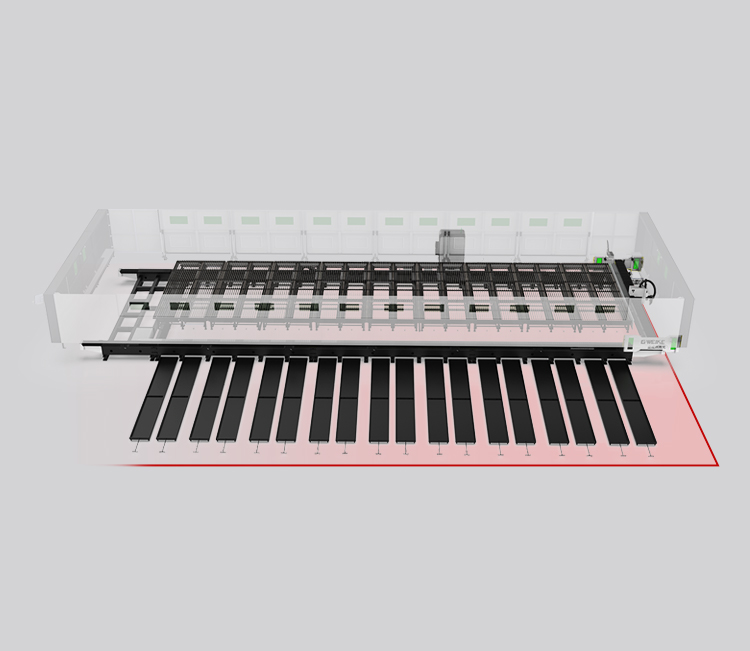

Reducing the impact of load on the bed frame extends its service life. The integrated bed frame design ensures long-term high-efficiency and high-precision cutting performance.

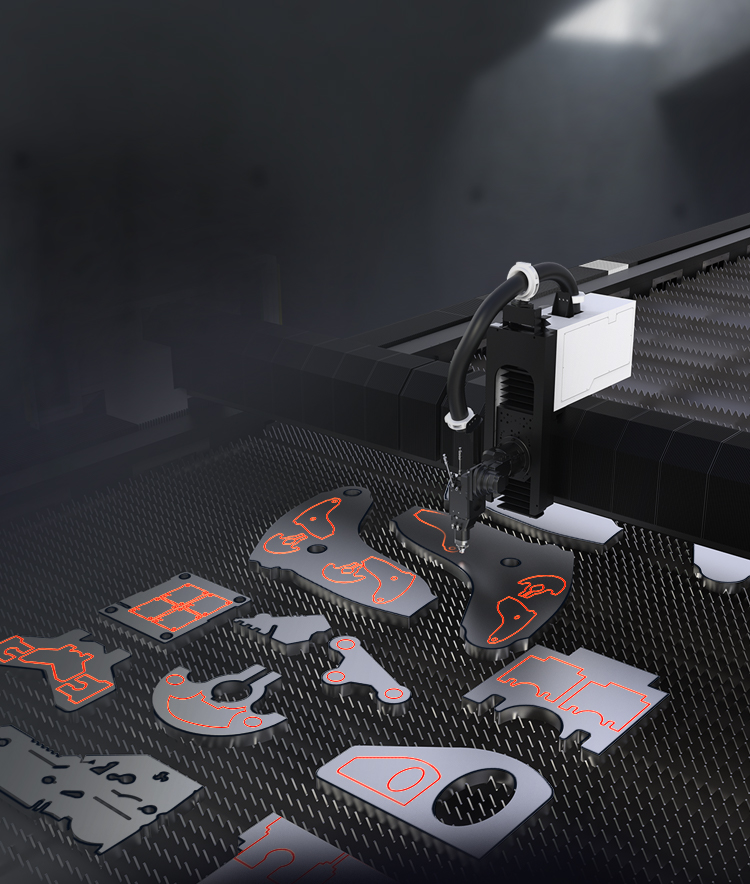

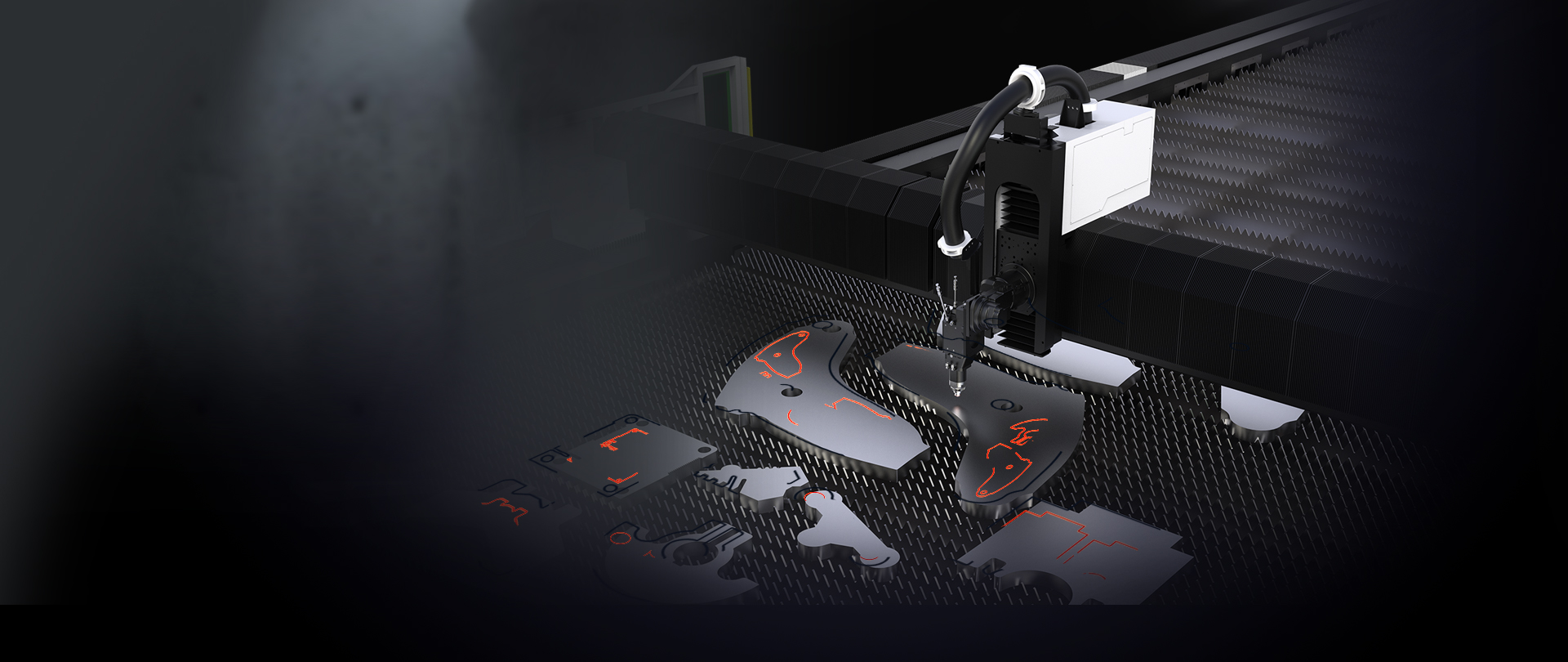

Accurate contour extraction for complex surplus materials, one-click batch scanning and automatic layout, achieving a 200% increase in production capacity and a 175% improvement in surplus material layout utilization.
Agricultural machinery, steel structures, tower industry, shipbuilding, mining machinery, sheet metal processing, mechanical equipment, construction machinery
| Machine model | 10050SAG/12040SAG/14040SAG/16040SAG/40040SAG/60060SAG |
| Laser power | 135000W/80000W/60000W/40000W/12000W |
| Working area | Length 6m-60m, width 4m-6m(4m, 5m, 5.2m, 5.5m,6m) Can customization |
| X/Y axis positioning accuracy | 0.1/10m&0.05/5m |
| X/Y axis repeat positioning accuracy | ±0.05mm |
