New energy series
Dual-Station Stacking Machine
Video Show ![Video Show]()

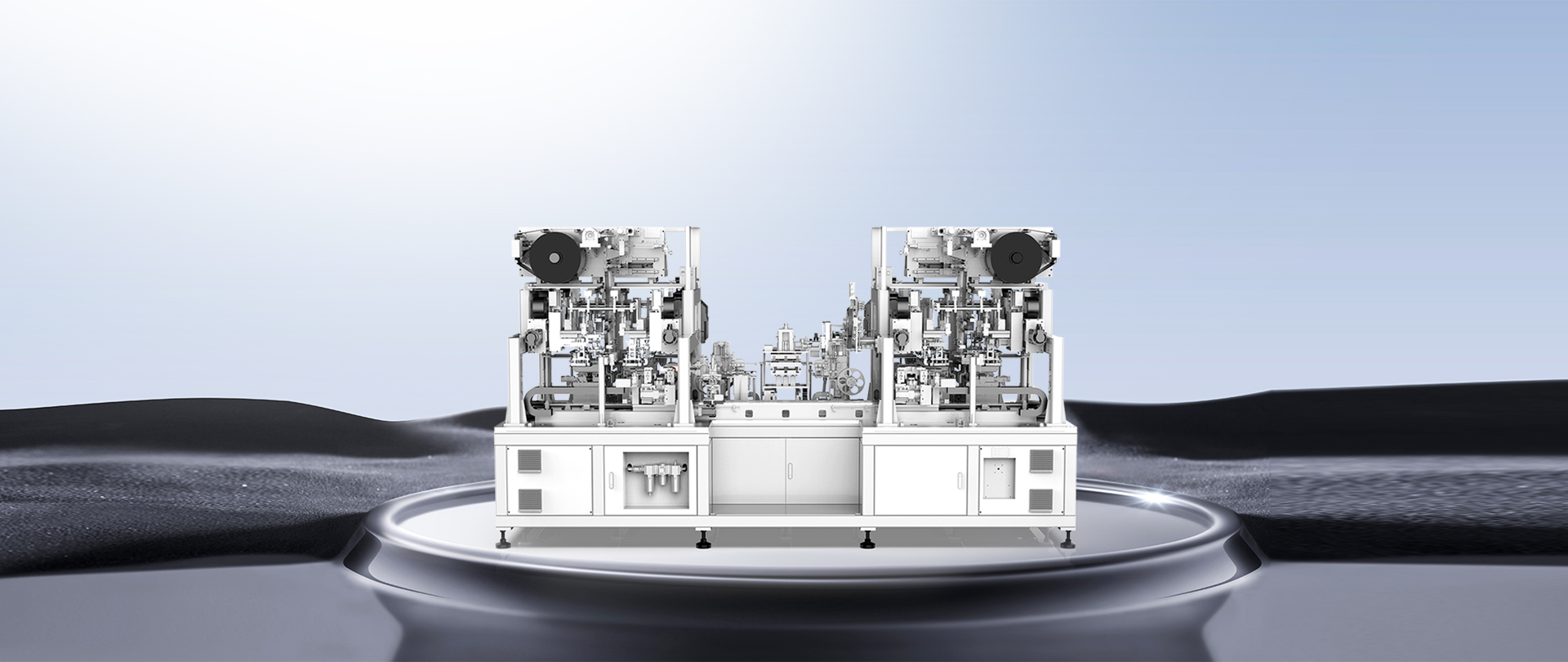

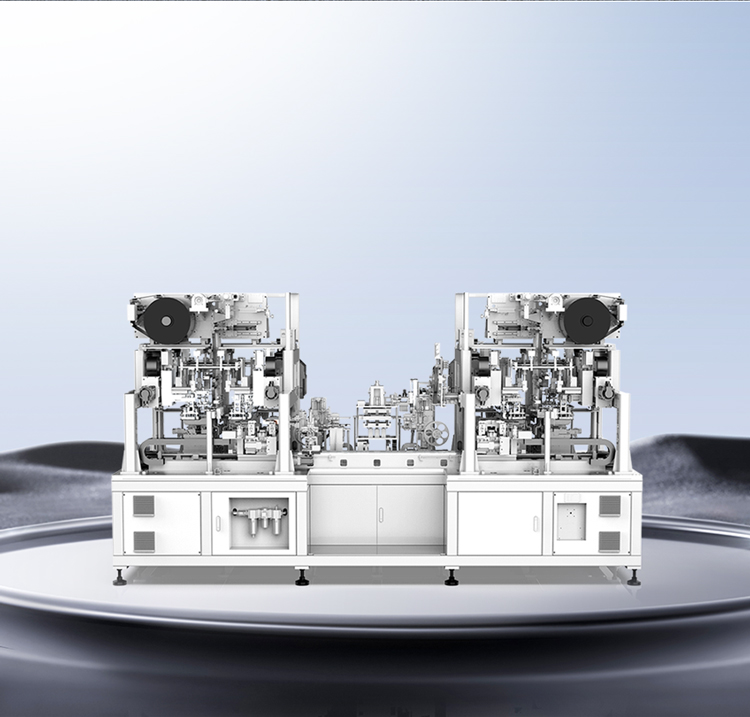

Assistance time for a single cell ≤6S, high stacking efficiency, stacking time per piece ≤0.6S/piece, overall machine efficiency ≤0.3S/piece

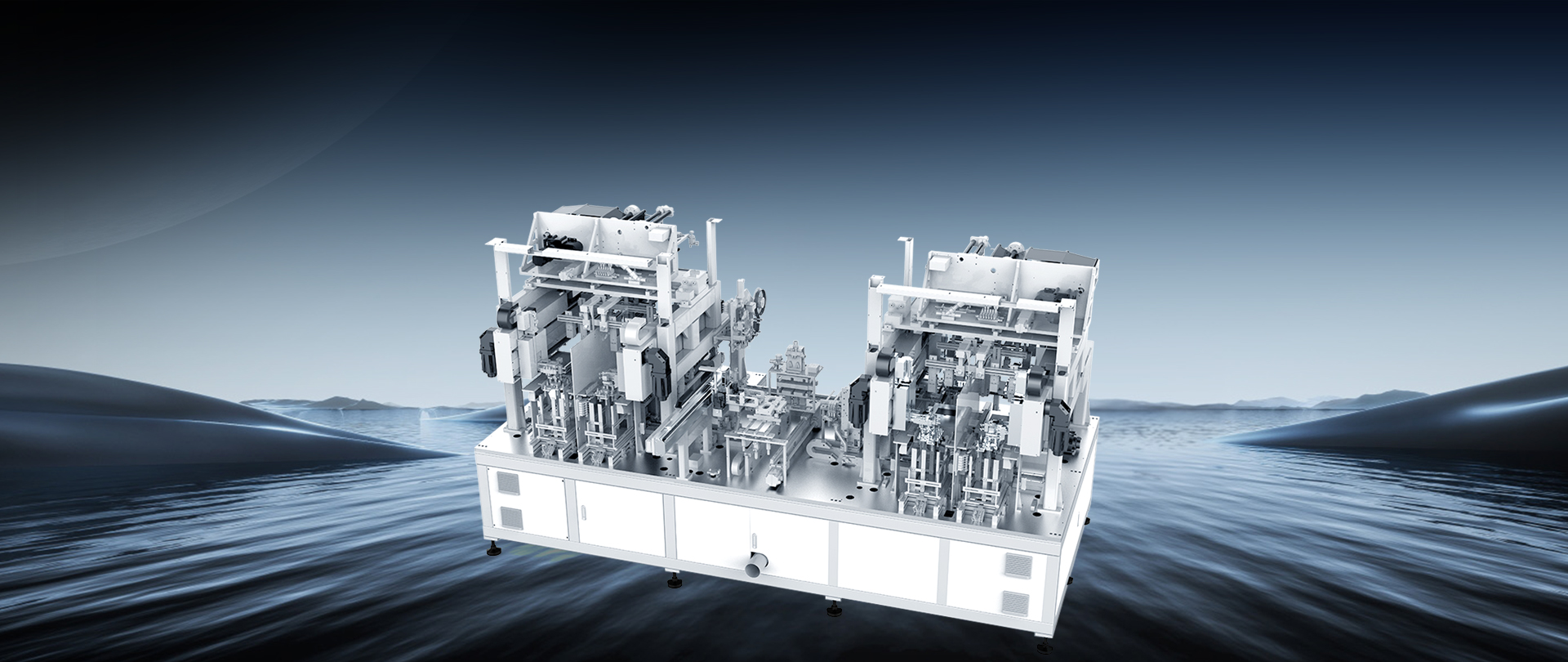

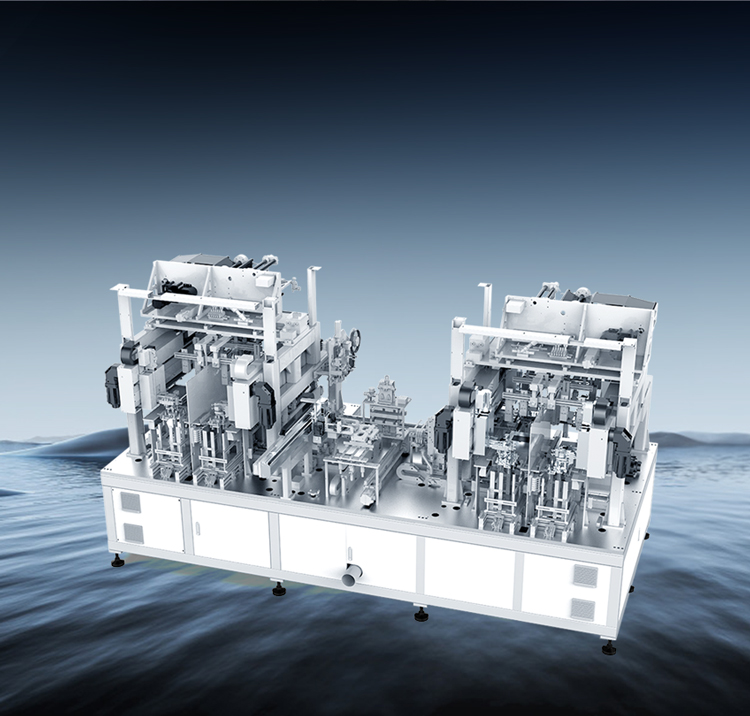

Can adapt to various cell specifications through minor adjustments; compatible with both stacking and docking logistics for unloading.

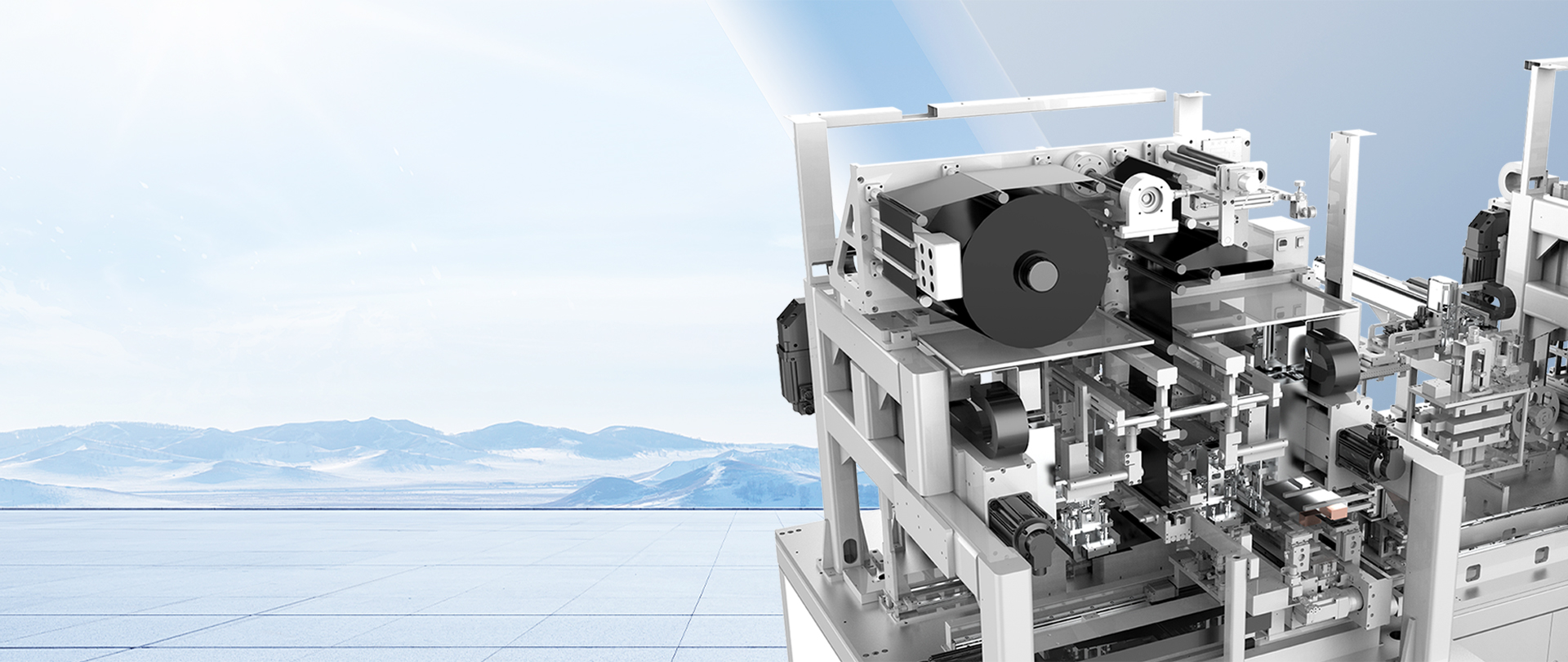

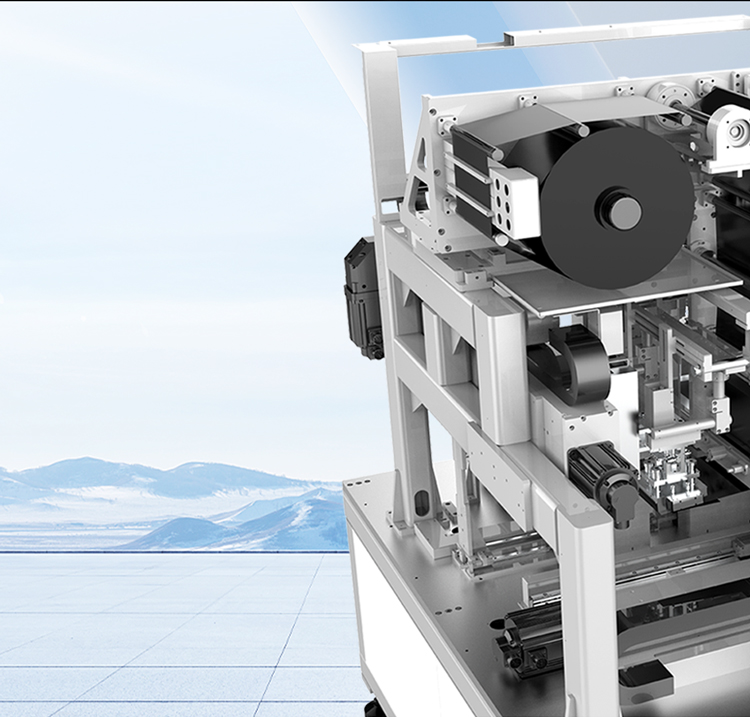

High alignment, overall cell alignment ≤±0.3mm,
correction positioning accuracy ≤0.1mm

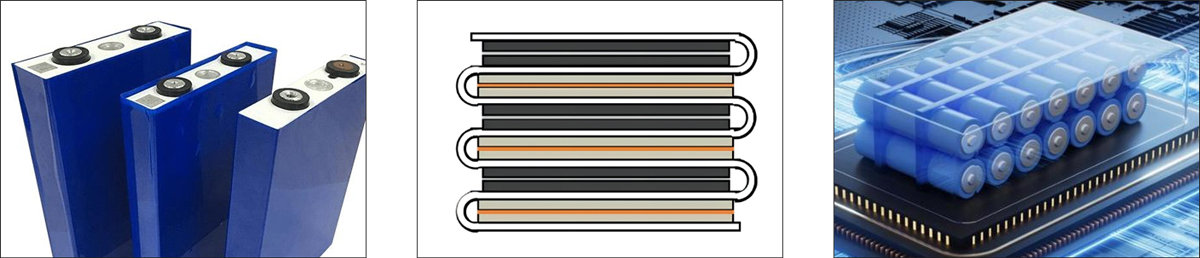

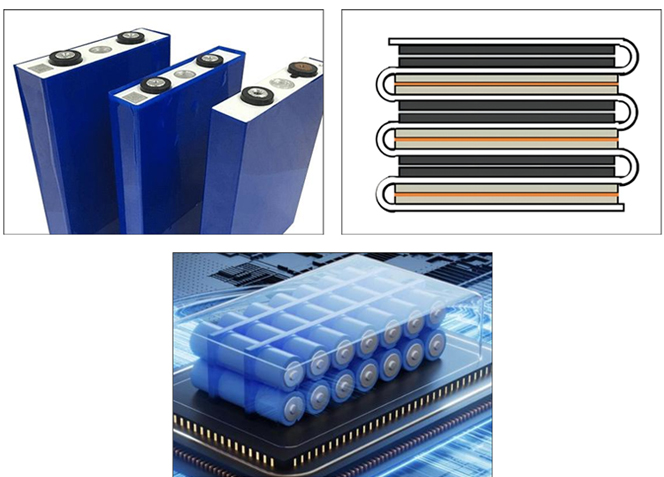

Z-type stacking process for square lithium-ion battery cells
| Machine model | GWK-NDP22AD |
|---|---|
| Single Station Stacking Speed | ≤0.6S/piece |
| Alignment Accuracy between Tab and Separator | Center deviation less than 0.3mm |
| Alignment Accuracy of Separator End Face | ±0.2mm |
| Alignment Accuracy of Adjacent Tabs | ±0.2mm |
| Overall Alignment Accuracy of Tabs | ±0.3mm |
| Assistance time for a single cell | ≤6s |
| Correction Positioning Accuracy | ≤0.1mm |
| Number of Stacking Layers | Adjustable |
| Positioning Accuracy of Gripper Robot | ±0.01mm |
