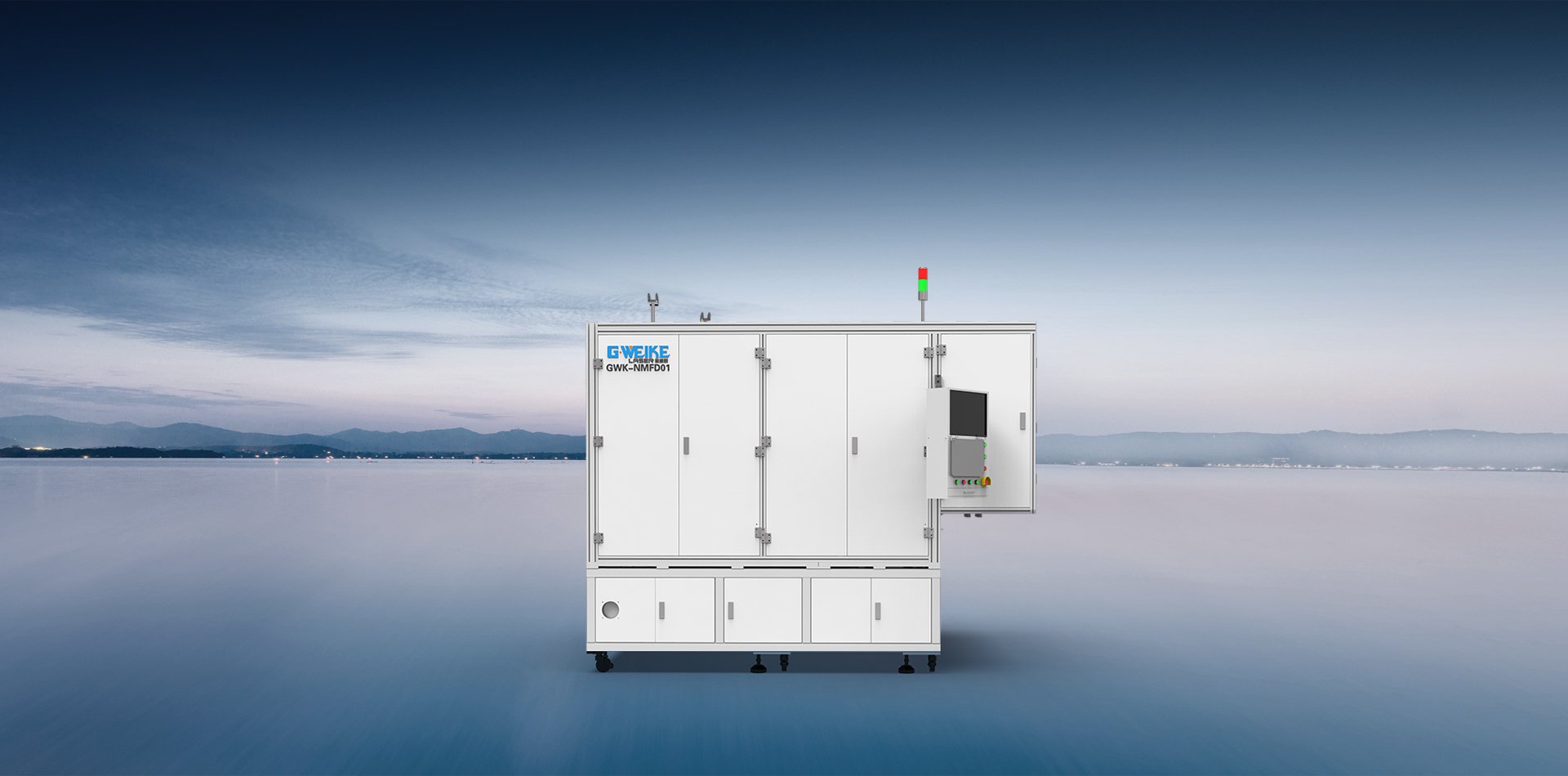

Sealing Nail Laser Welding Machine
Video Show ![Video Show]()

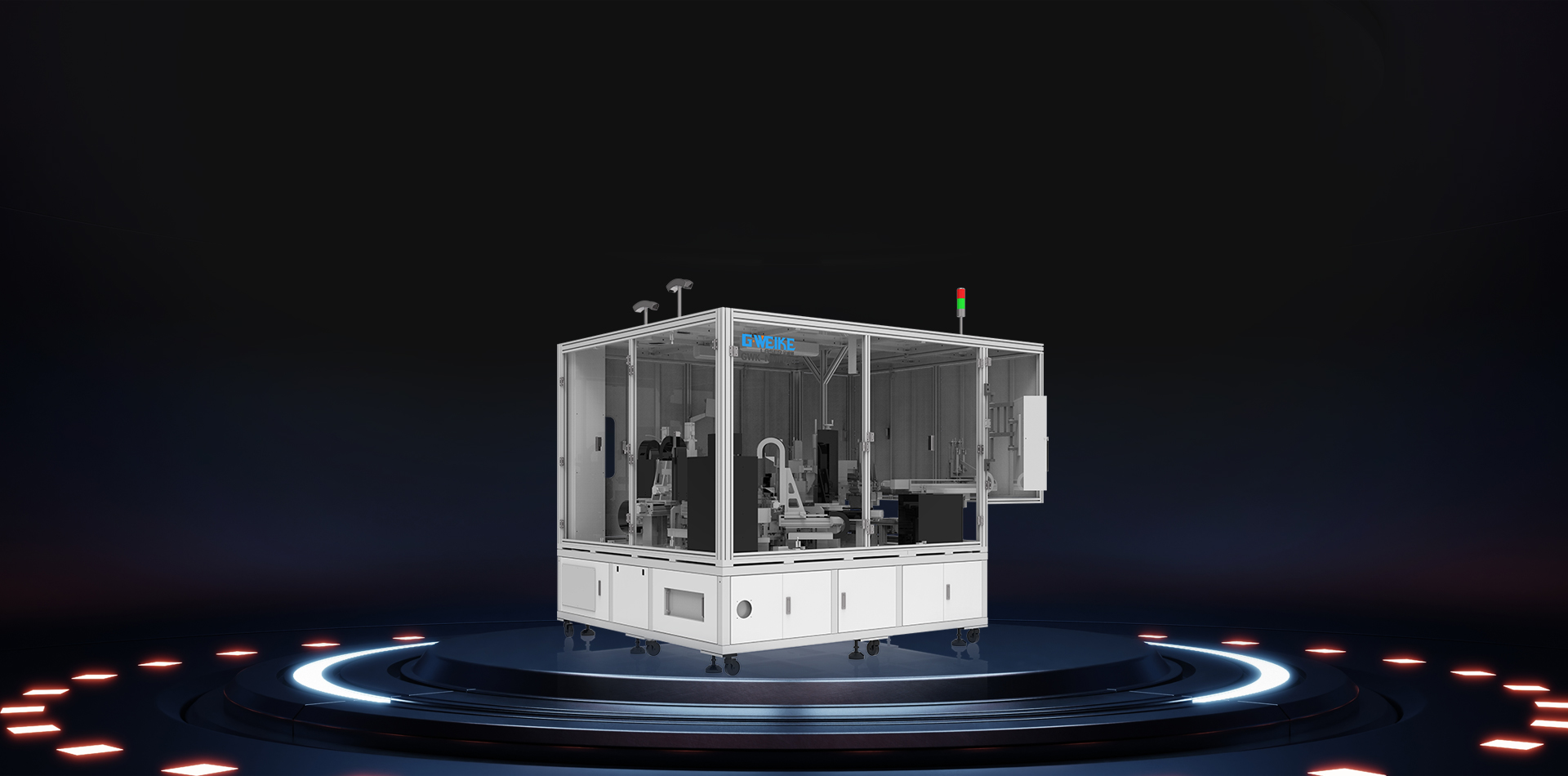

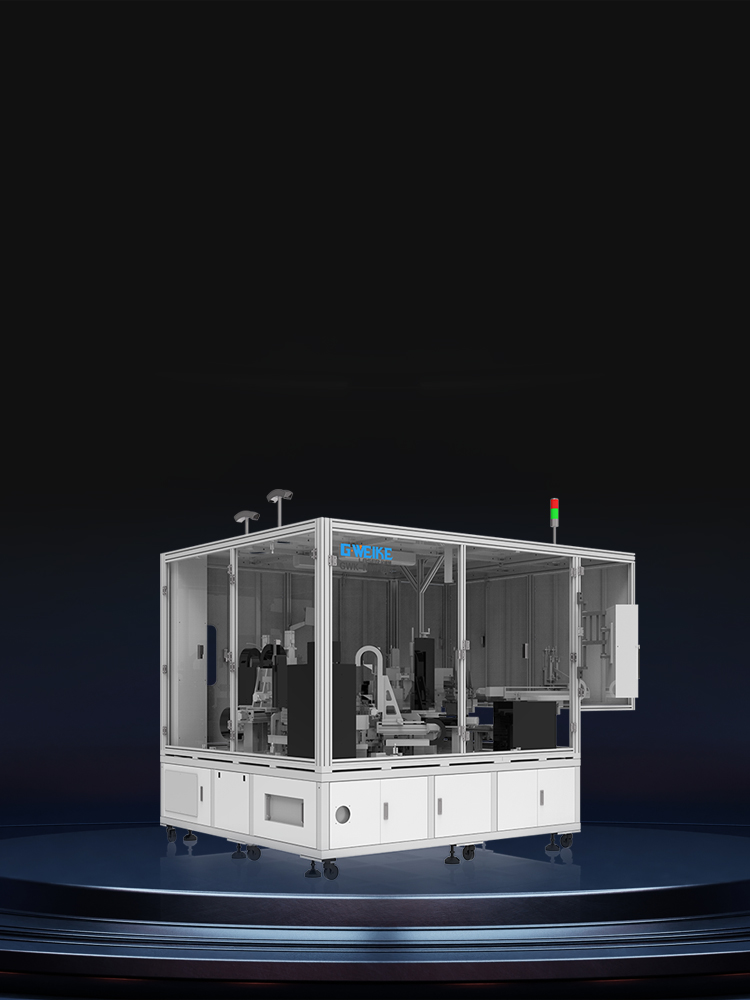

The equipment can achieve incoming material scanning and recording, fully automatic loading and unloading, fully automatic battery clamping and baseline positioning, automatic laser cleaning, automatic positioning and assembly of sealing nails, CCD selection of weld seams and pre-welding detection, automatic laser welding and dust removal, automatic identification of defects and rejection.

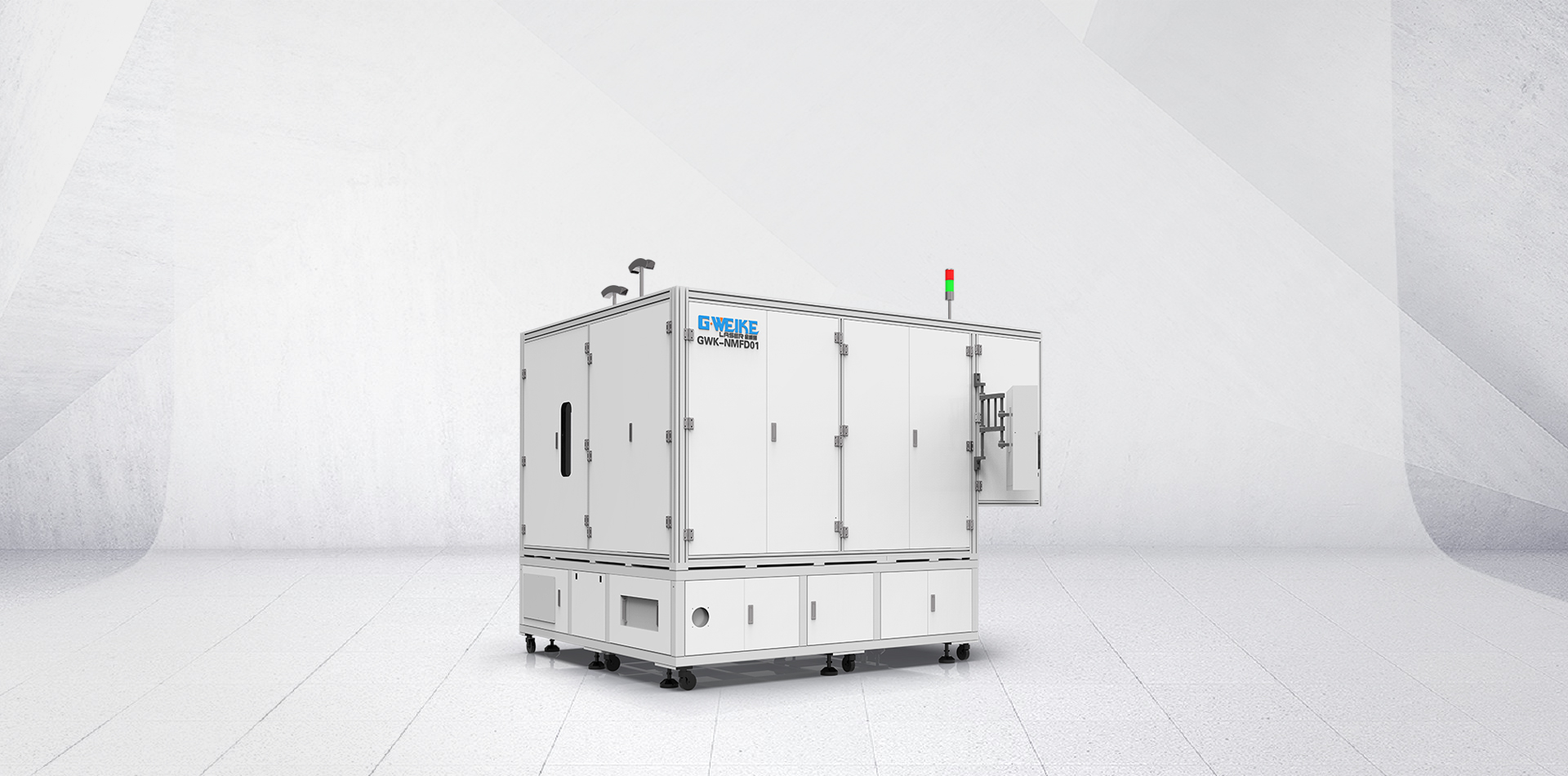

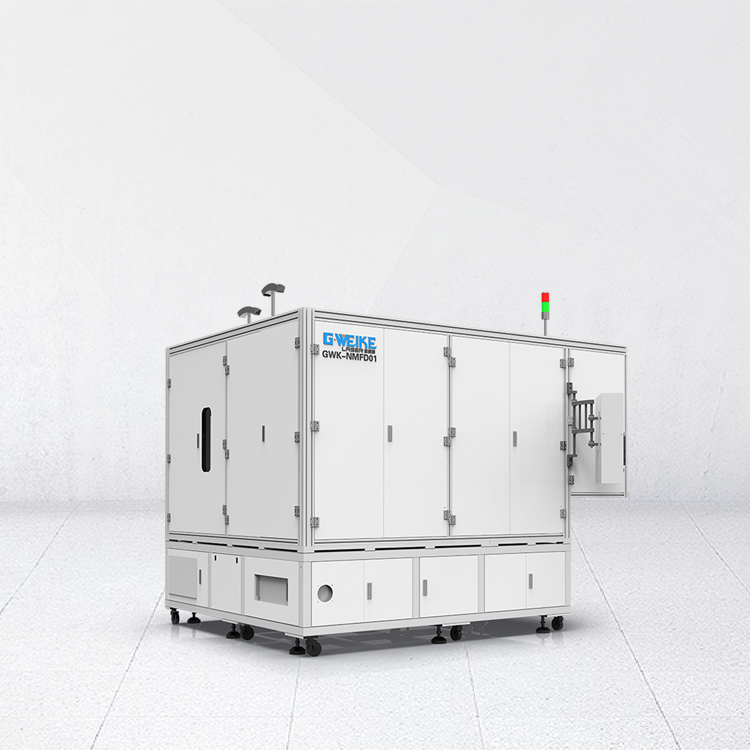

High welding yield, sealing nail welding is an important part of the later stage of battery cell production process, and the welding yield directly affects the production yield of individual battery cells, resulting in high production efficiency.
Seal welding of injection ports in the production line of square aluminum shell batteries for new energy lithium batteries
| Machine model | GWK-NMFD01 |
|---|---|
| Power Supply | 380V/50HZ |
| Rated power | 120KW |
| Welding repeatability | ≤±0.01mm |
| Machine weight | 4T |
| Overall dimensions | L2800*W2300*H2800(mm) |
| Weld penetration depth | 0.5-1.0mm |
| Weld bead width | 1.1-1.6mm |
| Weld seam proof pressure | ≥0.8Mpa |
| Defocus adjustment range | ±5mm |
| Welding speed | ≥6mm/s |
| Yield rate | ≥99.5% |
| Uptime | ≥98% |
| Throughput | ≥15PPM |
