New energy series
Laser Die Cutting and Trimming Integrated Machine
Video Show ![Video Show]()

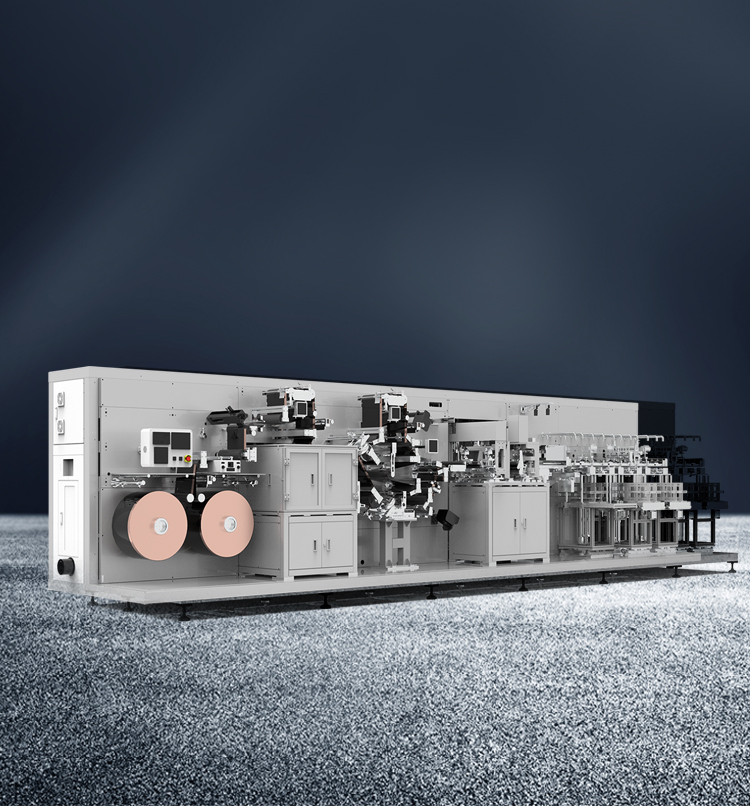

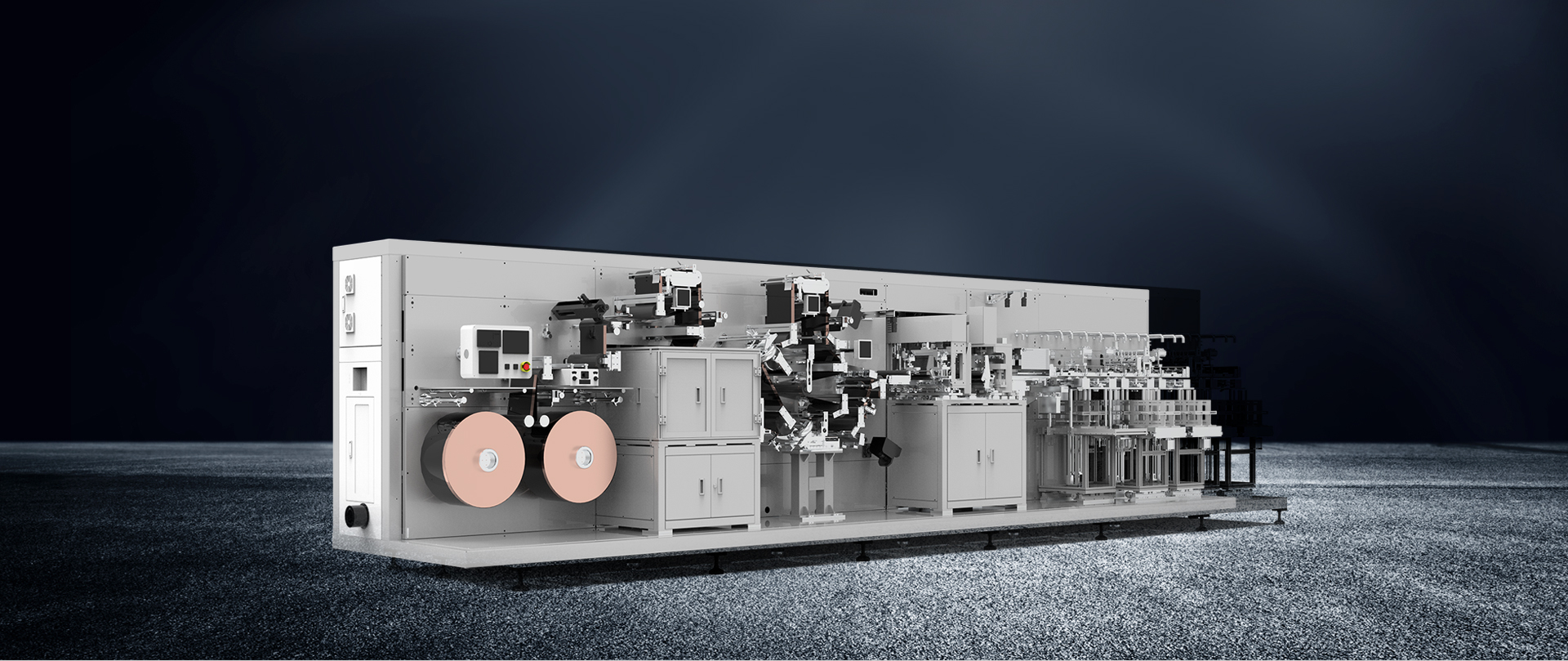

Separate hardware die cutting, compatible with most tab sizes; V-angle die dimensions and forms can be replaced, providing more flexibility in usage.

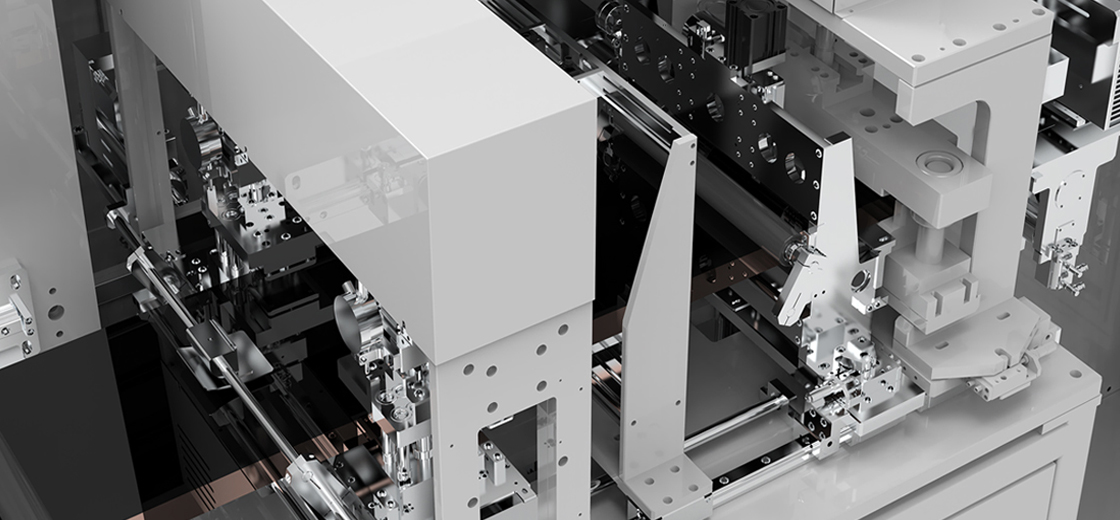

Equipped with ultrasonic dust removal function, wind knife dust removal at the laser cutting section and tabs, brush dust removal after trimming, and waste material handling by the press.

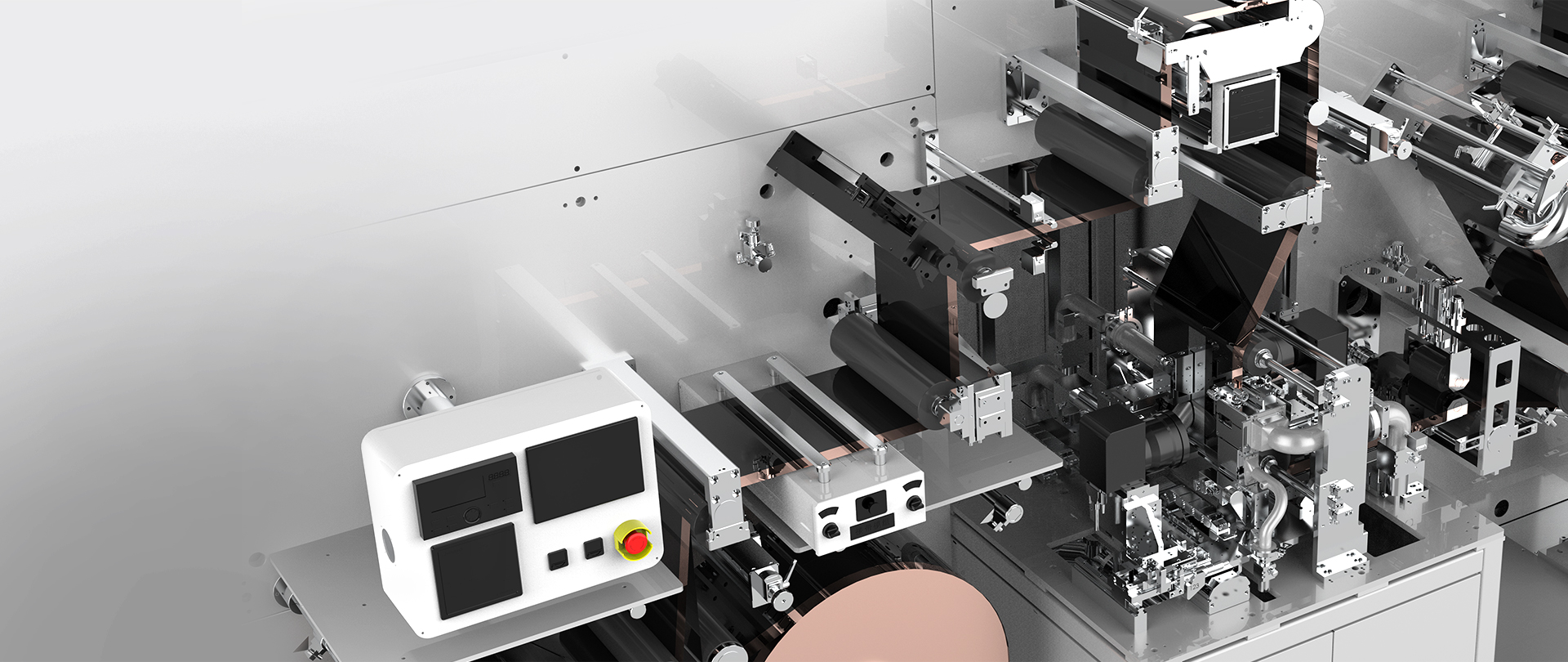

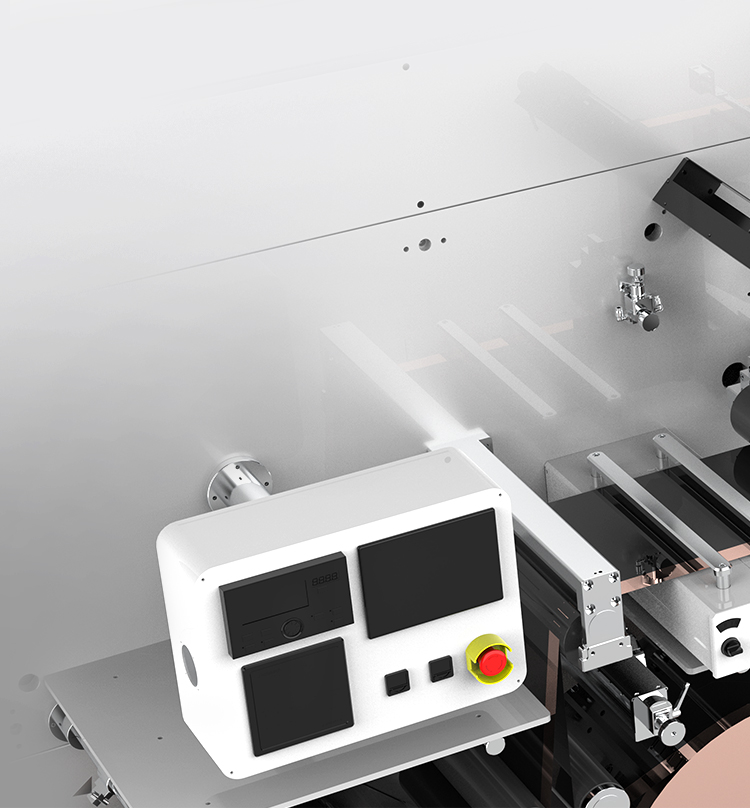

Constant tension control system, correction system,
and CCD detection system form a closed-loop control,
enabling timely automatic correction of the tape to
ensure precise movement.

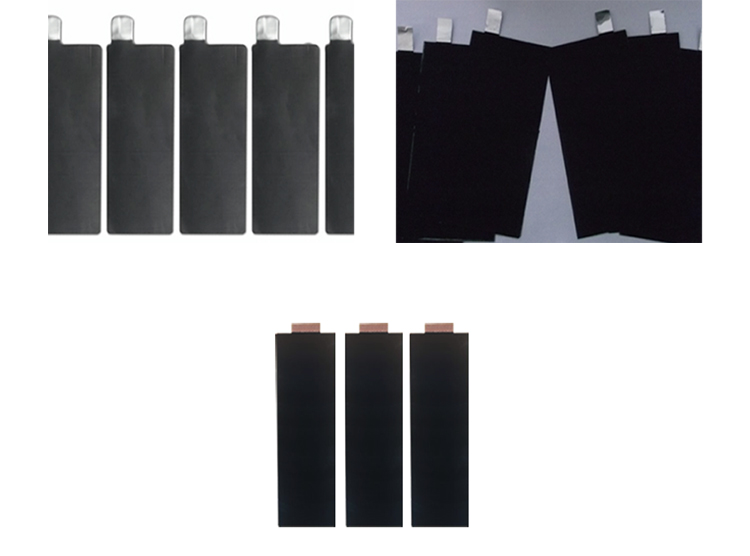

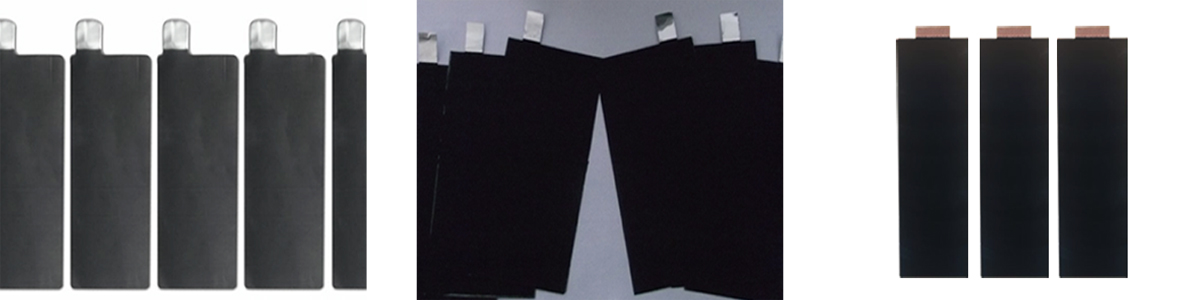

Sealing welding of top covers in the production line of square aluminum shell batteries for new energy lithium batteries
| Machine model | GWK-NCQ02 |
|---|---|
| Web width range | 60-320mm |
| Slit/Cut width (per strip) | 50-250mm |
| Web tension control | 5-100 N; stability ≤ ±2 N |
| Heat-affected zone (HAZ) | ≤100μm |
| Recast layer (bead) height | ≤10μm |
| Laser-cut burr | Longitudinal ≤ 7 µm; Transverse ≤ 7 µm |
| Production efficiency | 300PPM |
| Slitted-strip width tolerance | ≤±0.2mm |
| Tab dimension tolerance | ≤ ±0.3 mm |
| Rewind alignment accuracy | ≤ ±1 mm |
| Mechanical slitting burr | Longitudinal ≤ 7 µm; Transverse ≤ 10 µm |
| Machine weight | 10T |
| Overall Dimensions | L8250*W1850*H2400（mm） |
