New energy series

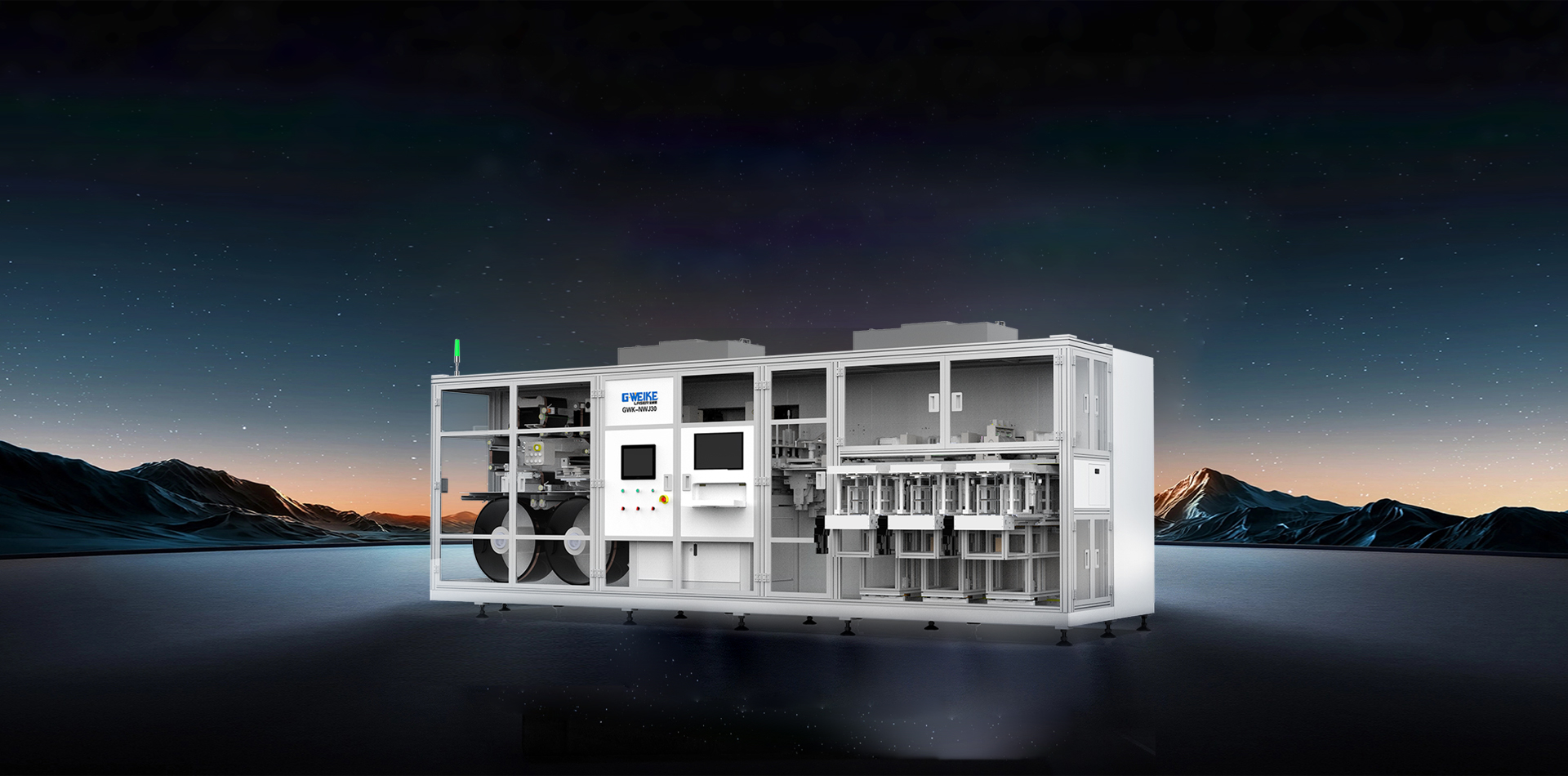

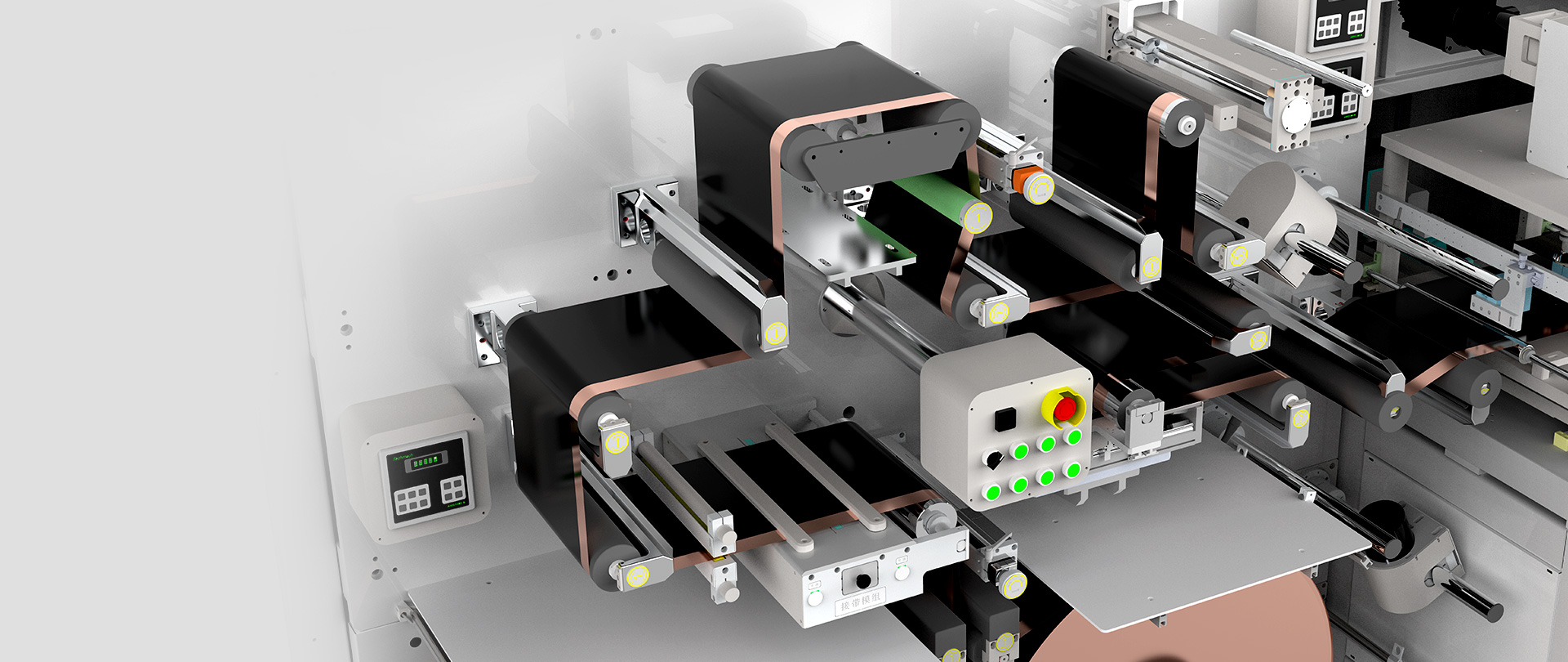

Hardware Die Cutting Machine
Video Show ![Video Show]()

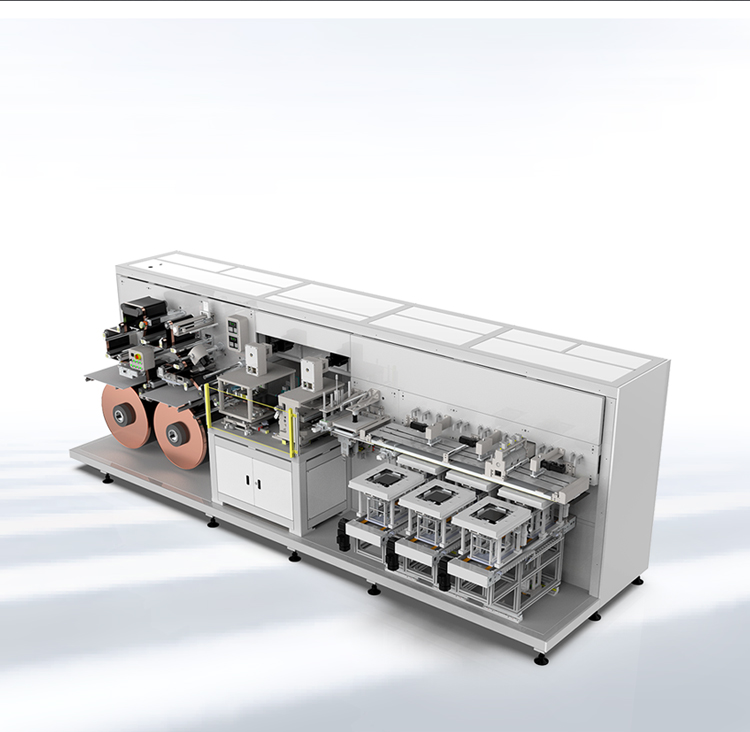

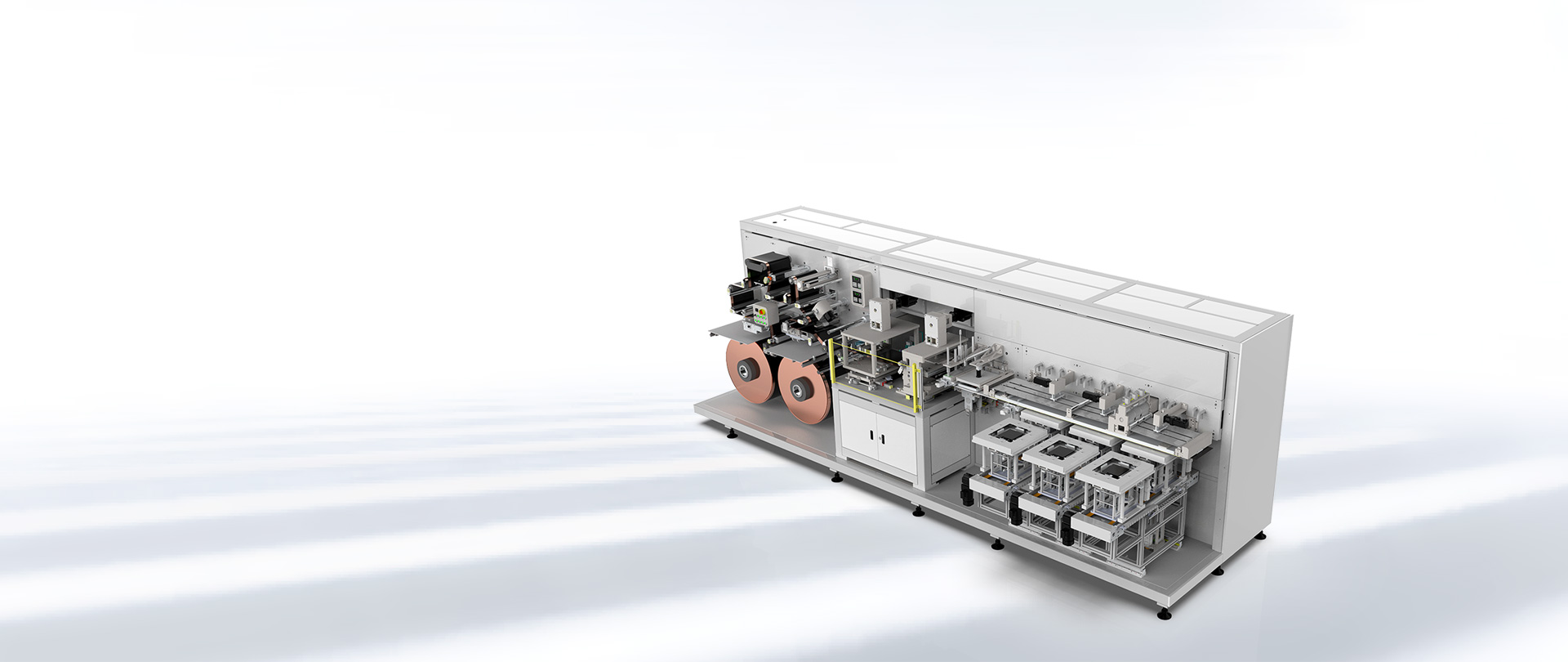

Adaptable to various width and size requirements,
multiple material box collection, continuous material
change without stopping the machine, achieving
a production efficiency of over 240PPM.

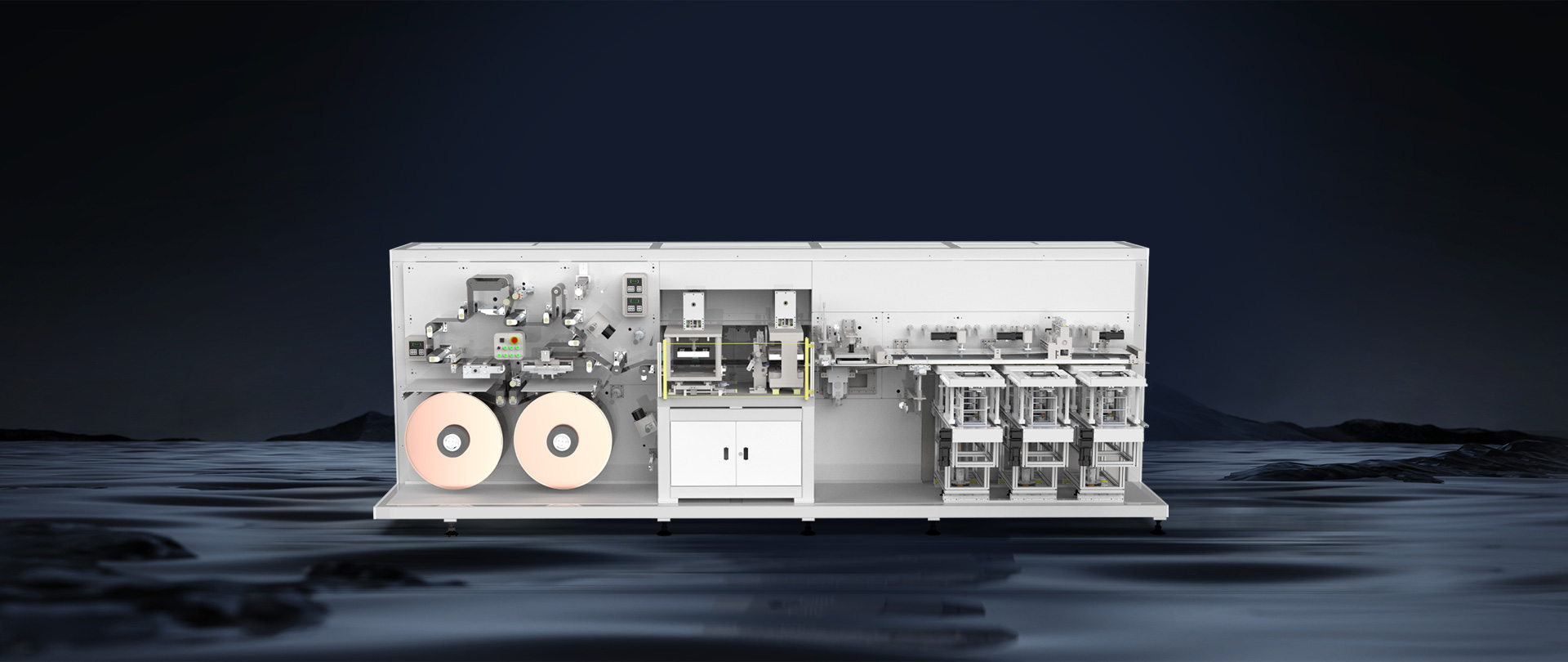

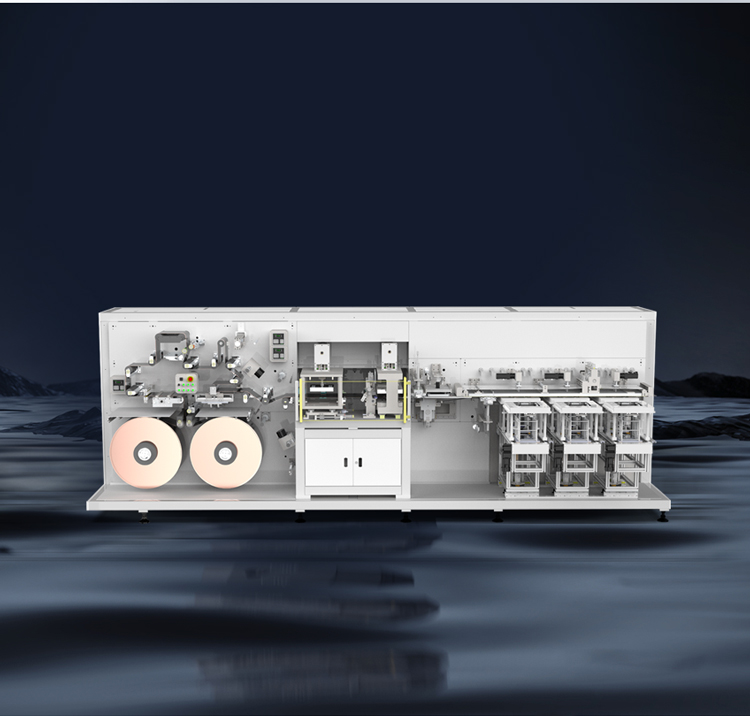

Unwinding, extreme ear die cutting, tab chamfering, tab cutting, and multi-level waste powder handling ensure higher quality of the tabs.

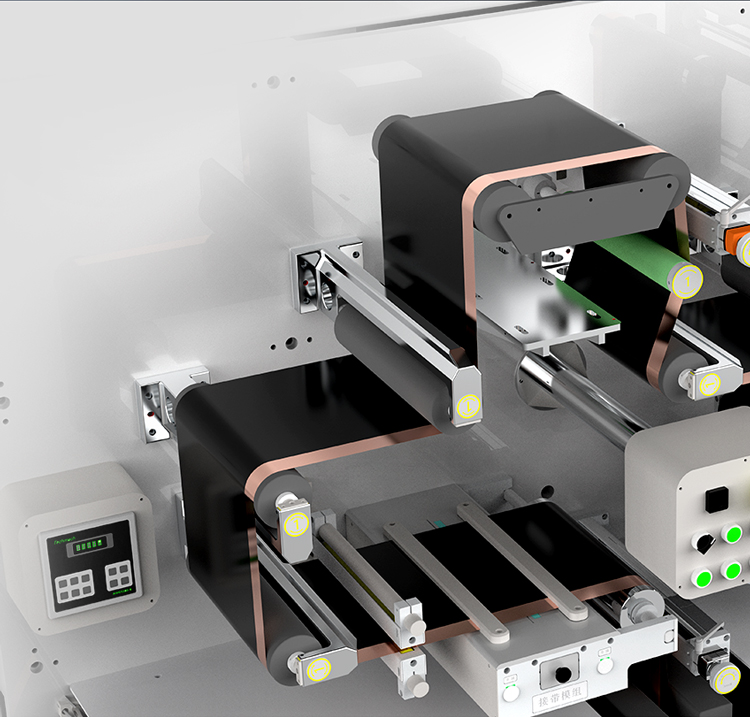

Tension closed-loop control,
minimal tension fluctuations during
operation, high equipment stability.

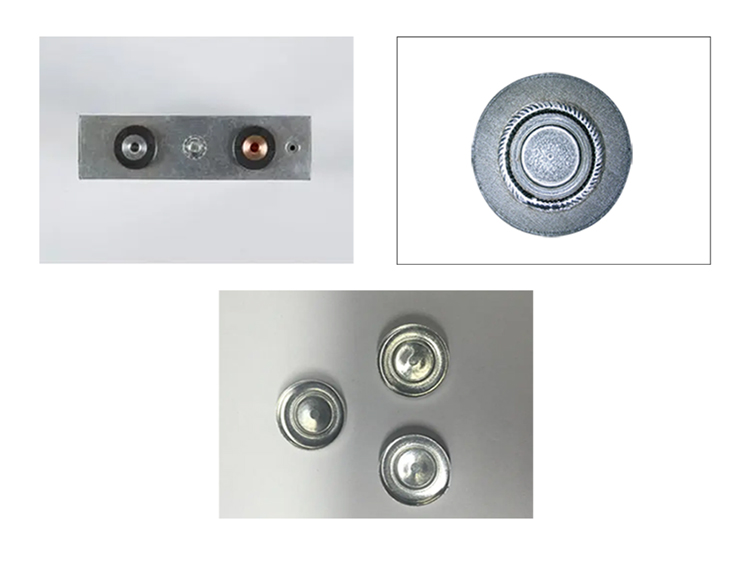

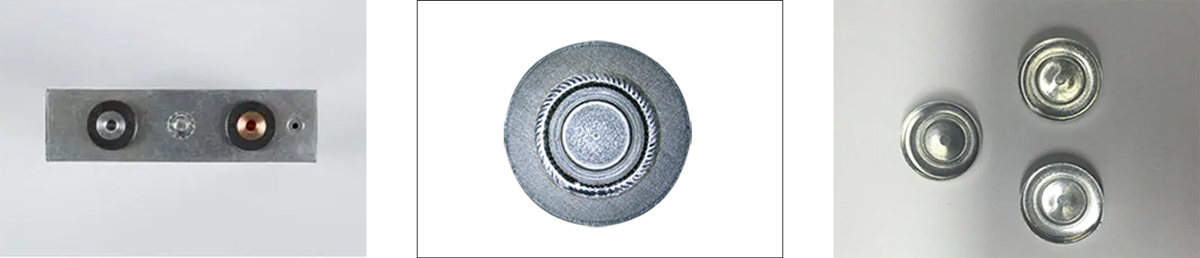

Production process of positive and negative electrode tabs for lithium-ion batteries
| Machine model | GWK-NWJ30AA |
|---|---|
| Compatible Width | 120-600mm |
| Tension Fluctuation | ±5% (stable operation) |
| Correction Accuracy | ±0.1mm |
| Positioning Accuracy | ±0.1mm |
| Cutting Accuracy | ±0.15mm |
| Horizontal Burr | Vk≤10um |
| Vertical Burr | Vh≤7um |
| CCD Inspection Accuracy | ≤±0.1mm |
| Production Efficiency | 240PPM |
| Alignment of Receiving Material | ±0.5mm |
