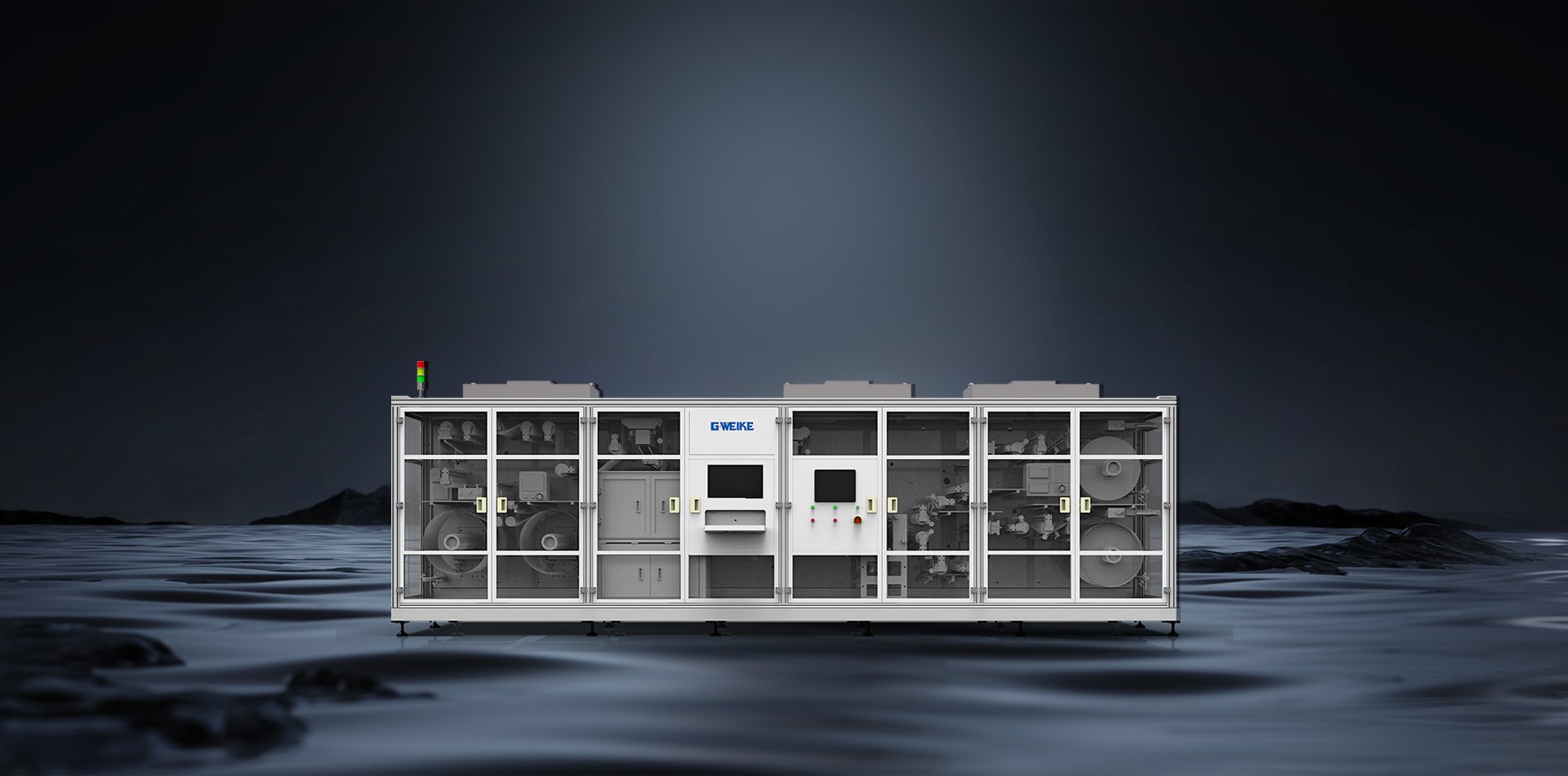

High-Speed Laser Die Cutting and Slitting Integrated Machine
Video Show ![Video Show]()

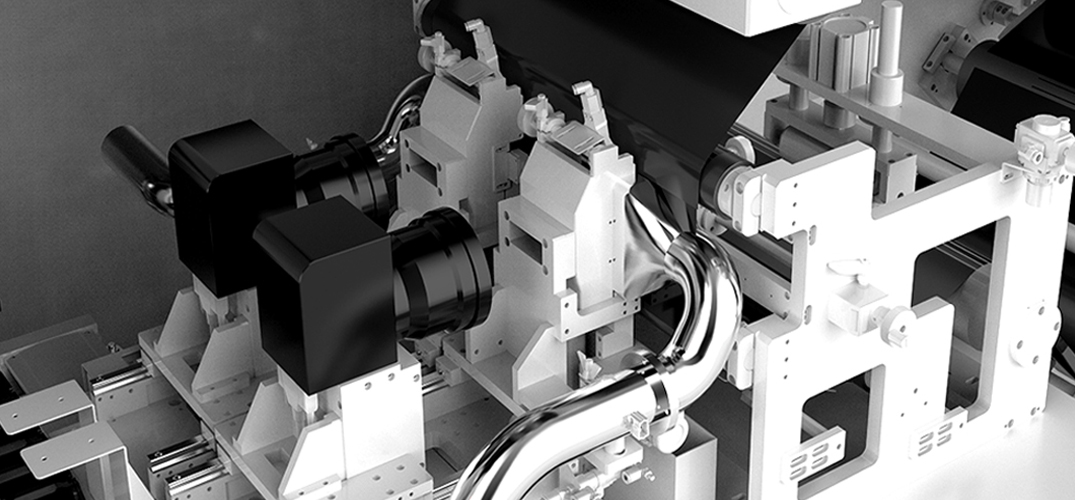

Laser cutting uses non-contact cutting, with 4 cutting heads working simultaneously, doubling production efficiency; no consumables, positive and negative side blowing to remove dust through convection.

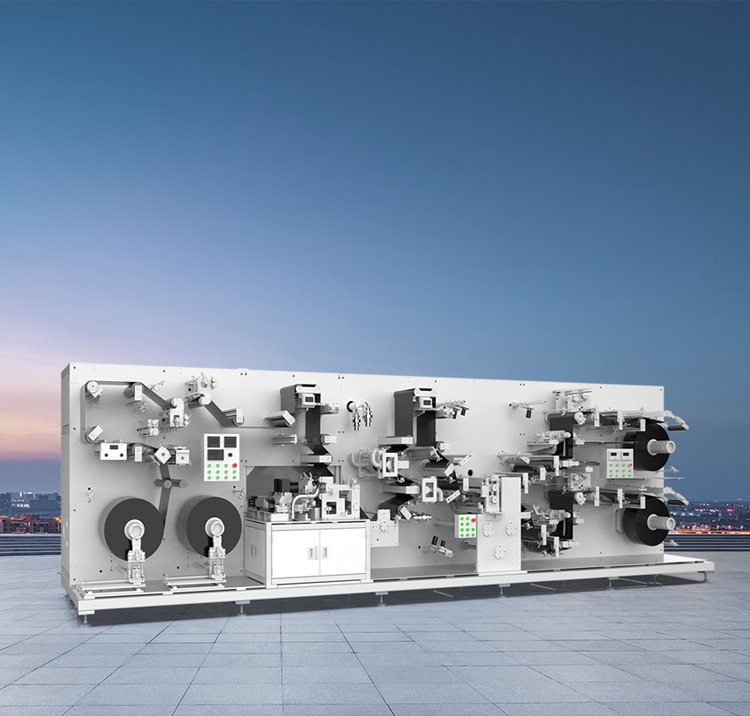

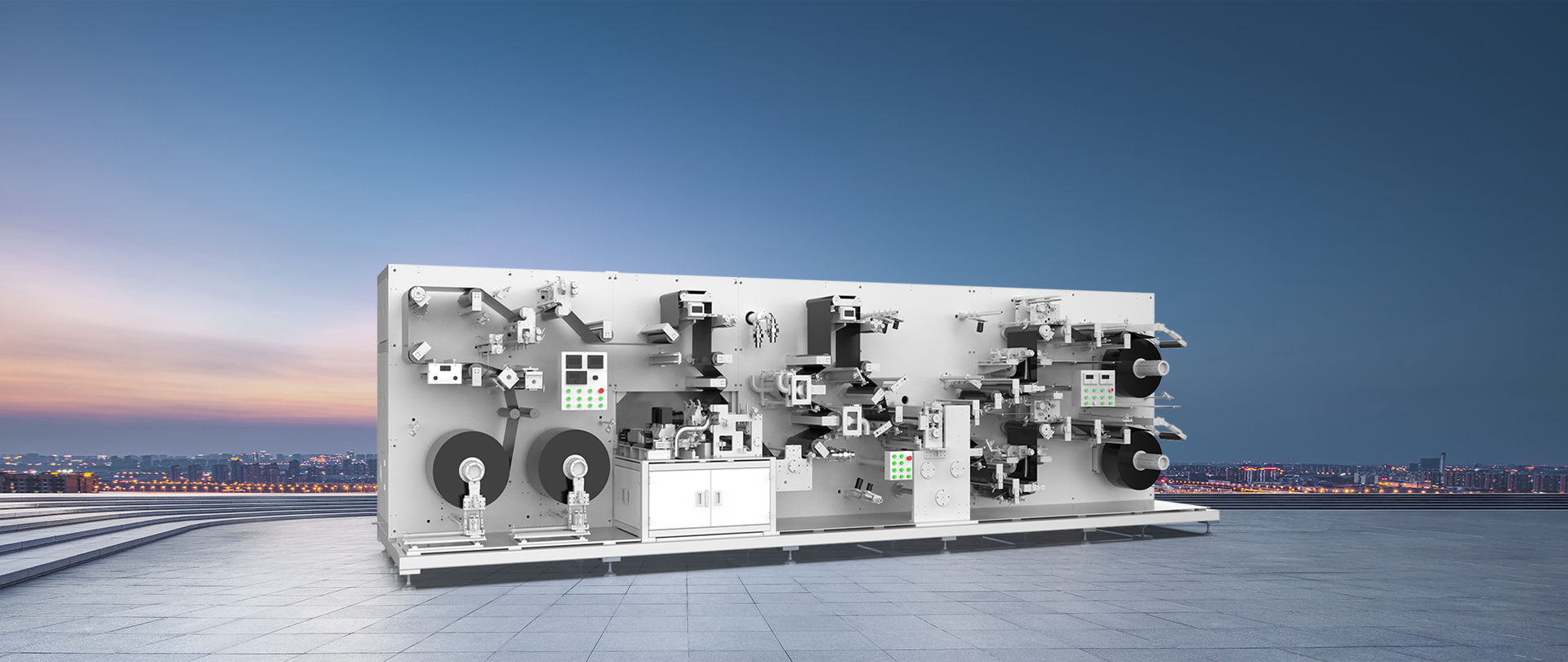

The equipment adopts a single-side large sheet + cantilever support structure, capable of achieving single or double-sided extreme ear cutting shaping and slitting function, ensuring high efficiency, flexibility, and quality.

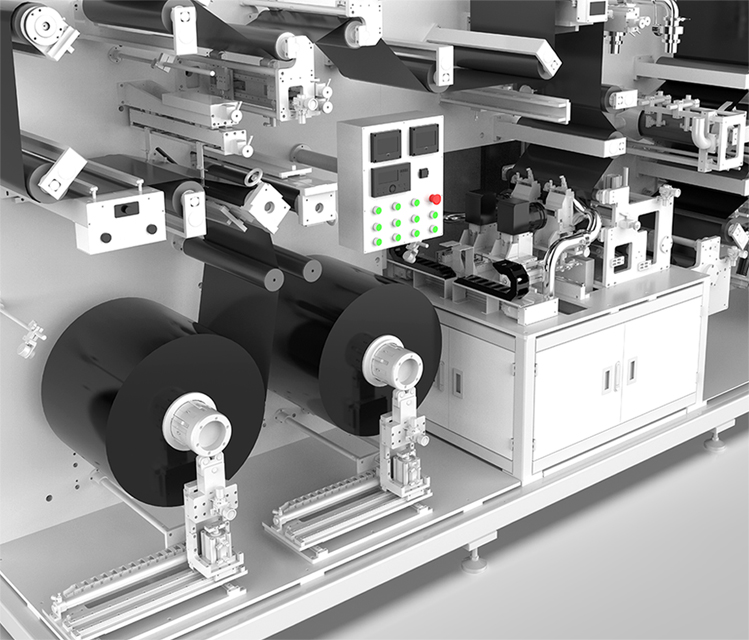

Constant tension control system, correction system, and CCD detection system form a closed-loop control, enabling timely automatic correction of the tape to ensure precise movement.
Formation of positive and negative electrode tabs for power battery cells
| Machine model | GWK-NFG05AA |
|---|---|
| Web width range | 150-500mm |
| Web tension control | 5-100 N; stability ≤ ±2 N |
| Heat-affected zone (HAZ) | ≤100μm |
| Recast layer (bead) height | ≤10μm |
| Laser-cut burr height: | longitudinal ≤ 7 µm; transverse ≤ 7 µm |
| Production efficiency | 120-200m/min |
| Slit width tolerance | ≤±0.2mm |
| Edge wander | ≤2.0/1000mm |
| Rewind alignment accuracy | ≤±0.5mm |
| Slitting burr height | longitudinal ≤ 7 µm; transverse ≤ 10 µm |
| Machine weight | 12T |
| Overall Dimensions | L7100*W1900*H2400（mm） |
