One machine meets the dual requirements of deburring and chamfering, handling various processes such as surface deburring and chamfering around holes and slots – truly delivering all-in-one functionality.

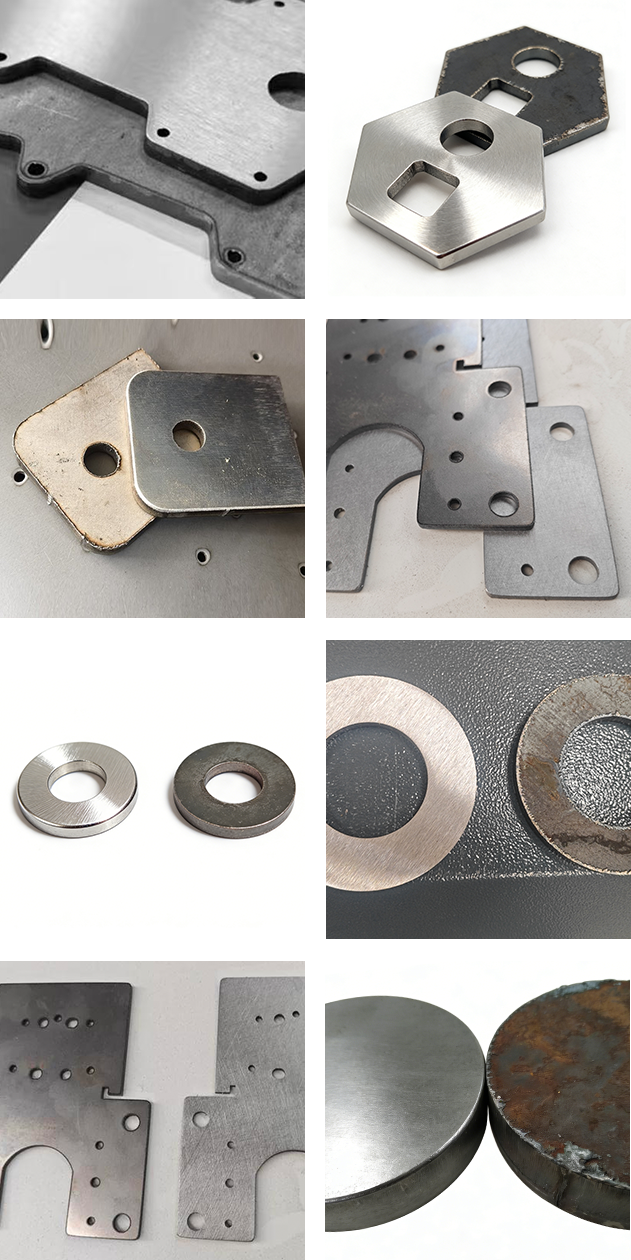

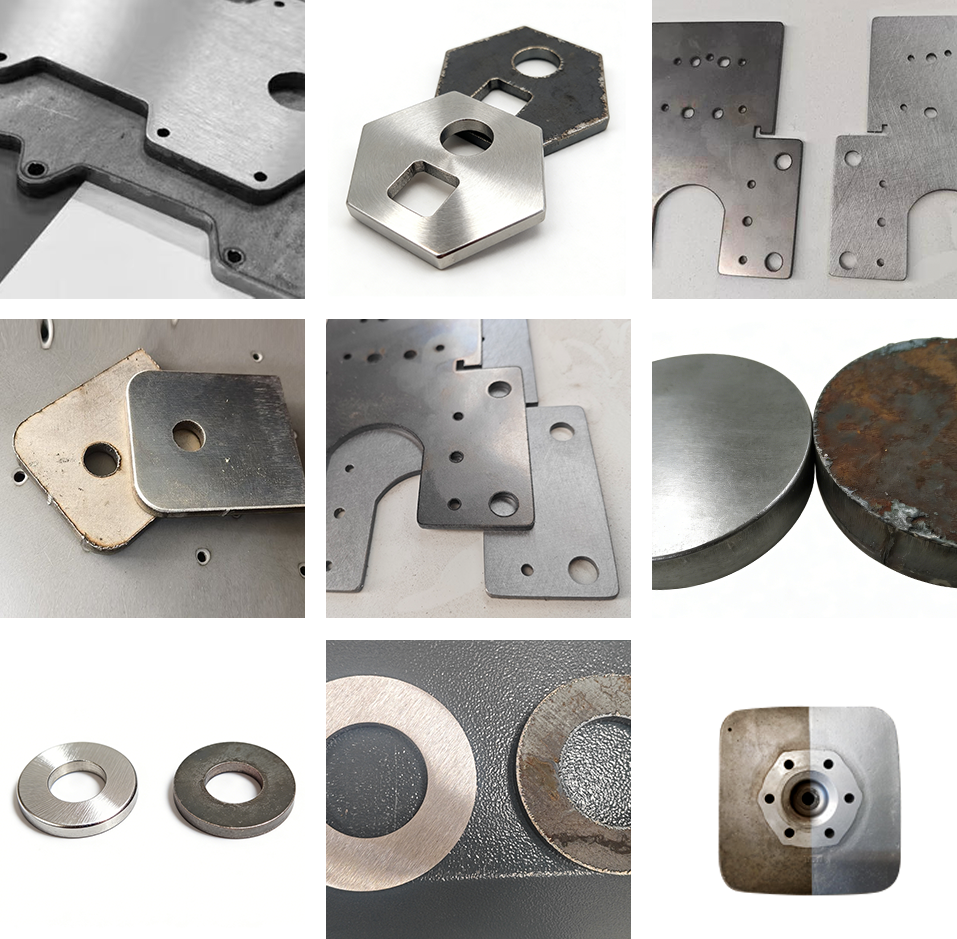

It can easily process common materials including carbon steel, stainless steel and aluminum alloy, as well as special materials such as brass, red copper, pickled plate, galvanized plate, silicon steel plate, electrolytic plate, titanium alloy and manganese alloy.

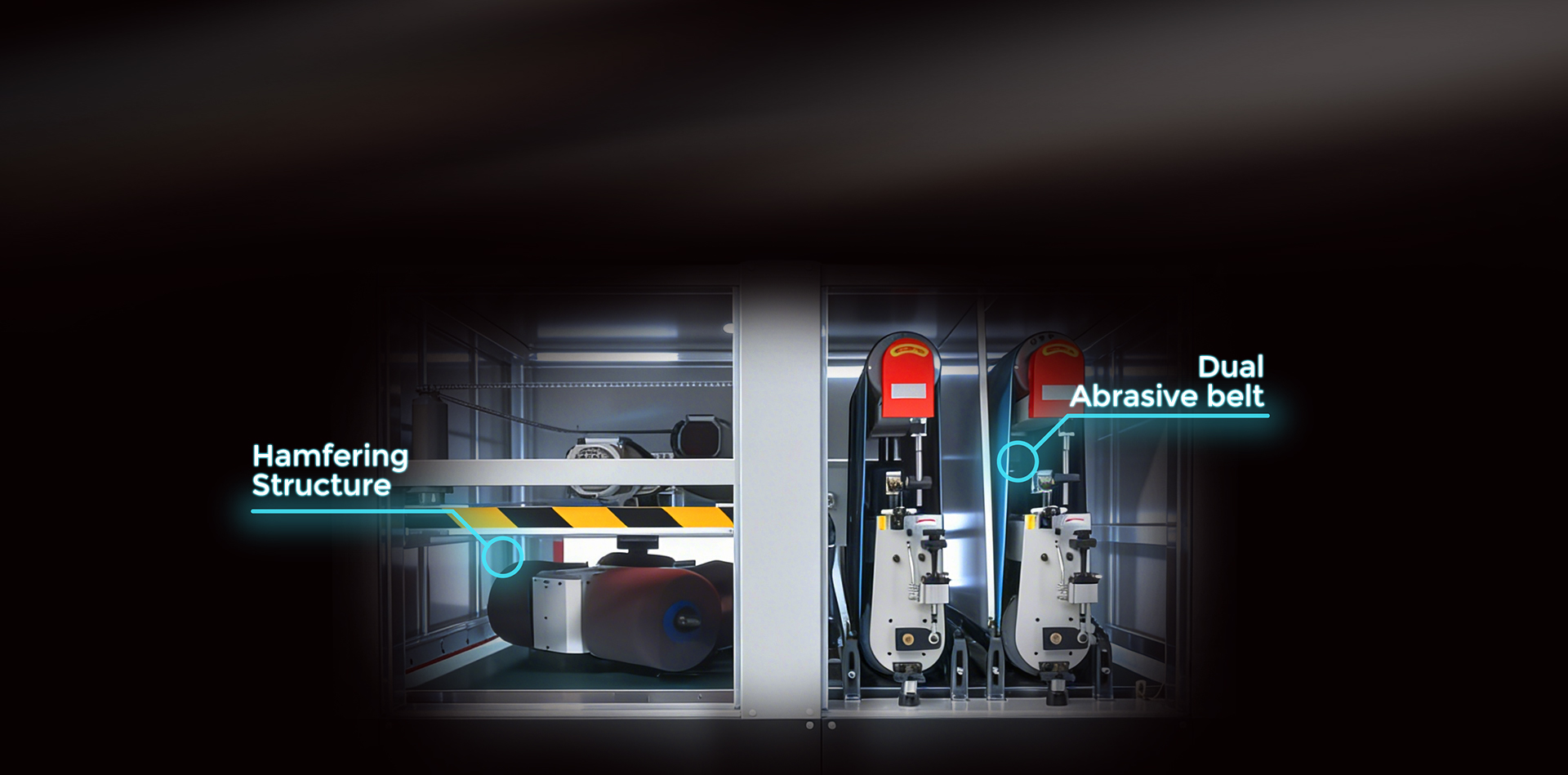

Dual abrasive belt + chamfering structure, equipped with high-efficiency transmission components such as a large torque precision reducer, precision gears, and screw shaft bearings. The entire transmission chain is precisely calculated, with a scientifically matched inertia and torque ratio, ensuring stability and durability under heavy load or high-speed operation.

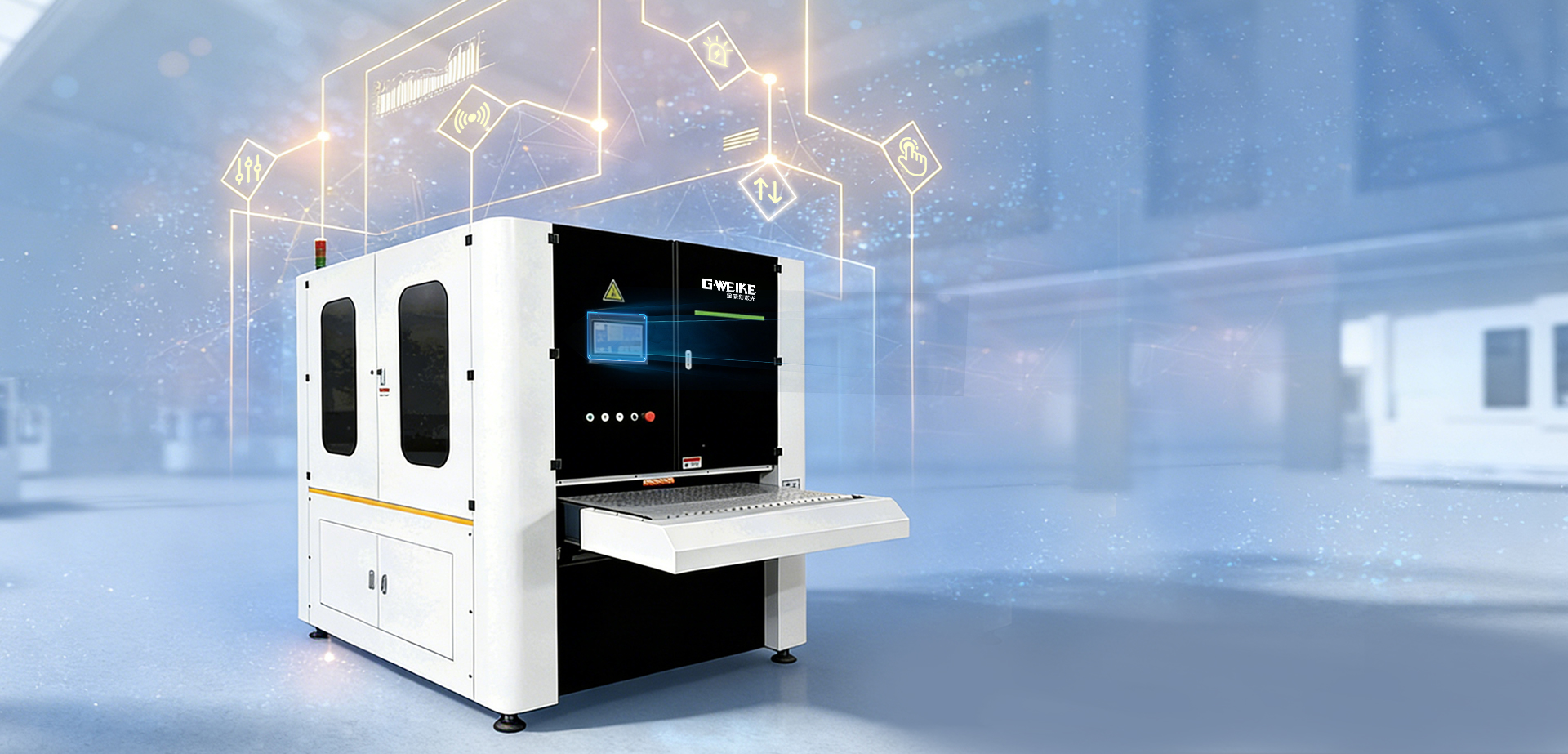

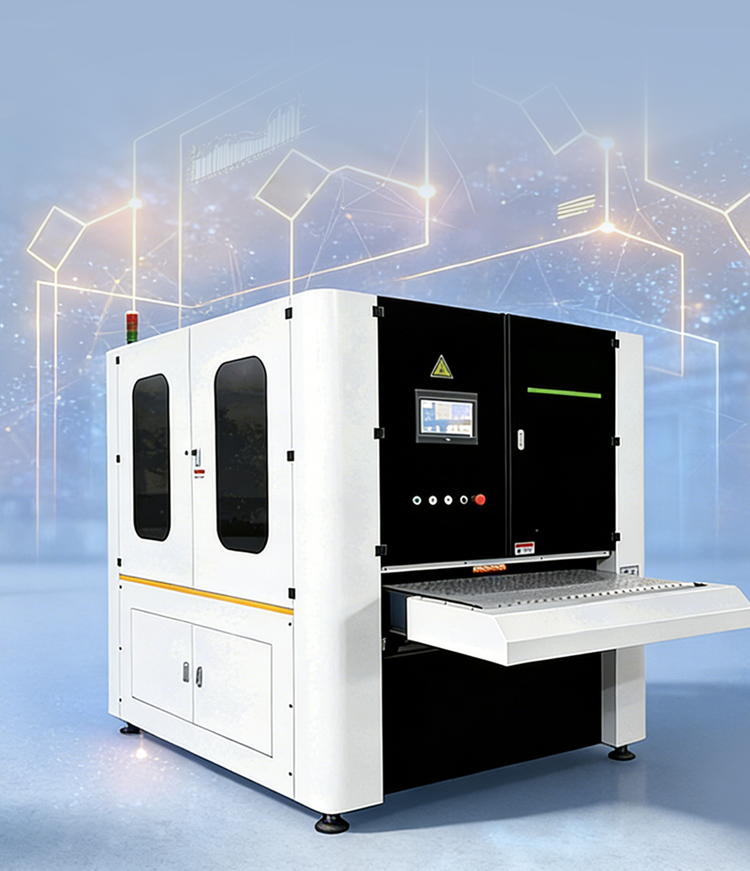

Equipped with a PLC intelligent control system, integrating automatic deviation correction, automatic lifting, automatic sensing, and automatic fault alarm functions. Supports one-key start, with simple and fast system debugging, significantly reducing the operational threshold.
Vehicle manufacturing, shipbuilding, electrical manufacturing, fan manufacturing,construction machinery,agricultural and forestry machinery, food machinery,textile machinery, petroleum machinery, laser external processing
Deburring and Chamfering Machine
| 1-90MMProcessing Thickness | PLC + Touch ScreenControl System |
| Magnetic suction + negative pressure (Optional)Worktable | ≥20MMProcessing Length |
| 1000MMProcessing Workpiece Width | 2Number of Abrasive Belts |
| 2220*1020Abrasive Belt Size | 36KWTotal Machine Power |
| 0-16r/minFeeding Speed | 3.6*1.64*2.2MOverall Dimensions |
| Diameter 190MM Rubber Roller Diameter | Touch Screen PLCAdjustment Method |
| TR Auxiliary driven roller bearing | Approx. 3.5 Tons Total Machine Weight |
