Ultrafast Series
Photovoltaic Glass Punching Machine
Video Show ![Video Show]()

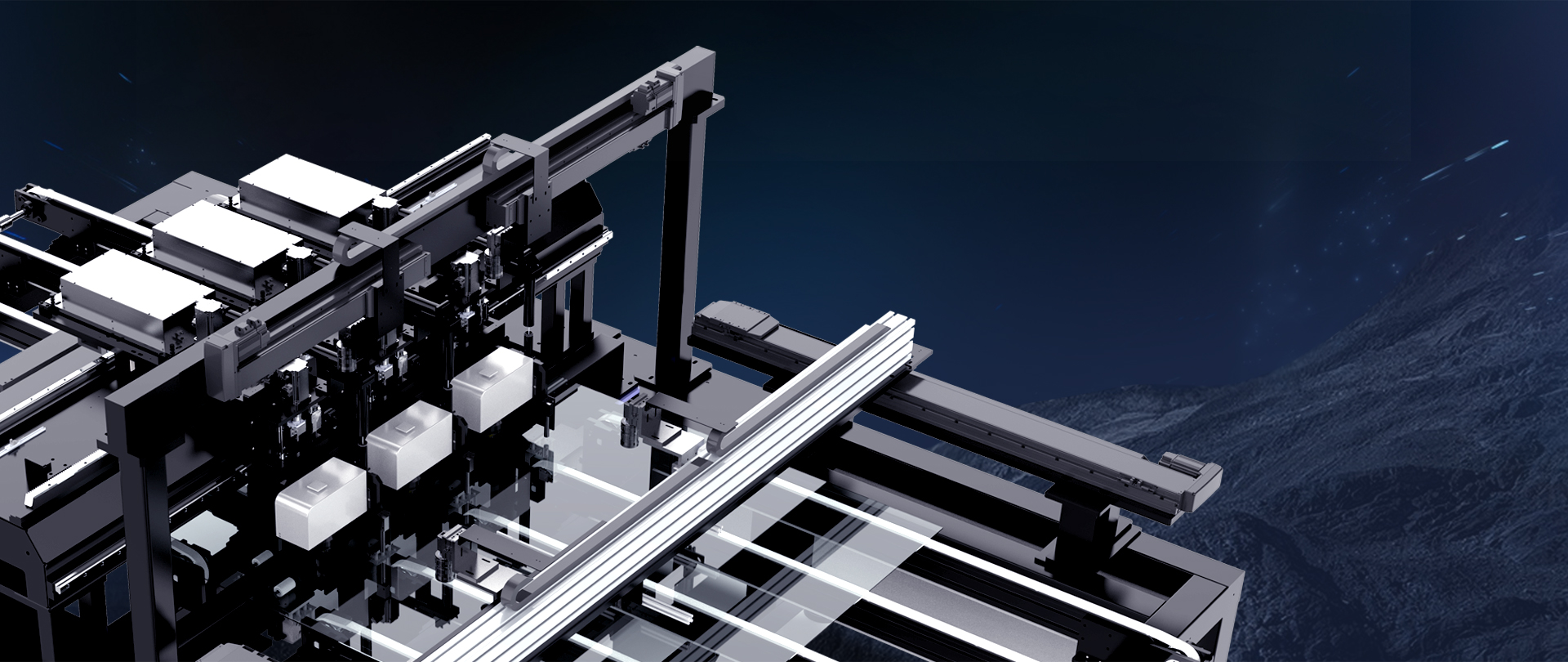

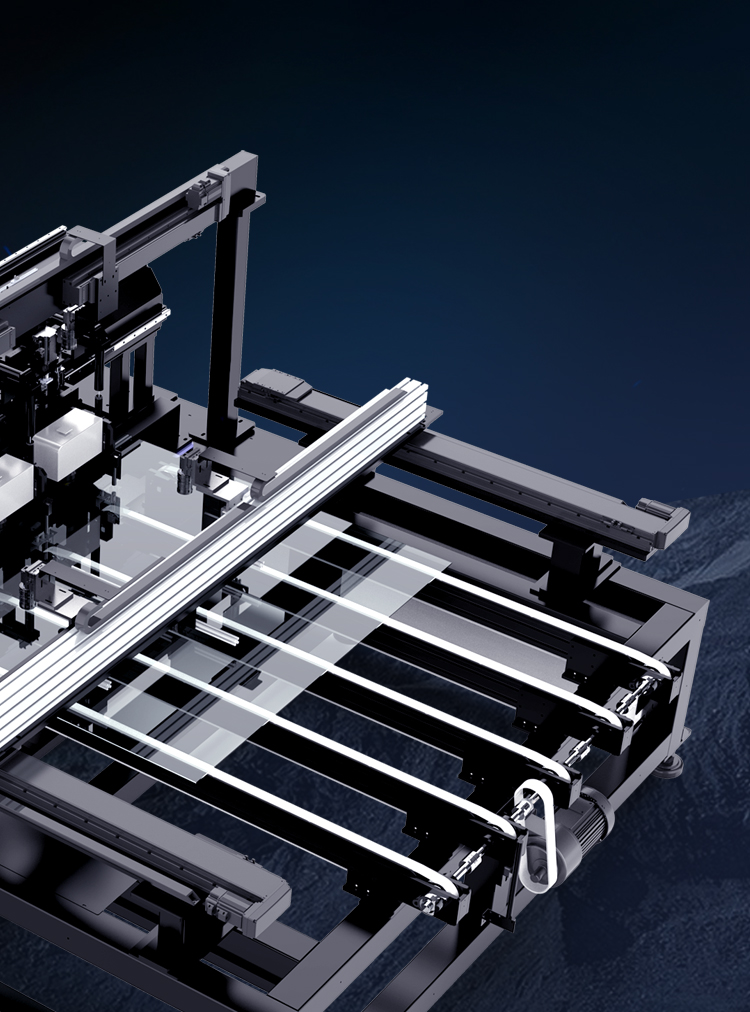

High efficiency with three heads simultaneously processing,
using belt line to transfer products, mechanical initial positioning
and visual precise positioning, high processing accuracy, no need
to change fixed fixtures when changing products, can respond to
production changes anytime.

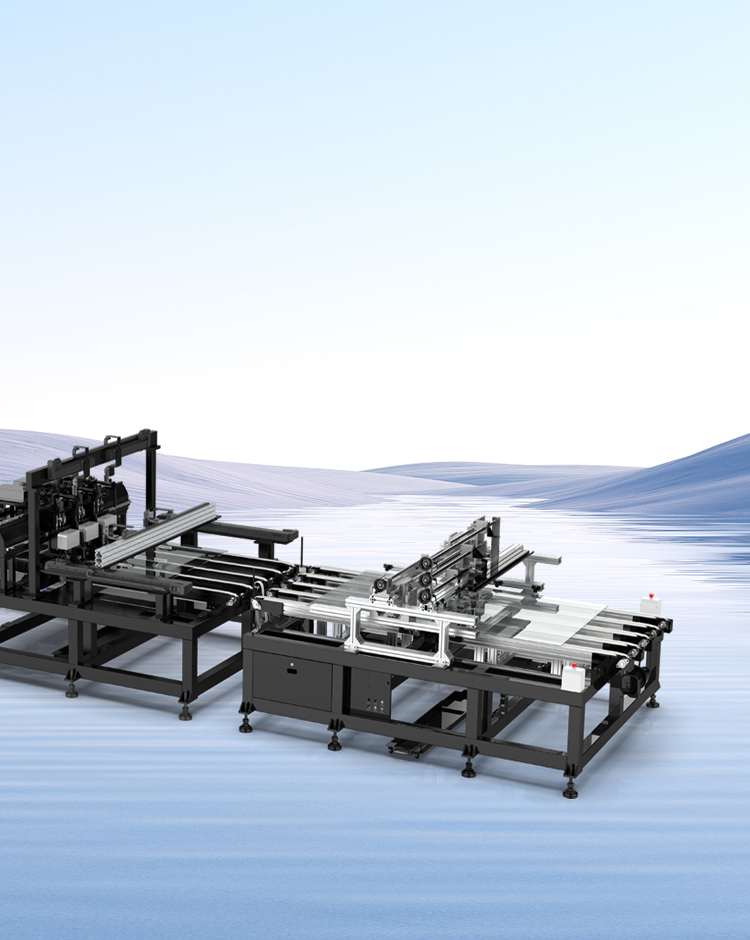

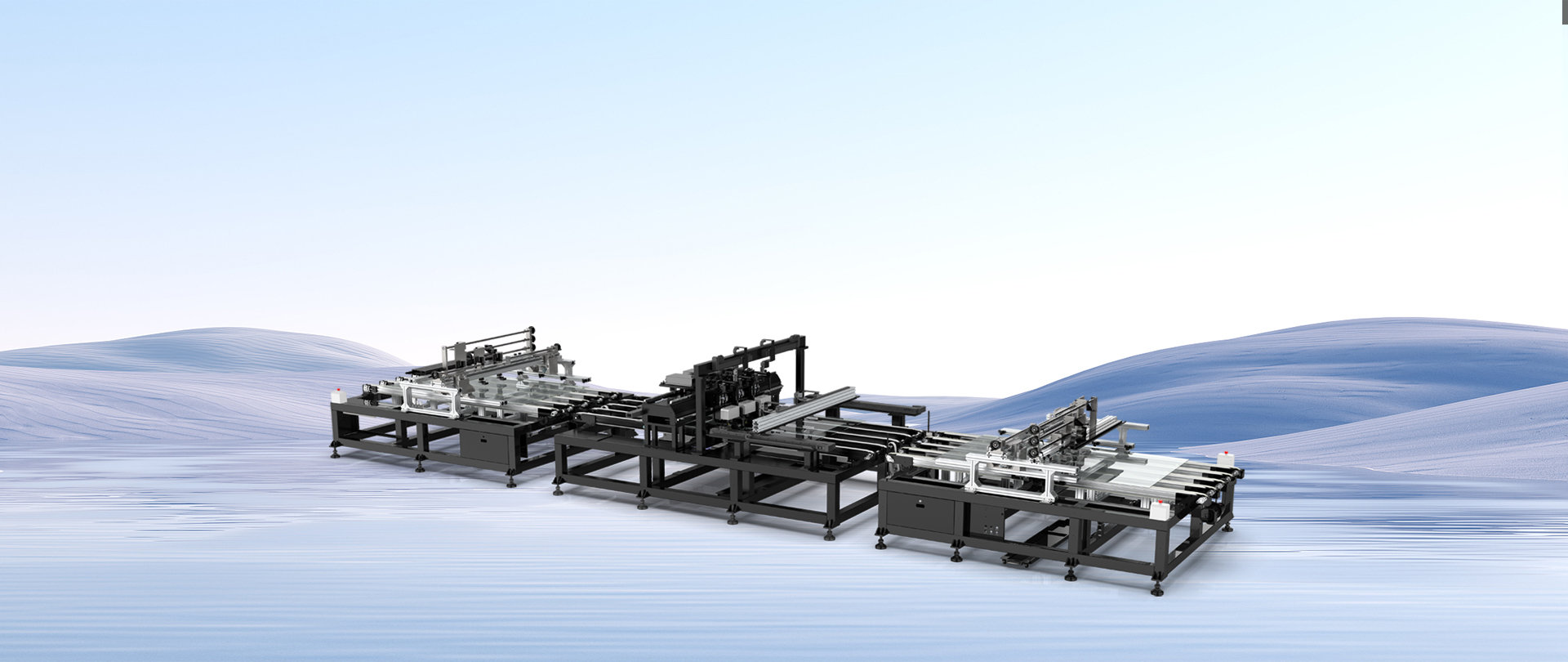

The feeding and unloading methods can be freely changed according to customer site requirements, allowing for connection with glass loading machines, standalone processing, as well as integration with cleaning machines, silk screen printers, and tempering furnaces for automated processing.

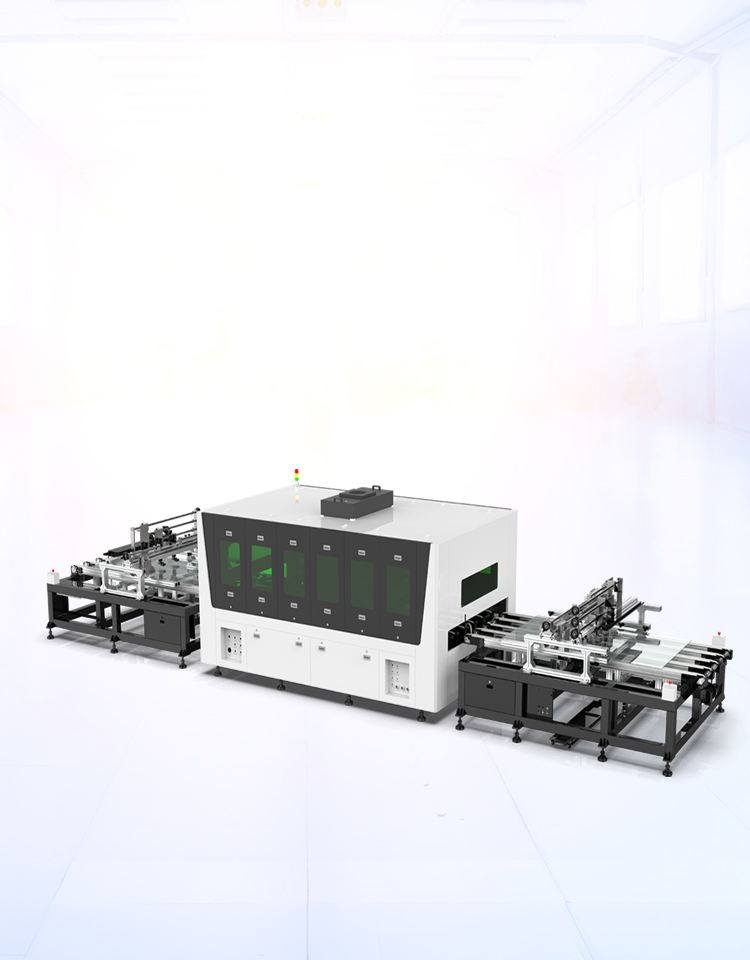

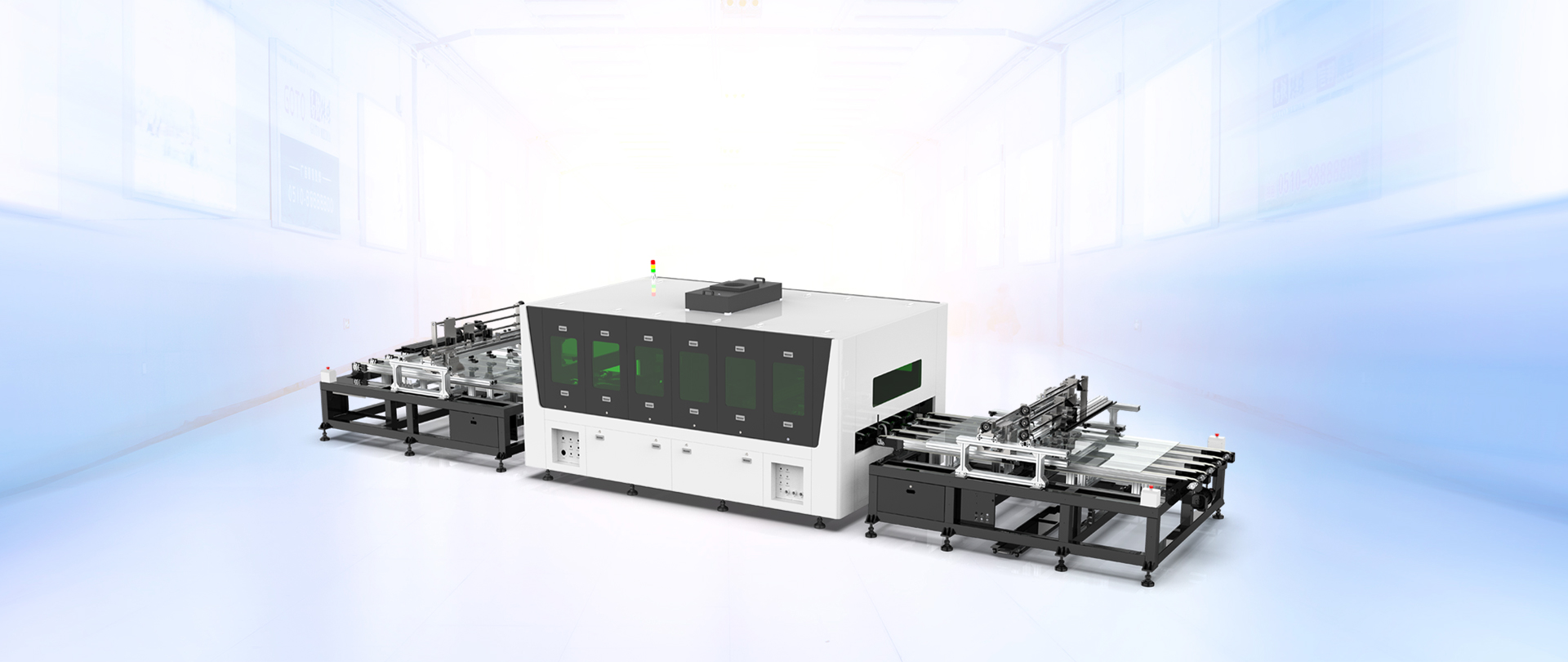

Utilizing high-performance narrow pulse width, high-frequency infrared MOAP laser, laser processing through mirror transmission, compatible with circular, square, polygonal, and irregular hole processing, non-contact, stress-free, no consumables.
Photovoltaic backplane glass punching, automotive glass drilling, camera cover glass drilling, consumer electronics cover glass drilling
| Machine model | GKS-1210-GD |
|---|---|
| Number of cutting heads | 3 |
| Processed glass specifications | Embossed glass |
| Processed glass thickness | ≤2.5mm |
| Processed glass size | 600*600--2500*1500 mm |
| Drilling accuracy | ≤±0.1mm |
| Positioning accuracy | ±0.5mm |
| Drilling time | ≤ 6S (⊘12mm, T:2mm) |
| Laser type | Red light MOPA laser, power 80W * 3 |
| Mirror scanning range | 70mm*70mm/td> |
| Equipment power supply | AC220V 50-60HZ |
| Equipment power | 11.5 KW |
| Equipment weight | Approximately 5000KG |
| Equipment dimensions | 11030mm*2640mm*2080mm |
