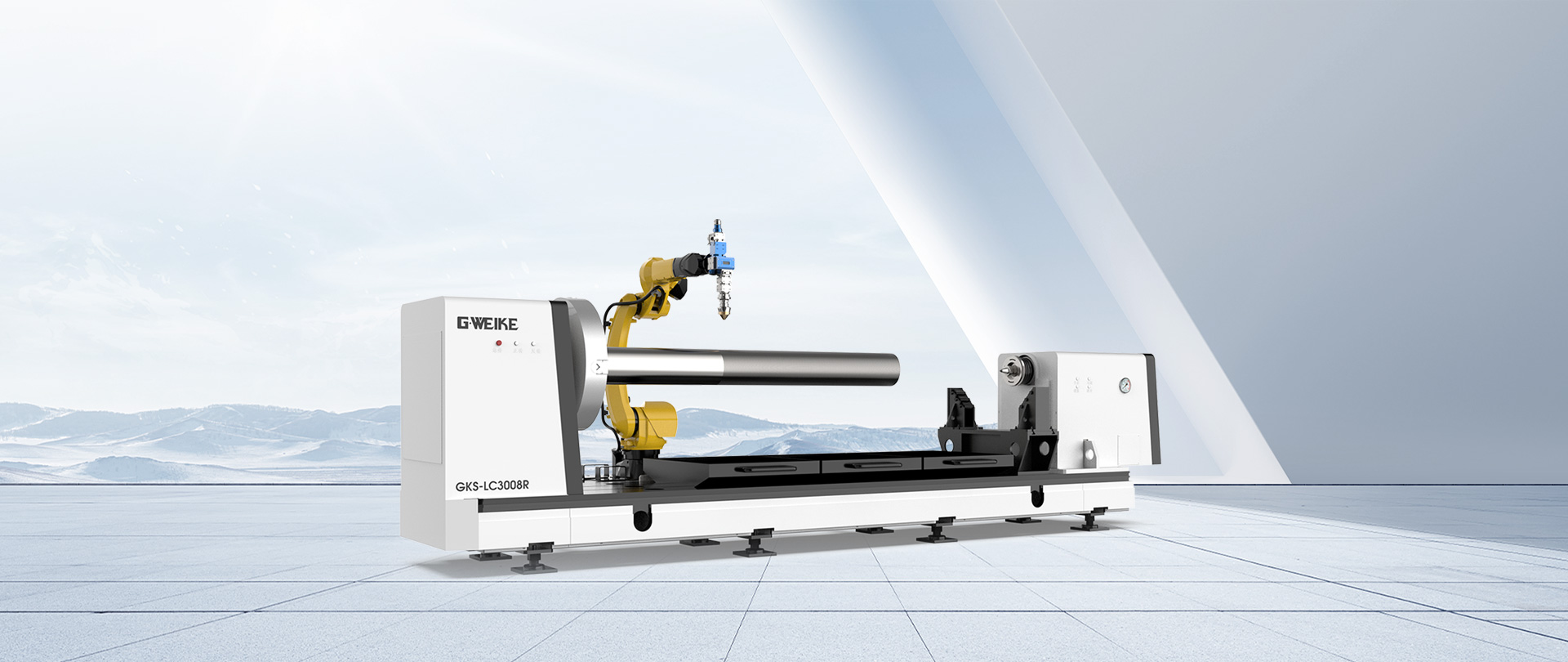

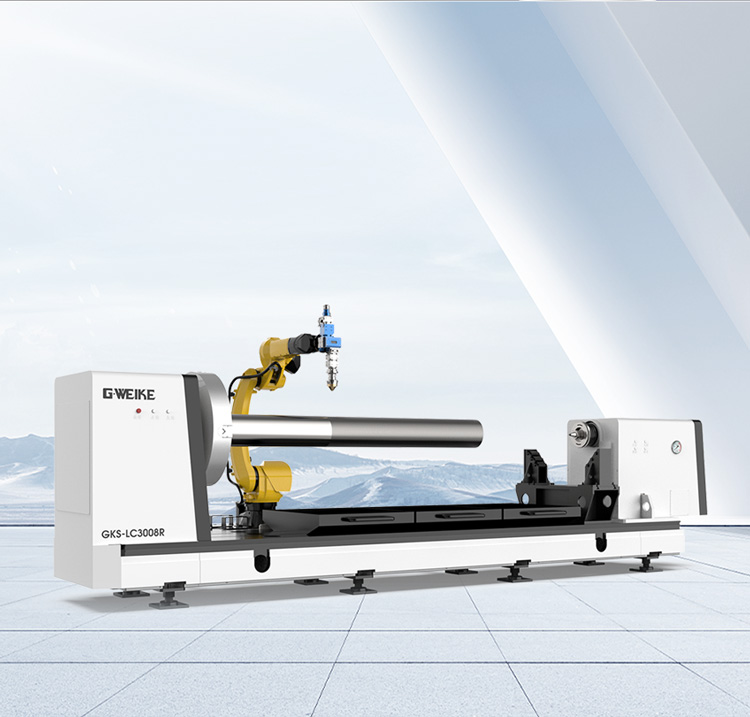

GKS-LC3008R
Robotized Intelligent Laser High-Speed Cladding
Video Show ![Video Show]()

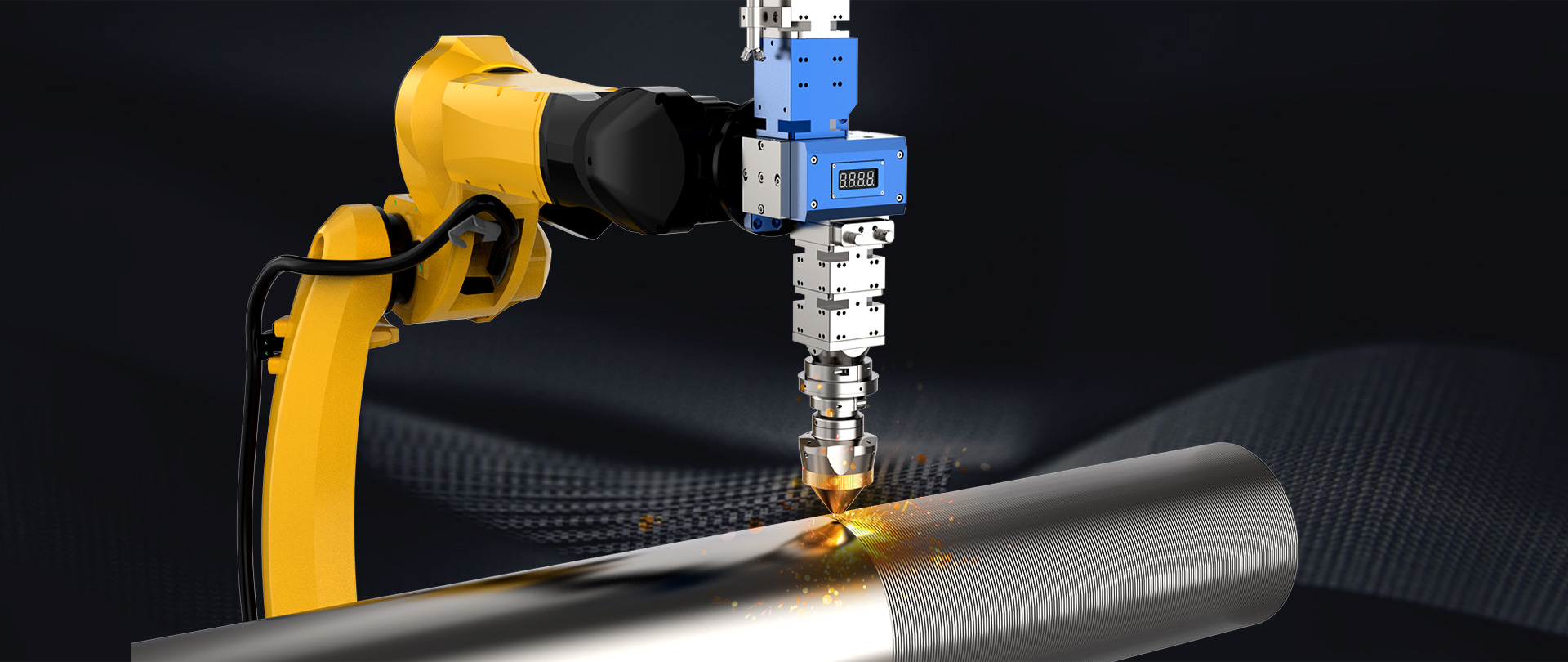

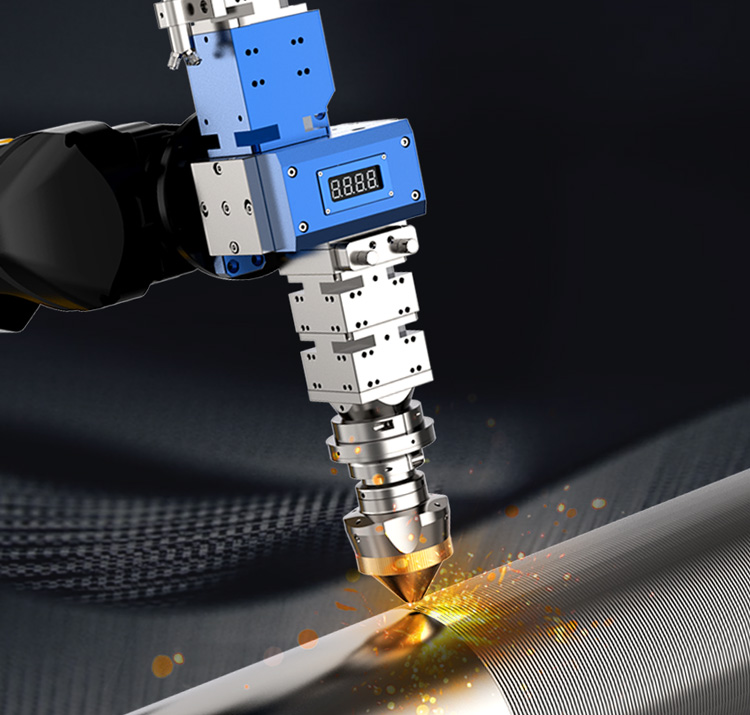

Production efficiency three times that of traditional cladding industries,
with a single device reaching 1 m²/h.
The cladding layer is smooth, suitable for direct grinding and polishing.

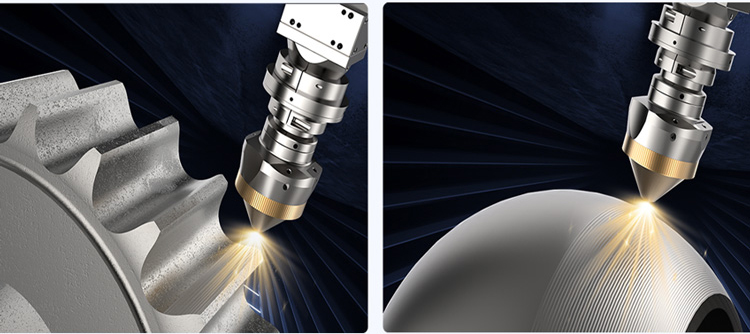

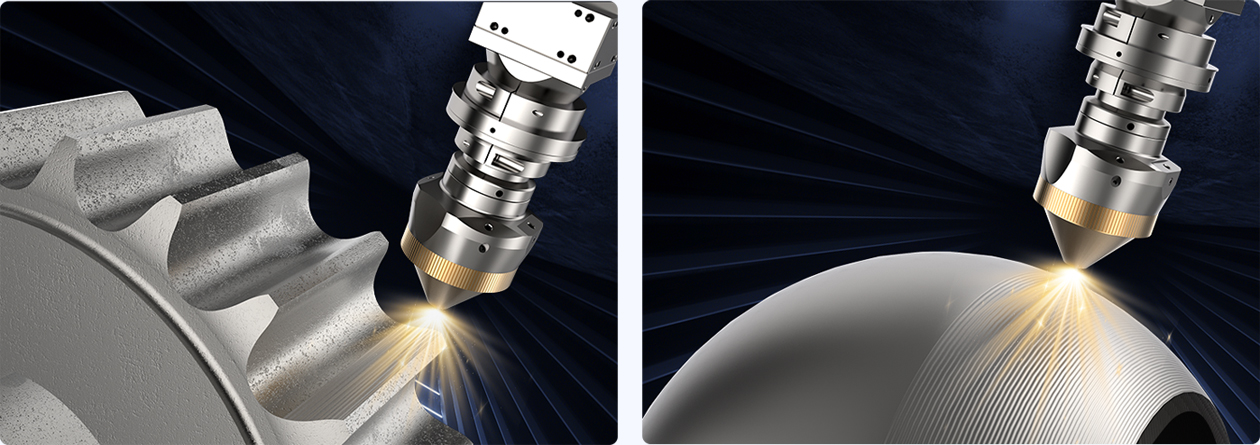

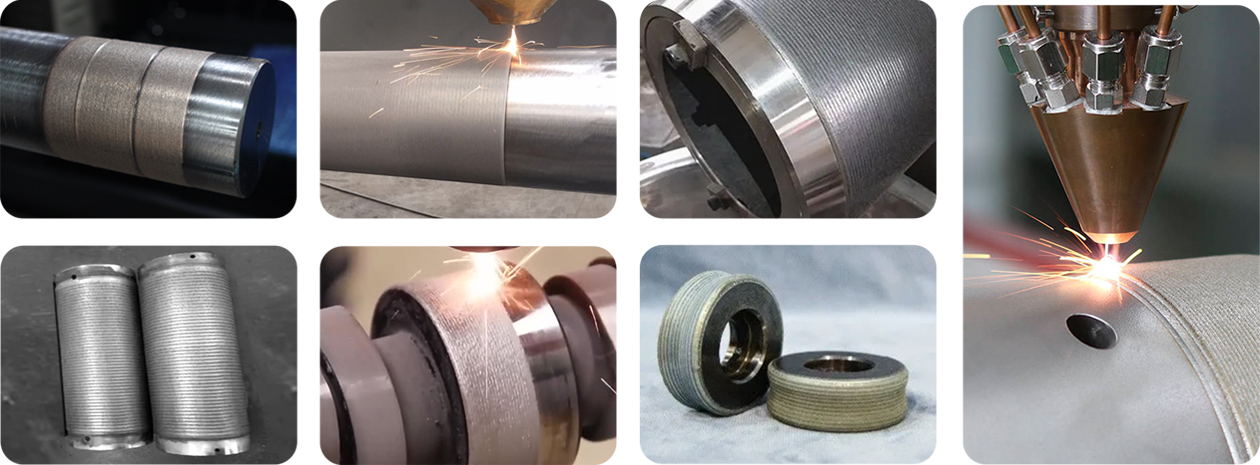

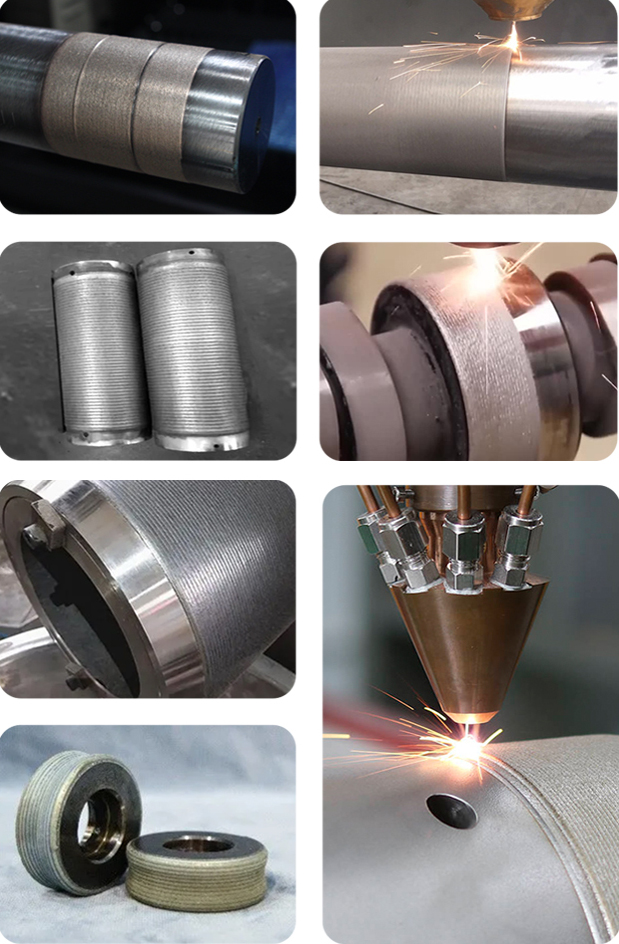

Suitable for laser cladding processing of simple surfaces like shafts and planes, as well as complex surfaces like spheres and curves.

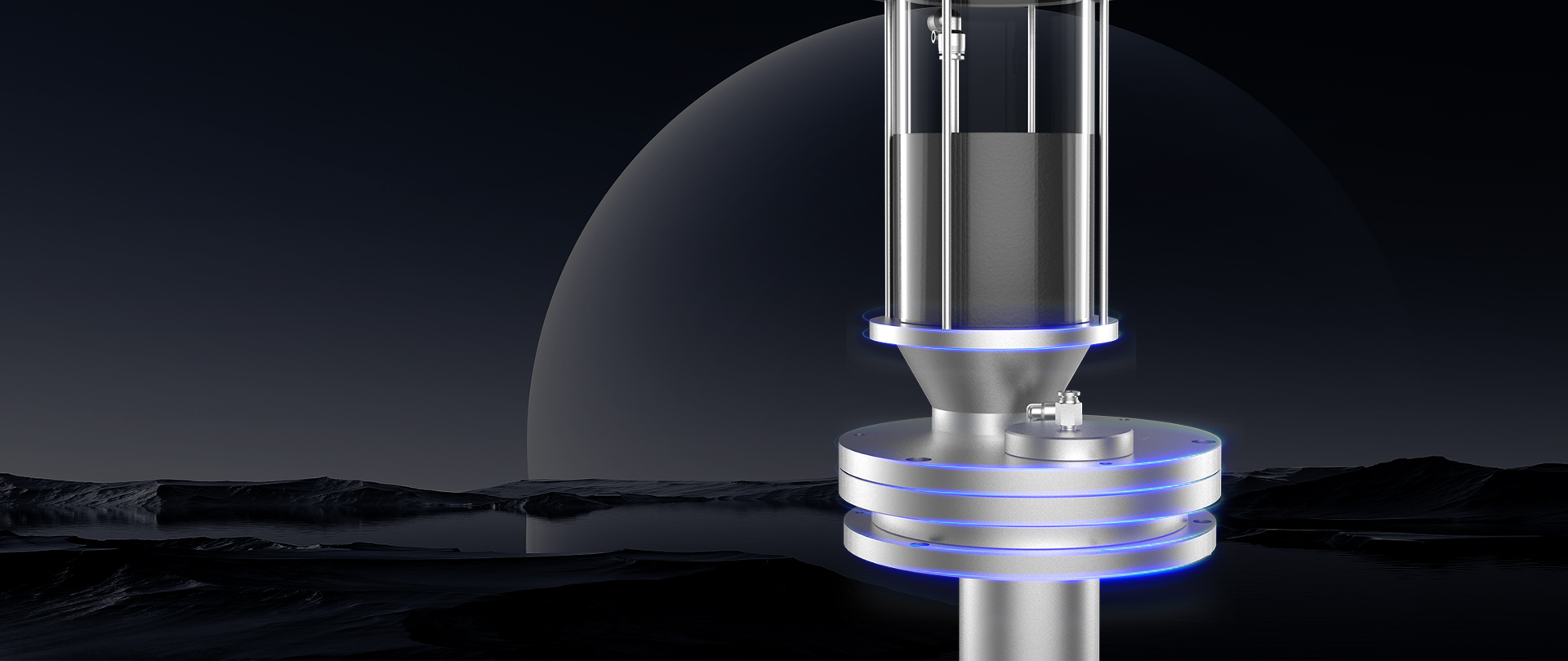

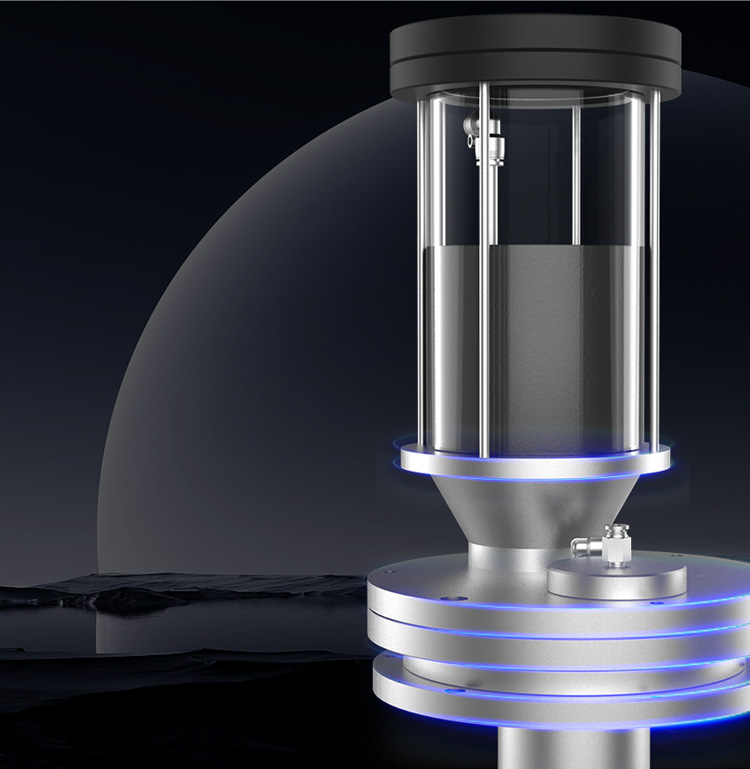

Metal powder utilization rate exceeding 90%,
dilution rate below 5%,
thinner cladding layers meeting performance requirements at costs as low as one-third of traditional cladding.
Minimal heat-affected zone and thermal stress on the base material,
eliminating the need for subsequent turning operations.
Parts can be directly precision ground or polished, reducing post-processing costs.
Utilizing a new production method to turn waste into treasure, promoting green, environmentally friendly, and safe practices.
| Machine model | GKS-LC3008R |
|---|---|
| Laser power | 3000W-12000W |
| Workpiece machining shaft diameter | Φ≤800mm |
| Equipment maximum load | 3000kg |
| Equipment idle travel speed | 7.8m/min |
| Device positioning accuracy | ±0.05mm/m |
| Repeat positioning accuracye | ±0.03mm/m |
| Work piece length | ≤3000mm |
| Equipment system | PLC(Omron) |
| Cladding head | G.WEIKE Customized Cladding Head |
