LF3015GLearn more

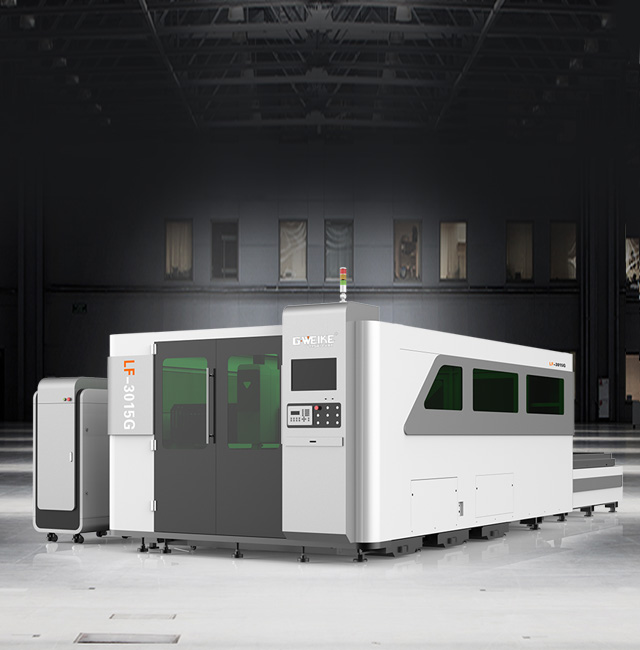

WHOLE COVER FIBER LASER CUTTING MACHINE

Safety and No Pollution

    Safety and No Pollution

  • With a fully enclosed design;
  • The observation window adopts an European CE Standard laser protective glass;
  • The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
  • The weight of machine is 7500kg;

Exchanging Platform

  • It adopts an up and down exchange platform;
  • The converter is responsible for controlling
    the exchanging motor;
  • The machine is able to finish the platform
    exchanging within 15s.
Exchanging Platform

The Third Generation Aviation Aluminum Gantry

Evolutionary history of gantry crossGantry

3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

3ST Generation Aviation Aluminum Beam

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

Segmented rectangular tube welded bed

Without manual operation, it can focus automatically

Auto focus cutting head
  • Without manual focusing

    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
  • Bigger adjustment range

    Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
  • Long service life

    Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Transmission and Precision

Germany German Tech Quality

G·WEIKE fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.

Transmission and Precision

Technical Parameters

Machine model LF3015G
Laser power 1000W 2000W 3000W 4000W 6000W 8000W(Optional)
Dimensions 8150*2825*2125mm
Working area 3000mm * 1500mm
Repeat positioning accuracy ±0.02mm
Maximum speed 120m/min
Max.acceleration 1.5G
Voltage and frequency 380V 50Hz/60Hz

Industry Applications

LF3015G fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing.

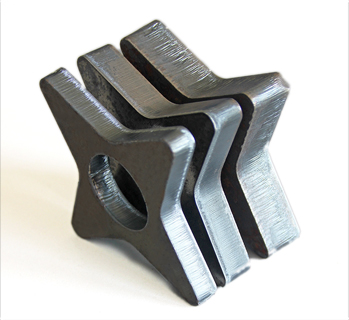

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating, zinc plate, copper and other metals.
