Tube & Plate Laser Cutting Machine: Technology, Benefits & Applications

In modern manufacturing, laser cutting technology truly shines. It not only boosts cutting efficiency and precision but also brings “revolutionary” improvements across industries. If you think a laser cutting machine is just a cold, mechanical device, you’re very much mistaken.

Today, we’ll walk you through tube and plate laser cutting machines—equipment that fuses two core functions. Not only do they play a vital role in many sectors, but thanks to their efficiency, accuracy, and cost-effectiveness, they’ve become the “secret weapon” many manufacturers use to raise productivity.

Contents

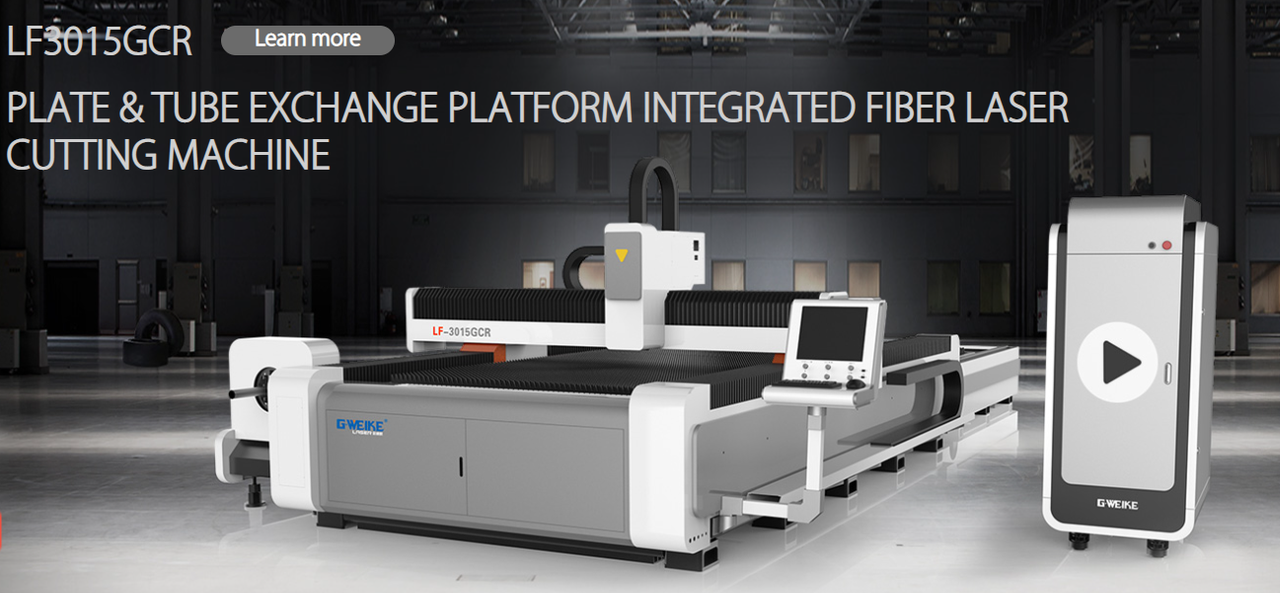

What Is a Tube & Plate Laser Cutting Machine?

A tube & plate laser cutter combines flat-sheet cutting and tube cutting in one system. Thanks to an integrated rotary axis, the machine can clamp and rotate tubes/pipes while the same fiber laser source handles sheet jobs. That means a smaller footprint, fewer operators, and one unified software/workflow.

New to laser cutting and weighing options? Start with an overview of our systems here: learn more about our laser cutting machines

How It Works: Rotary Axis Essentials

What’s the rotary axis?

Many people haven’t heard of a rotary axis, yet it’s a key component of tube and plate laser cutting machines. Its role is to assist in cutting circular or tubular objects. There are two main types:

• • Roller rotation attachment: Two cylindrical rollers can be adjusted to match the diameter of the workpiece. This suits regular cylindrical objects for cutting or engraving.
• • Chuck rotation attachment: The workpiece is fixed at both ends to enable cutting. This is well-suited for irregular cylindrical objects.

The rotary axis not only enhances the machine’s versatility but also improves cutting accuracy and efficiency. It empowers you to handle more complex tasks—truly making “one machine to solve all problems.”

Want to dive deeper into rotary cutting? Check out the Rotary Axis for a clear, hands-on overview.

Why Are Tube and Plate Laser Cutting Machines So Popular?

High efficiency—say goodbye to waiting

Under traditional methods, cutting could take quite a while. The high speed of laser cutting saves time and unlocks more production opportunities. Fast and precise cutting helps you seize the advantage in competitive markets.

Small footprint, lower cost

Maybe you’ve struggled with cramped floor space or high maintenance costs from too many machines. The multifunctional design of a tube and plate laser cutting machine solves these issues. One machine replaces two, saving space and money—ideal for environments that demand high efficiency with limited space.

Strong adaptability to a variety of materials

Whether you’re cutting stainless steel, aluminum alloy, or carbon steel, this equipment can do the job. It also handles a range of thicknesses, from thin to thick plates. Flexibility is one of its strengths, so you don’t need to worry about whether the machine fits changing production needs.

High precision, near-zero error

Who doesn’t want straight, smooth cut edges? Laser cutting’s high precision means virtually no burrs or irregular cut lines, reducing post-processing. Narrow kerfs further enhance finished quality.

Environmentally friendly and energy-saving, easy to operate

Laser cutting reduces material waste and helps keep energy consumption in check, making it a relatively eco-friendly cutting method. The operation interface is intuitive, and even non-specialists can get up to speed quickly.

Which Industries Is It Suited For?

Housings, brackets and inner frames in stainless, carbon steel and aluminum.

Metal letters, steel frames, light-box structures — clean edges, minimal rework.

Frames, chassis parts and components with tight tolerance and repeatability.

Wide variety of parts and materials — one system handles sheet + tube.

Dumbbells, racks, goals — consistent quality with smooth kerfs.

How to Choose a Tube and Plate Laser Cutting Machine

• · Power vs Thickness: match laser power to your common materials and cut edges you’ll accept.
• · Acceleration & Motion: higher G and stable repeatability (e.g., ±0.02 mm) speed up small/complex parts.
• · Rotary Capacity: tube diameter/length/weight, chuck type, auto-centering, 3-jaw vs 4-jaw.
• · Assist Gas: O₂, N₂, Air — balance speed, edge color, and gas cost.
• · Software & Nesting: sheet + tube CAM, easy job switching, quoting tools.
• · Dust & Safety: enclosure, extraction, electrical cabinet isolation, temperature control.
• · Service & TCO: warranty, spares, remote diagnostics, operator training.

Quick Power Guide (typical)

• · 1–2 kW → Carbon Steel ≤8 mm; Stainless ≤5 mm; Aluminum ≤4 mm
• · 3–4 kW → Carbon Steel ≤12 mm; Stainless ≤8 mm; Aluminum ≤6 mm
• · 6–8 kW → Carbon Steel ≤20 mm; Stainless ≤12 mm; Aluminum ≤10 mm

FAQs

What thickness can a tube & plate machine cut?

It depends on laser power, assist gas, and material. As a quick rule of thumb: 3–4 kW handles CS up to ~12 mm, SS ~8 mm; 6–8 kW pushes CS ~20 mm, SS ~12 mm with proper gas and nozzles.

Does the rotary axis slow down flat-sheet cutting?

No for sheet jobs—the rotary is idle. On tubes, chuck/roller dynamics and diameter affect speed; CAM strategies and stabilization features help maintain throughput.

Tube & plate vs tube-only: which is more cost-effective for 70% tube workload?

If ≥70% is tube with tight takt times, a tube-only system often wins on throughput. For more variable mixes, a combo system reduces idle time and floor space while keeping capex lower than two machines.

Which assist gas should I use?

Oxygen for carbon steel (fast but oxide edge), nitrogen for stainless/aluminum (bright edge), air as a low-cost option on thin gauges with acceptable edge color. Your finish, speed, and gas budget decide.
