What is a laser cutting machine?
A laser cutting machine focuses a high-energy beam onto sheet metal via a cutting head/nozzle and follows programmed toolpaths with a CNC motion system.Assist gas(oxygen, nitrogen, or clean dry air) both forms the cut and influences edge chemistry/appearance.
- Finer kerf & hole accuracy than plasma/punching; cleaner corners/lettering.
- Fast changeovers: auto nesting, common-line cutting, micro-joints—ideal for high-mix small lots.
- Lower heat input & distortion: best unit cost/lead time on thin–mid sheet.
Machine types and Comparisons
A laser cutting machine focuses a high-energy beam onto sheet metal via a cutting head/nozzle and follows programmed toolpaths with a CNC motion system.Assist gas(oxygen, nitrogen, or clean dry air) both forms the cut and influences edge chemistry/appearance.
Fiber vs CO₂ vs Plasma vs Waterjet — Quick Comparison
TL;DR: For metals, fiber wins on speed, kerf and running cost in thin–mid sheets; CO₂ excels on non-metals; plasma favors thick structural work; waterjet maximizes edge quality without HAZ at higher cost.
| Dimension | Fiber Laser | CO₂ Laser | Plasma | Waterjet |
|---|---|---|---|---|

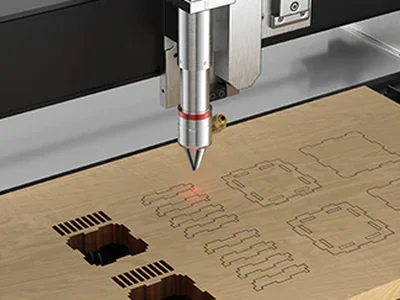

| Best Materials | Metals (CS/SS/AL) | Acrylic, wood, plastics, paper, fabrics | Metals (thick structural CS) | Most materials incl. stone, glass, composites, metals |
| Kerf / Precision | Very fine kerf; small holes & crisp corners | Fine on non-metals; limited on metals | Wider kerf; lower small-feature fidelity | Very fine kerf; excellent accuracy |
| Heat / HAZ | Low HAZ, low distortion | Low–mid (on non-metals) | High HAZ, potential distortion | No HAZ (cold process) |
| Speed (thin–mid) | ★★★★★ (fastest on metals) | ★★★☆ (on non-metals) | ★★★ (thicker sheets) | ★★ (slowest) |
| Edge Quality | Clean; N₂ yields bright SS edges | Acrylic “fire-polished” bright edge | Rougher; secondary finishing common | Excellent; minimal finishing |
| Operating Cost | Low–mid (gas + power) | Low–mid (on non-metals) | Low per hour, higher finishing | High (abrasive + consumables) |
| Typical Use | Sheet-metal fab, enclosures, frames | Signage, displays, woodworking, crafts | Structural steel, heavy plate | High-precision parts, mixed materials |
Key components

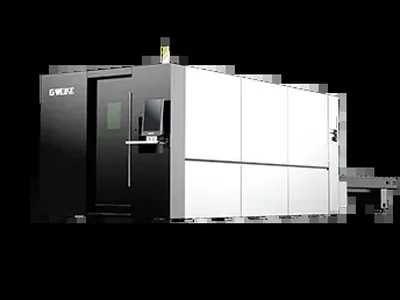

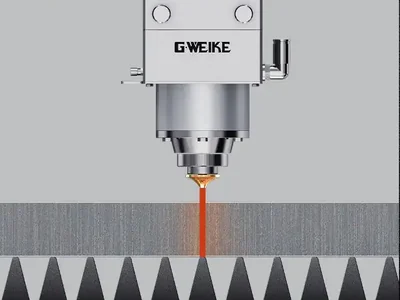

Cutting head & optics
- Auto-focus:stabilizes focus between piercing and high-speed cutting.
- Protective windows are consumables; contamination is the #1 burr/dross cause.
- Focal length & DOF: short FL → thin-sheet speed; long FL → steady thick-plate piercing & verticality.
- Nozzle geometry (single/double, orifice, standoff) shapes gas flow & edge quality.

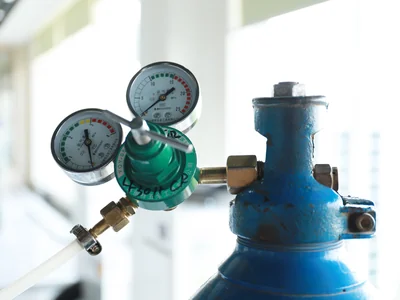

Assist gas & supply
- O₂ for carbon steel; N₂ for bright-edge SS/AL; CDA can reduce cost on thin sheet with proper setup.
- Purity/flow/stable pressure are critical.
Cooling / extraction / safety
- Chiller sized to laser source & duty.
- Fume extraction/filtration sized to the enclosure.
- Guarding, viewports, labels, interlocks + training & PPE.
Motion/control & software
- Drives: rack-&-pinion (robust) vslinear motors(high accel, contour accuracy).
- CAM/CNC: efficient nesting, lead-in/out, corner slowdown, common-line cutting, remnant management, barcodes.
- Connectivity: queues, guided ops, remote diagnostics.
Pre-installation facility checklist
| Item | Typical Requirement (example) | Notes |
|---|---|---|
| Power | 3-phase, 380–415 V, 50/60 Hz | Dedicated breaker; surge protection |
| Assist gas | O₂ / N₂ bottles or tank; CDA 0.6–1.0 MPa | Purity 99.95%+ for N₂ bright edges |
| Chiller | Capacity matched to source (kW) | Ambient control & glycol if required |
| Extraction | Airflow matched to enclosure volume | Filter change schedule; fire safety |
| Floor | Level, vibration-controlled | Anchoring points if specified |
| Safety | Guarding, interlocks, signage | Operator training & SOPs |
Materials & thickness ranges (typical production)
Actual capability depends on machine, optics/nozzle, gas quality and process strategy."Recommended"= stable mass-production range;"Occasional max"for special jobs with parameter development.
Carbon steel (O₂ / Air)
| Power | Recommended | Occasional max |
|---|---|---|
| 3 kW | ≤ 12–16 mm | ≈ 20 mm |
| 6 kW | ≤ 20–25 mm | ≈ 30 mm |
| 12 kW+ | ≤ 16–20 mm | ≈ 25 mm |
Stainless steel (N₂)
| Power | Recommended | Occasional max |
|---|---|---|
| 3 kW | ≤ 8–10 mm | ≈ 12 mm |
| 6 kW | ≤ 12–16 mm | ≈ 20 mm |
| 12 kW+ | ≤ 20–25 mm | ≈ 30 mm |
Aluminum (N₂)
| Power | Recommended | Occasional max |
|---|---|---|
| 3 kW | ≤ 6–8 mm | ≈ 10 mm |
| 6 kW | ≤ 10–12 mm | ≈ 16 mm |
| 12 kW+ | ≤ 16–20 mm | ≈ 25 mm |
Rule of thumb: Choose power around your top five weekly materials/thicknesses. Often a swap table yields more output than oversizing power for a few thick jobs.
Choosing power, optics & options
Power
- 3–6 kW: Bread-and-butter for thin/mid-sheet.
- 12 kW+: Thick plate and high-speed bright-edge stainless with N₂.
- Decide by target cycle time (takt), not a single “max thickness”.
Lenses
- Short FL: narrow kerf, fast on thin sheet.
- Long FL: stable thick-plate piercing, straighter edges.
- Works with nozzle orifice & standoff to shape kerf/gas flow.
Options
- Automation first: Swap table → biggest OEE boost; load/unload helps high-mix, mid-volume.

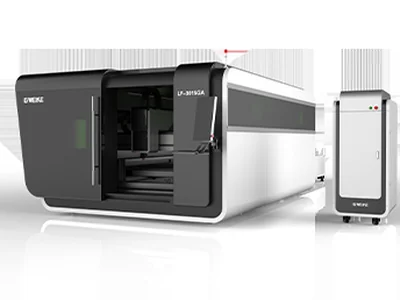

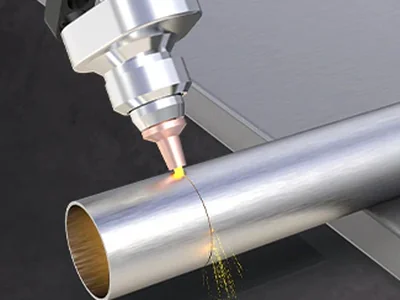

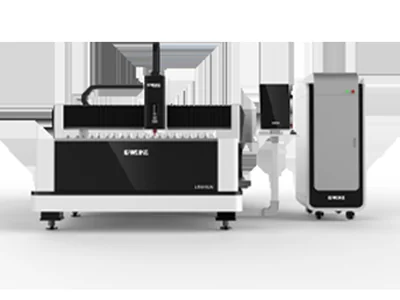

- Plate & tube: Makes sense when tubes are ≥20–30% long-term.
- Spares & upkeep:Protective windows, nozzles, filter media in rotation.

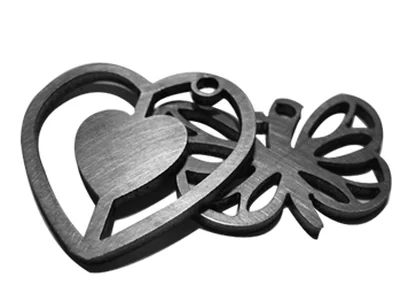

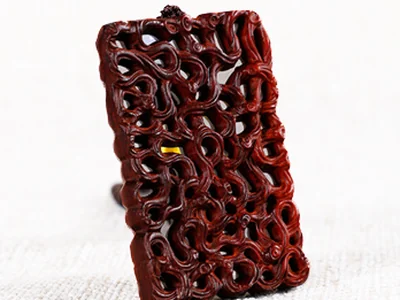

Sample cuts

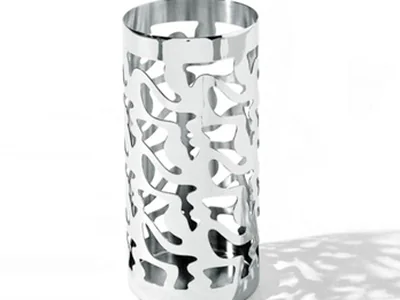

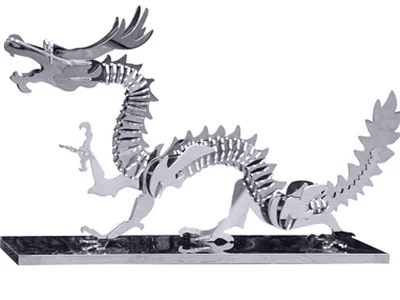

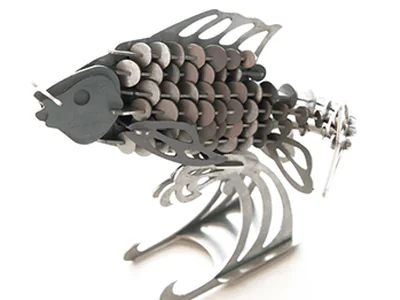

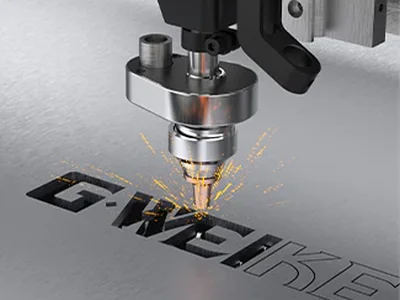

Watch: cutting & piercing
Fiber Laser Metal Sheet Cutting Machine Video Collection
Sheet Metal Fiber Laser Cutting Machine Video Collection
Industry applications

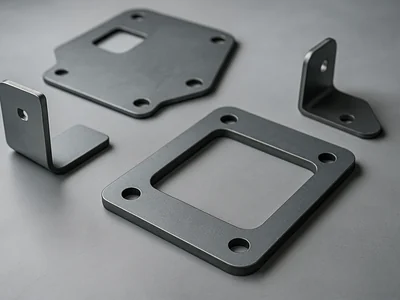

- Sheet-metal fabrication: brackets, guards, frames

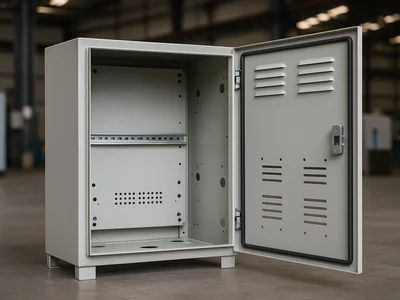

- Cabinets/enclosures: louvers, knockouts, precision holes

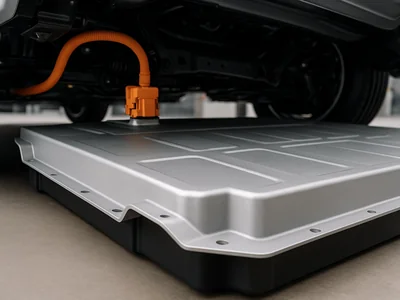

- Auto / e-mobility: battery trays, supports, lightweight structure

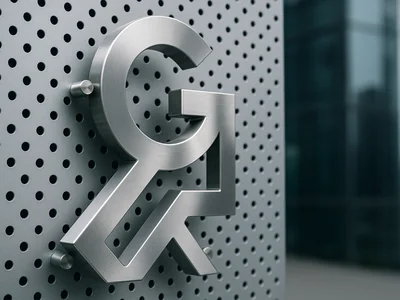

- Signage / architectural: SS/AL letters & façade panels

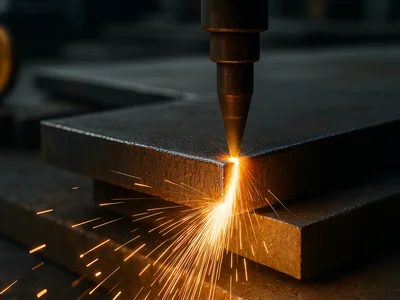

- Ag / Construction: thick structural plate, oxygen productivity
FAQ
Q1: Fiber vs CO₂?
A: Metals → fiber. Non-metals (acrylic/wood/PMMA) → CO₂. For sheet + tube on one machine, choose plate & tube integrated.
Q2: How much power do I need?
A: Build around your top five weekly thicknesses. Most factories handle thin/mid sheet with 3–6 kW; 12 kW+ targets thick plate and high-speed bright-edge stainless.
Q3: Which assist gas?
A: O₂ for carbon steel; N₂ for bright-edge stainless/aluminum; in certain thin-sheet cases CDA can cut costs (match nozzle & process)
Q4: Burrs/dross—what to do first?/
A: Check protective window contamination → verify focus & nozzle standoff → confirm gas purity/pressure → then adjust speed/duty cycle or change nozzle orifice.
Q5: Piercing failures?
A: Extend piercing time or use multi-stage piercing; for thick plate, try larger orifice / longer FL; confirm gas path and extraction are clear.
Q6: Routine maintenance?
A: Daily nozzle/standoff and protective-window checks/cleaning; change filters on schedule and lubricate guides; periodically verify optics and safety interlocks.All things you should know about fiber laser cutting machine maintenance
