GAL SERIESLearn more

Loading Device For Two Laser Cutting Machine

Auto focus cutting head

Autofocus Laser Cutting Head

  • Without manual focusing

    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
  • Bigger adjustment range

    Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
  • Long service life

    Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.
machine body

Plate Welding Heavy Work Bed

  • Annealed And Heat Treated

    Plate welding heavy work bed, no deformation in 20 years, suitable for ultra-high power 10,000-watt laser. The increase in weight is very beneficial to the laser cutting machine cutting speed.
  • Innovative Four Slings Working Bed

    For reducing damage to the work bed during laser working, G.WEIKE Innovated the new work bed by adding four slings, and the life span of the fiber laser cutting machine work bed will be doubled.
Independent Control Cabinet

Independent Control Cabinet

  • Dust-proof

    All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
  •  Automatic Thermostat

    The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.

One drag two four station

double online cooperation

  • Two-machine iterconnetion mode is adopted to realize utra high speed
    material feeding,cutting, and unloading. stable operation, and the
    efficiency is triggered af the touch.
12000W IPG Fiber Lasers Source

12000W IPG Fiber Lasers Source

  • World Famous Brand

    GWEIKE laser cutting machine YLS-CUT series high power fiber laser of IPG.Powerful
    cutting ability with stainless stell,aluminum and other metal materials,cutting thickness is up tu 40mm.
  • Long Service life

    The world leading IPG laser has stable performance, the service life can reach
    100000 hours, and the overall quality of the equipment can be guaranteed safely.
  • Stable Cutting Performance

    Fiber laser source can produce excellent beam quality, finer cutting lines,
    higher working efficiency and better machining quality.Fully closed constant temperature working
    environment makes laser source more effective to ensure the stable operation.

Machine Advantage

  • Safe and pollution-free

    Fully enclosed design; the observation window adopts European CE standard protective glass; the smoke generated by cutting is internally filtered, and the emission is up to the standard, without pollution;
  • PAD design display

    The use of high-definition tempered glass makes the screen more delicate and smooth, and the operation is smoother;
  • Surveillance system

    During the processing, each blind spot area can be monitored at any time, and the cutting process can be controlled; the high-definition intelligent monitoring system, remote alarm operation is no danger.
  • machine picture
  • pad display
  • Surveillance system

Industry Applications

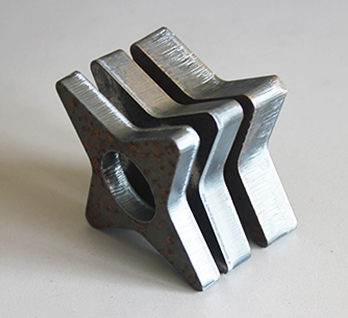

LF3015GAL fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

Technical Parameters

Machine model LF3015GAL
Laser power 2000W 3000W 4000W 6000W 8000W (Optional)
Dimensions 14805*8182*4422mm
Working area 3000mm x 1500mm
Repeat positioning accuracy ±0.02mm
Maximum speed 120m/min
Max acceleration 1.5G
Voltage and frequency 380V/50Hz/60Hz/60A
