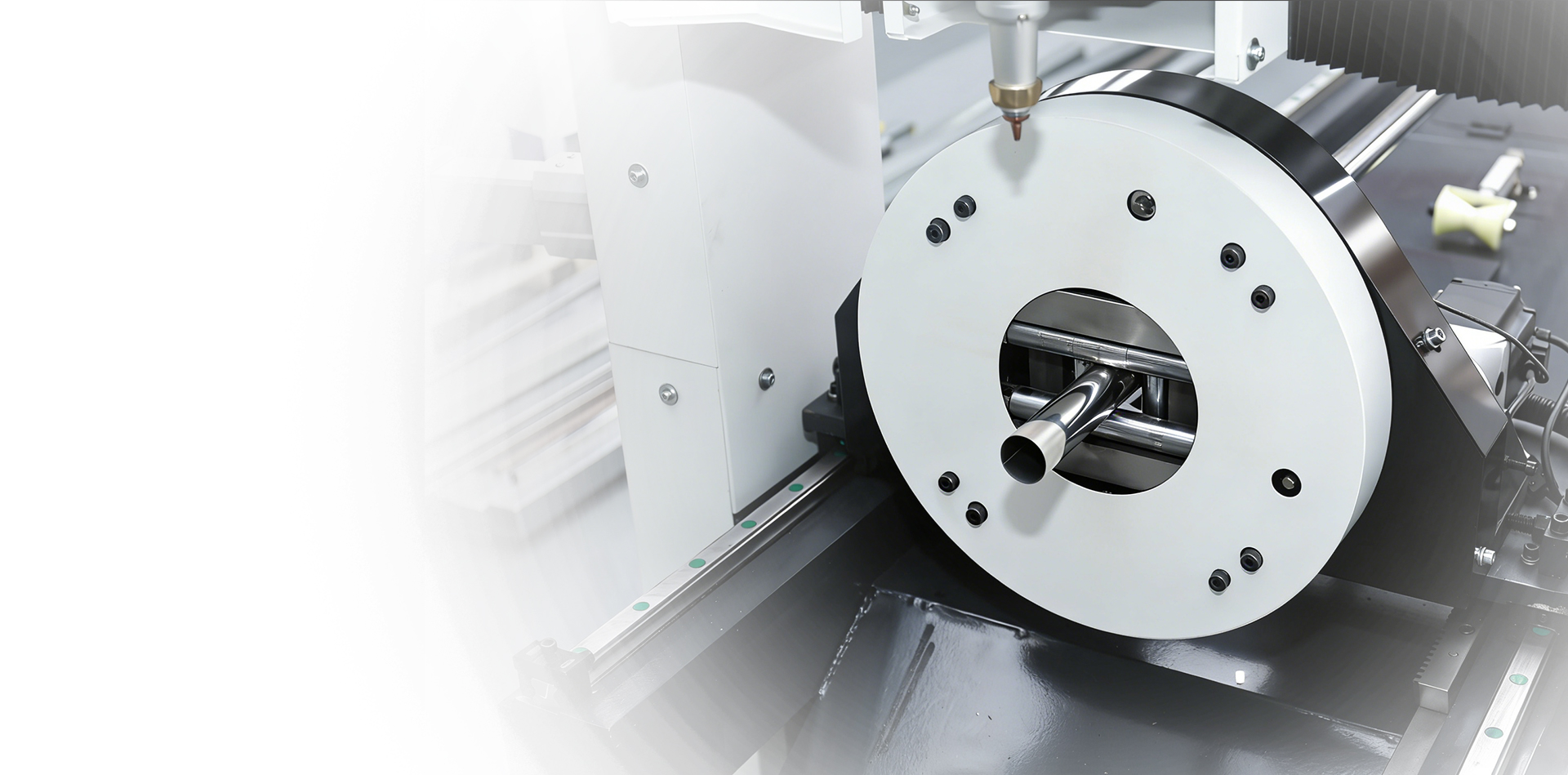

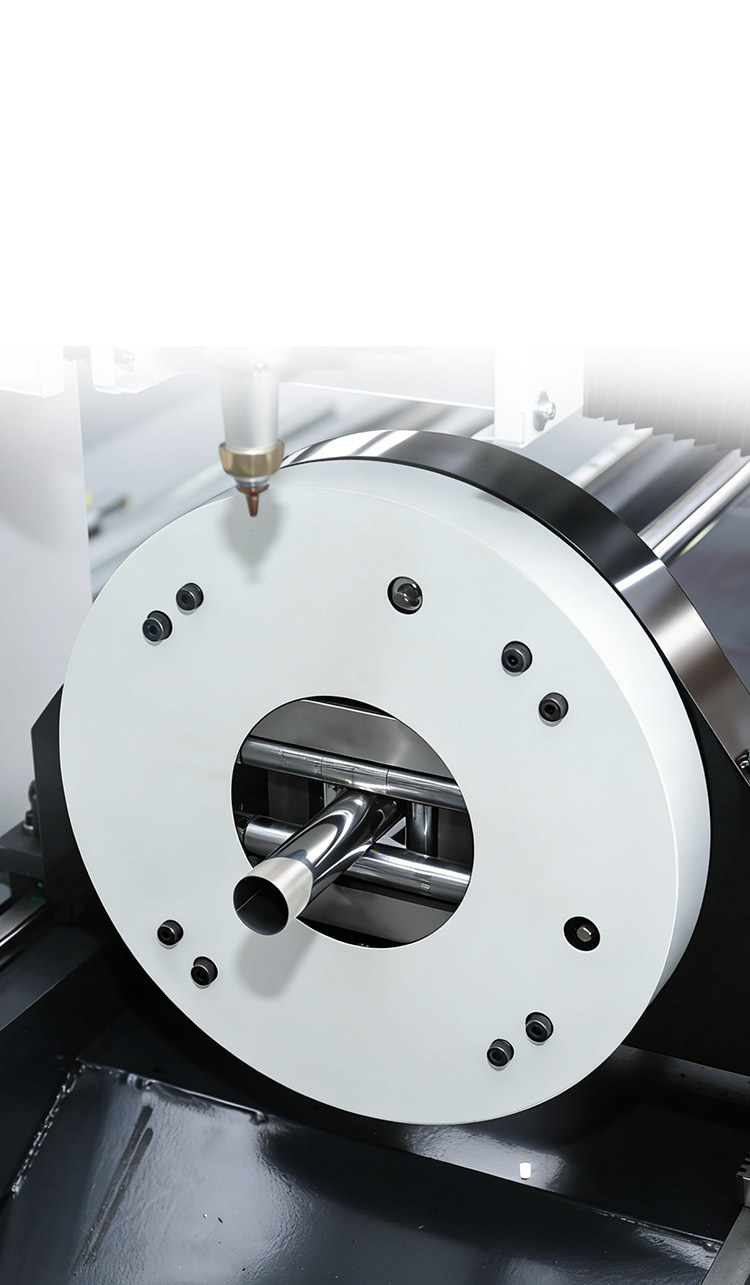

The front-chuck offset function enables short remnant processing for tubes of different lengths. The final cut is completed with double-chuck clamping for greater stability and better material utilization.

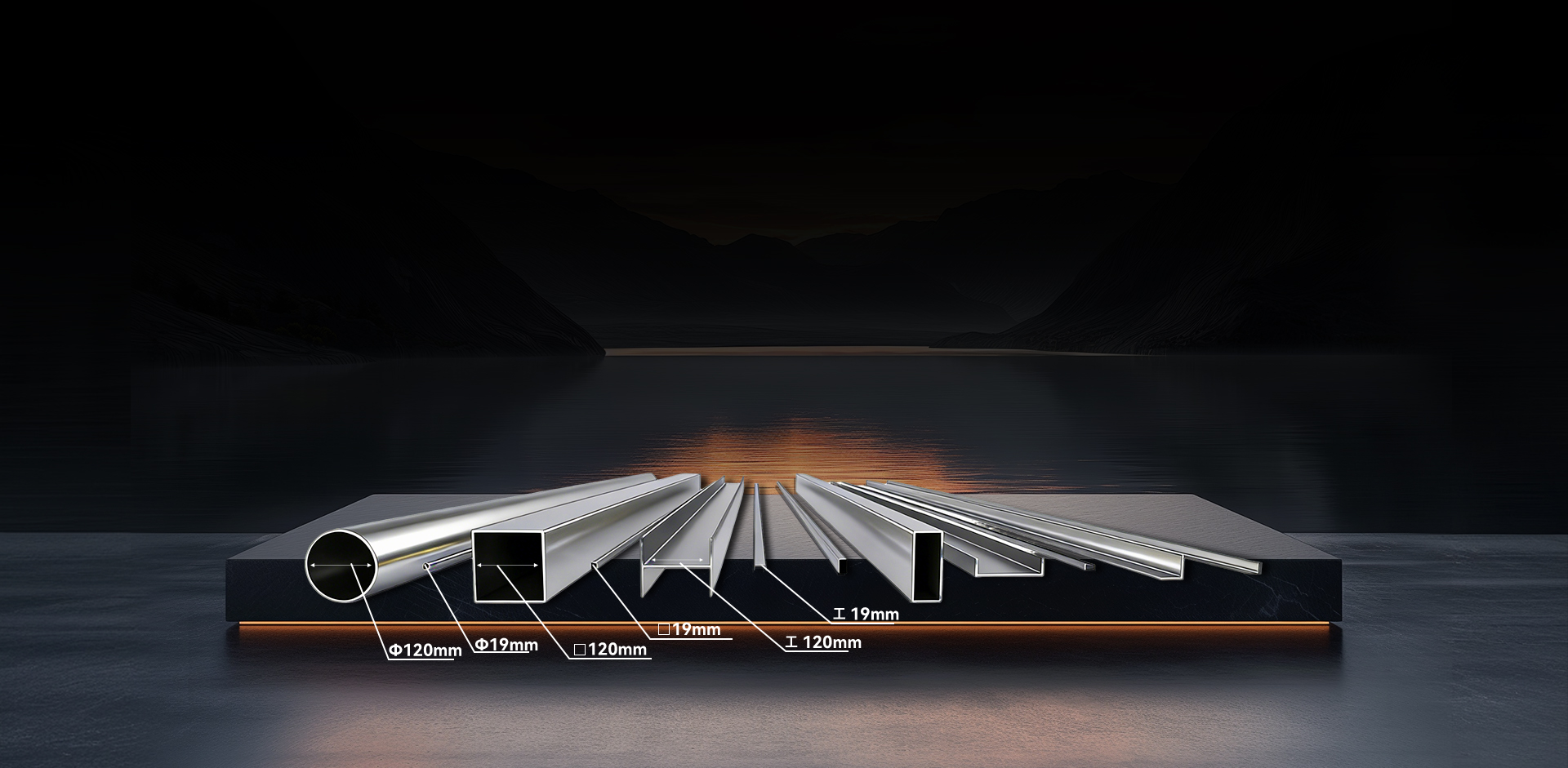

Meets the processing requirements for both round and square tubes, covering round tubes from Φ19 to Φ120mm and square tubes from □19×19 to □120×120mm for flexible small tube fabrication.

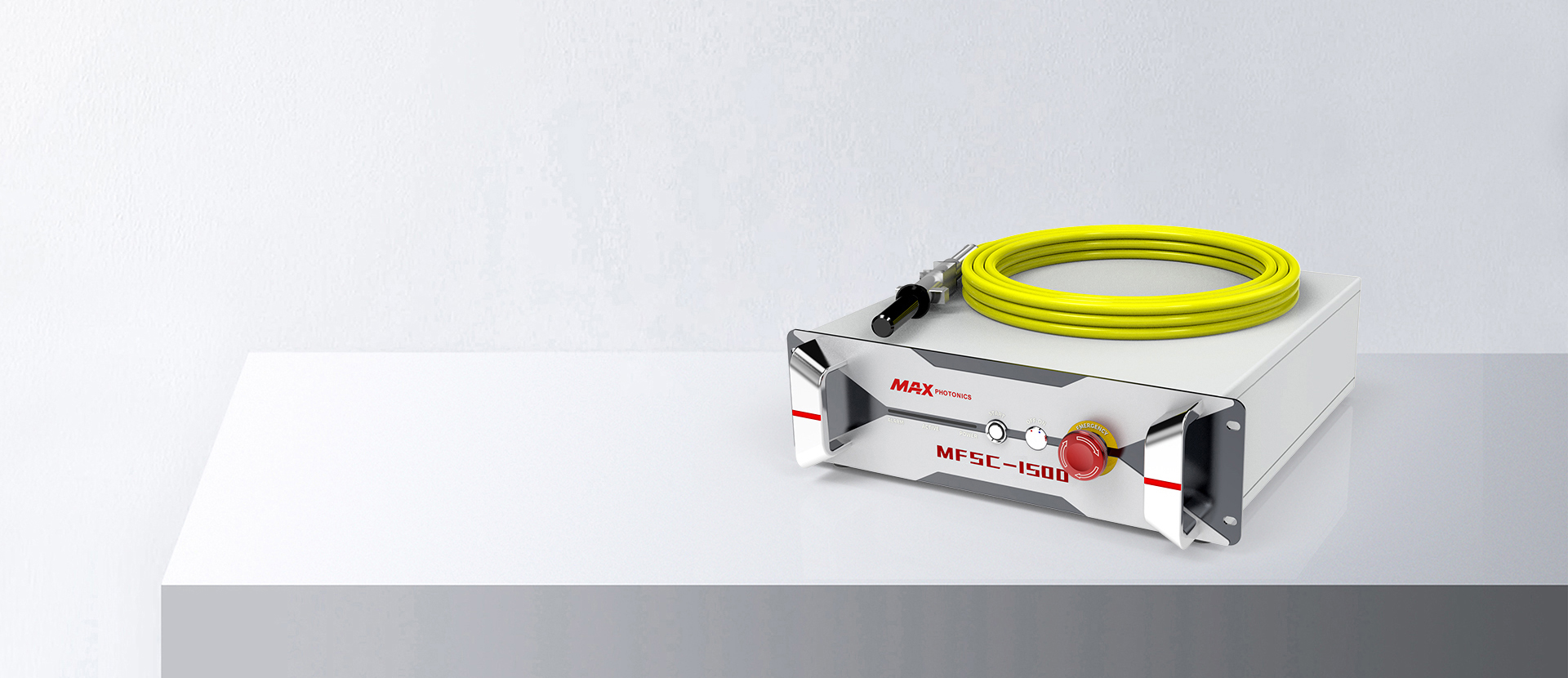

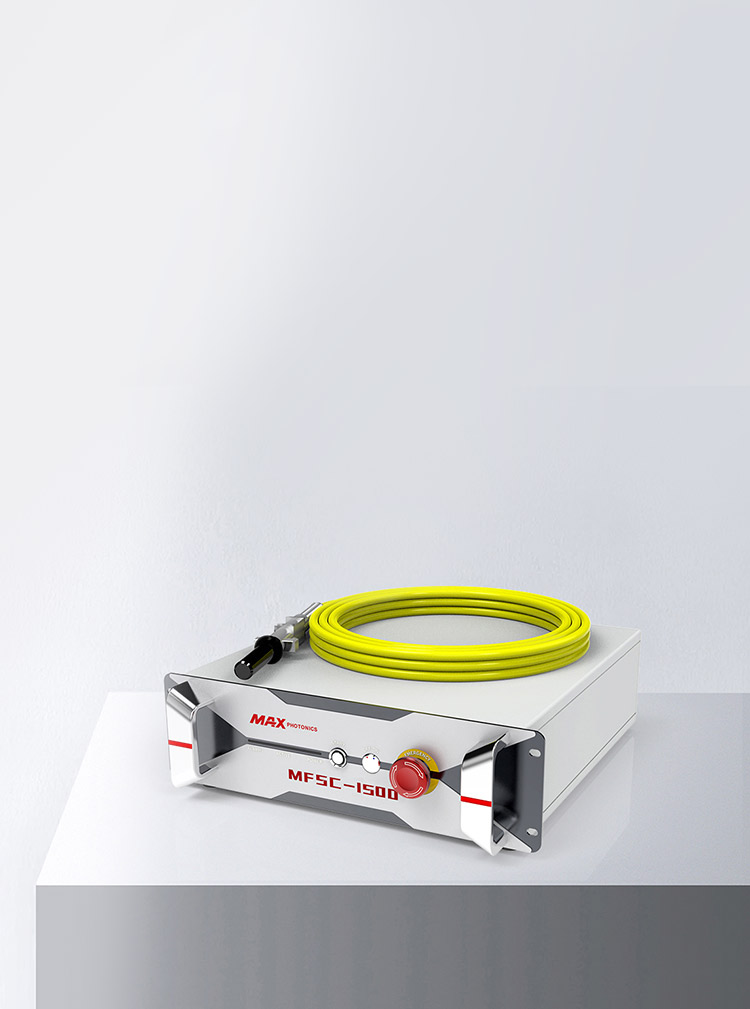

Features excellent beam quality, allowing the laser beam to be focused near the diffraction limit to meet higher precision processing requirements. It supports both continuous and modulated pulse modes, significantly reducing the heat-affected zone during processing and improving processing quality and efficiency.

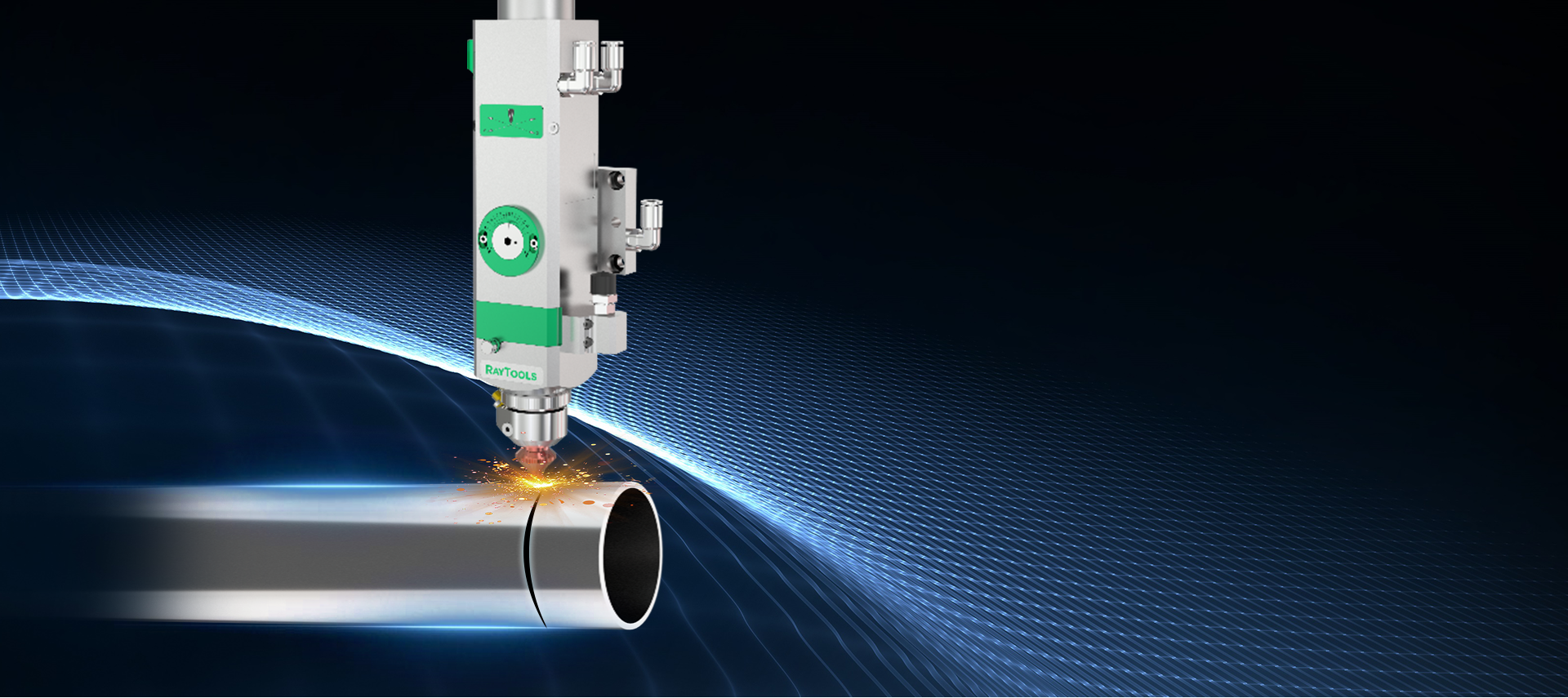

Faster, more precise, and more accurate focus movement with a wider focusing range. The integrated cooling structure and 3-channel airflow design effectively protect the nozzle and ceramic ring, extending continuous operation time. The integrated body design, combined with three protective lenses, achieves an IP65 dust protection rating, ensuring the lens barrel remains clean and sealed.
Office furniture, medical equipment, fitness equipment, hardware and sanitary ware, guardrail production, display racks, and light pipeline components
| 1500WLaser Power |
| Round pipes: Φ19-Φ120mm Square pipes: □19×19-□120×120mmClamping Range |
| 200r/minMaximum Rotation Speed |
| 6100mmEffective Cutting Length of Pipe |
| 80KGLoad Capacity of Single Pipe |
| Diameter 190MM Rubber Roller Diameter |
| 120 Pneumatic Chuck Chuck Structure |
