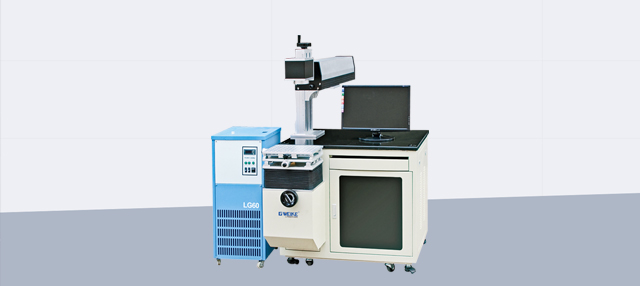

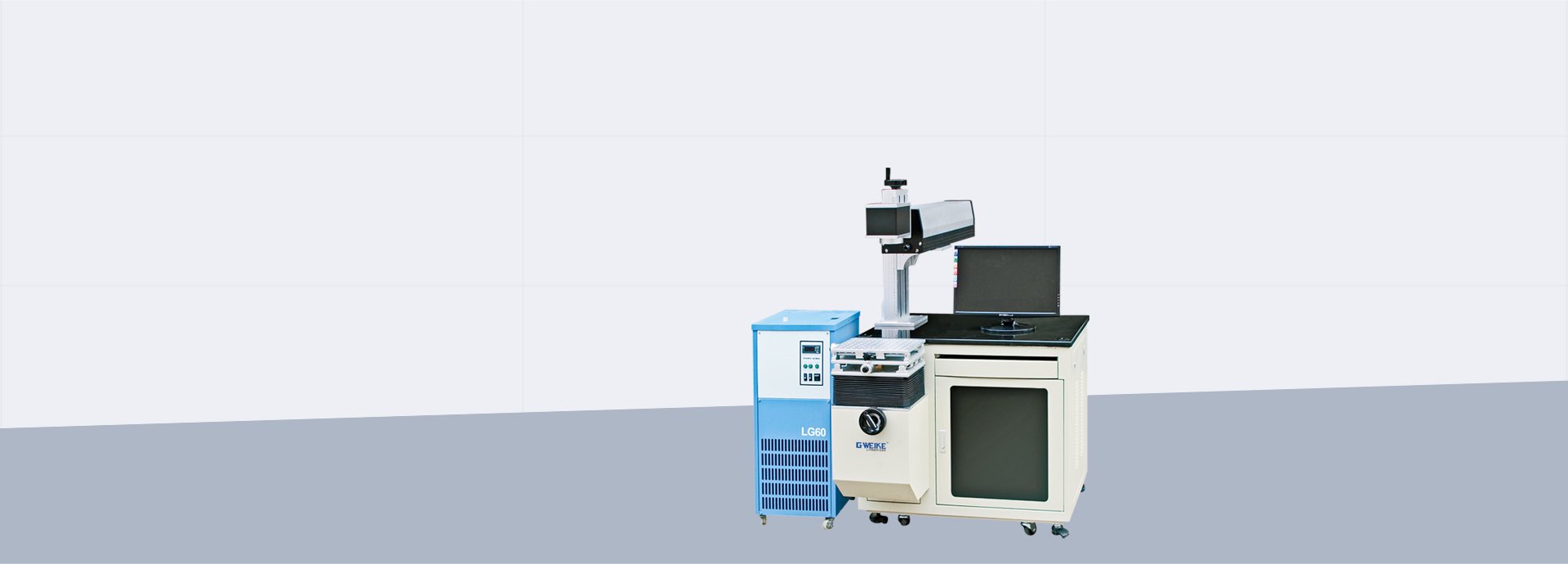

Co2 laser marking machine is the new generation laser marking system of our company.utilize DC excited seal CO2 laser, The tube can work more than 35,000 hours. The machine equipped with high speed scaning vibrating lens and extending focusing system, high stability, anti-intervention industrial computer system, high precise vertical up-and-down working table. The machine can continue woking 24 hours in high stability, high precision, high speed.the paten software bases on windows system, with easy operation, stable motion and clear mark.
Compact body, simple operation, the maximum reduction of operation and maintenance costs.
Friendly man-machine interface , simple operation ,easy to learn and use.
Adopt imported parts, high speed , high accuracy.
|Max.Laser Power (W)||60W 80W 100W 130W (optional）|
|Laser Wave-Length (um)||10.6|
|Laser Repetition Frequency||≤25kHz|
|Standard Marking Area (mm)||200mm x 200mm 300mm x 300mm|
|marking Depth (mm)||≤3mm|
|Marking Speed (mm)||≤7000mm/s|
|Min.Line Width (mm)||0.2mm|
|Min. Character Size (mm)||0.5mm|
|Working Area||600* 400mm|
|Repetition Accuracy (mm)||±0.01|
|Power Consumed (kw)||<1200W|
|Electrical Voltage||220V 50Hz 8A|
|Cooling System||Water cooling|
|Software||Win XP+EZCAD marker system|
Wood products, paper, leather, cloth, organic glass, epoxy resin, acrylic, unsaturated polyester resin and other non-metal materials.
