01
Laser Source
CO₂ sealed RF laser platform for non-metallic film cutting.
DC0605 · Ultrafast Series

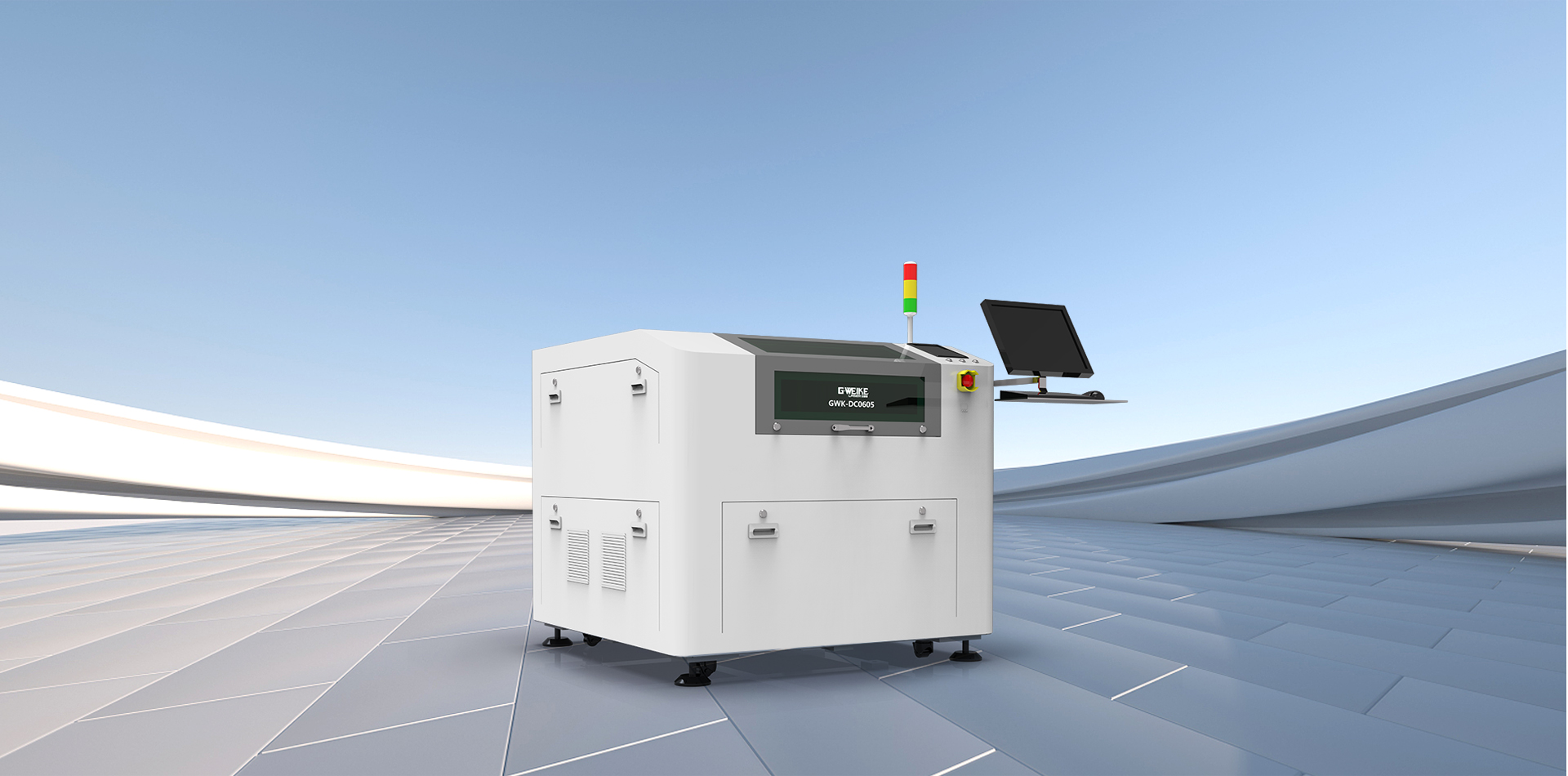

PET Film Laser Cutting Machine
High-precision CO₂ laser cutting system for PET film, OCA, polarizer film, touchscreen PET, electronic paper and handwriting tablet materials.
CO₂ RFSealed laser
500×600Cutting area mm
≤1mmFilm thickness
±0.01mmRepeatability
CCD automatic positioning·
High-stability marble base·
Clean cutting edges·
Dedicated fume extraction
C55Laser option
300mm/sMax machining speed
±0.05mmOverall accuracy
WaterCooling method
3kWPower requirement
1350×1300×1600Machine size mm
01 · Precision film cutting
High-accuracy cutting for non-metallic thin film materials
DC0605 combines CCD automatic positioning, a high-stability marble base and clean laser cutting performance for PET film, OCA, polarizer film and display-related film materials.
CCD
Auto positioning
Marble
Stable structure
Clean
Cutting edge

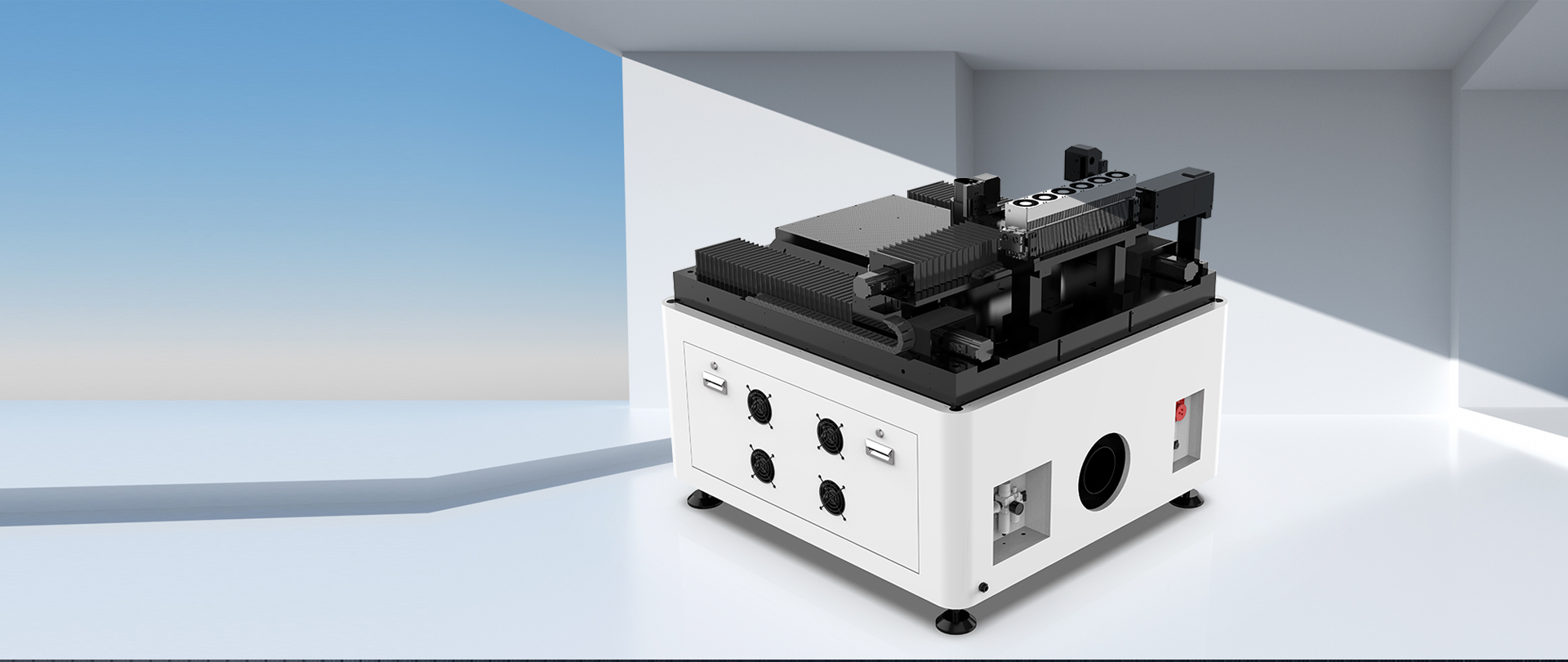

02 · Software and motion control

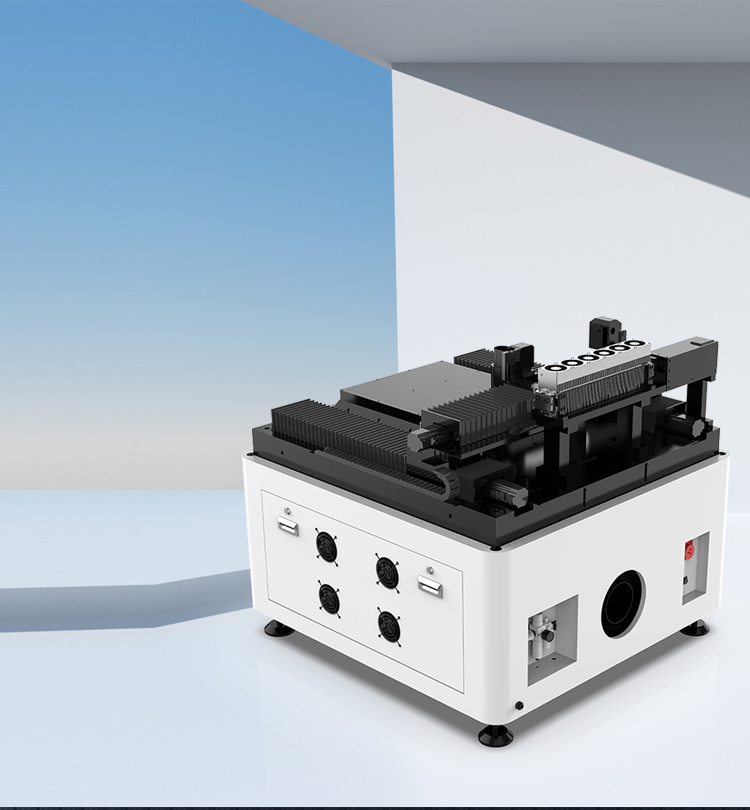

In-house laser cutting software for flexible film patterns
GWEIKE self-developed laser cutting software integrates motion control and graphic processing, supporting flexible cutting paths and complex film shapes for production and prototyping workflows.
GWEIKE
Software control
Flexible
Graphic processing
03 · Stable drive and clean extraction

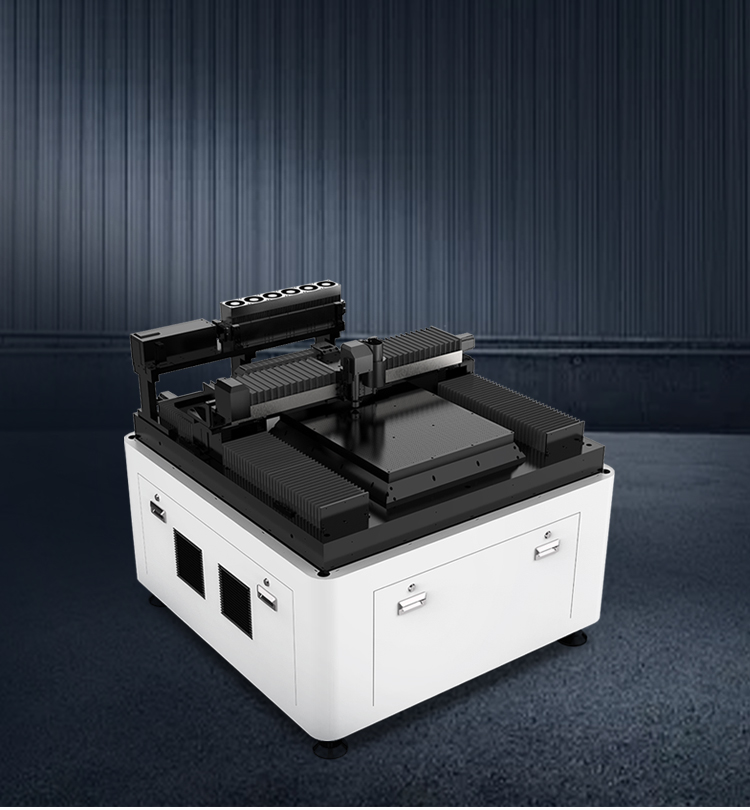

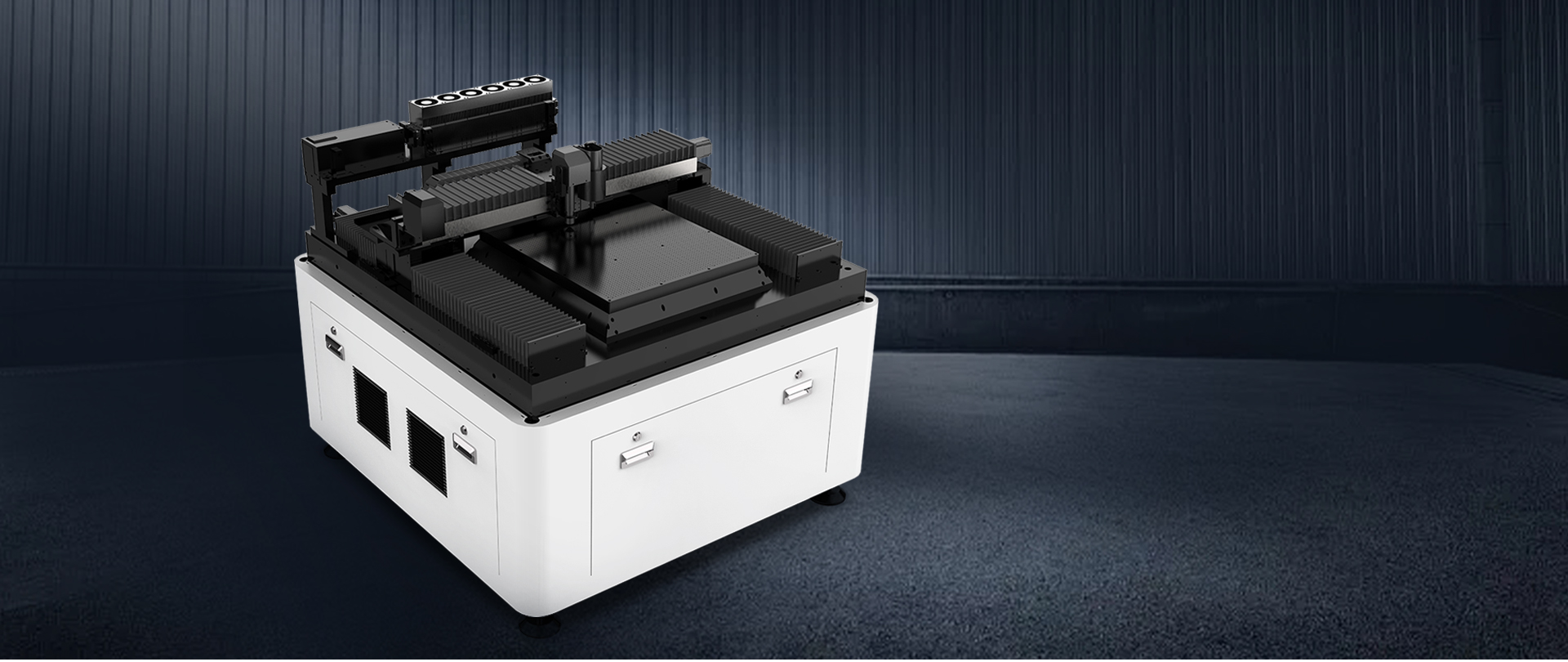

Gantry dual-servo drive with dedicated fume extraction

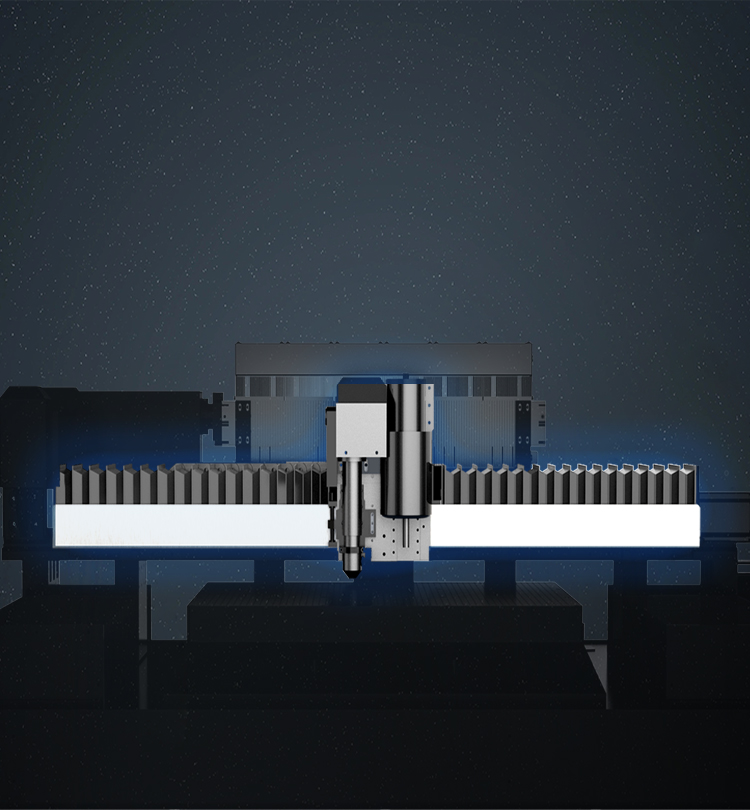

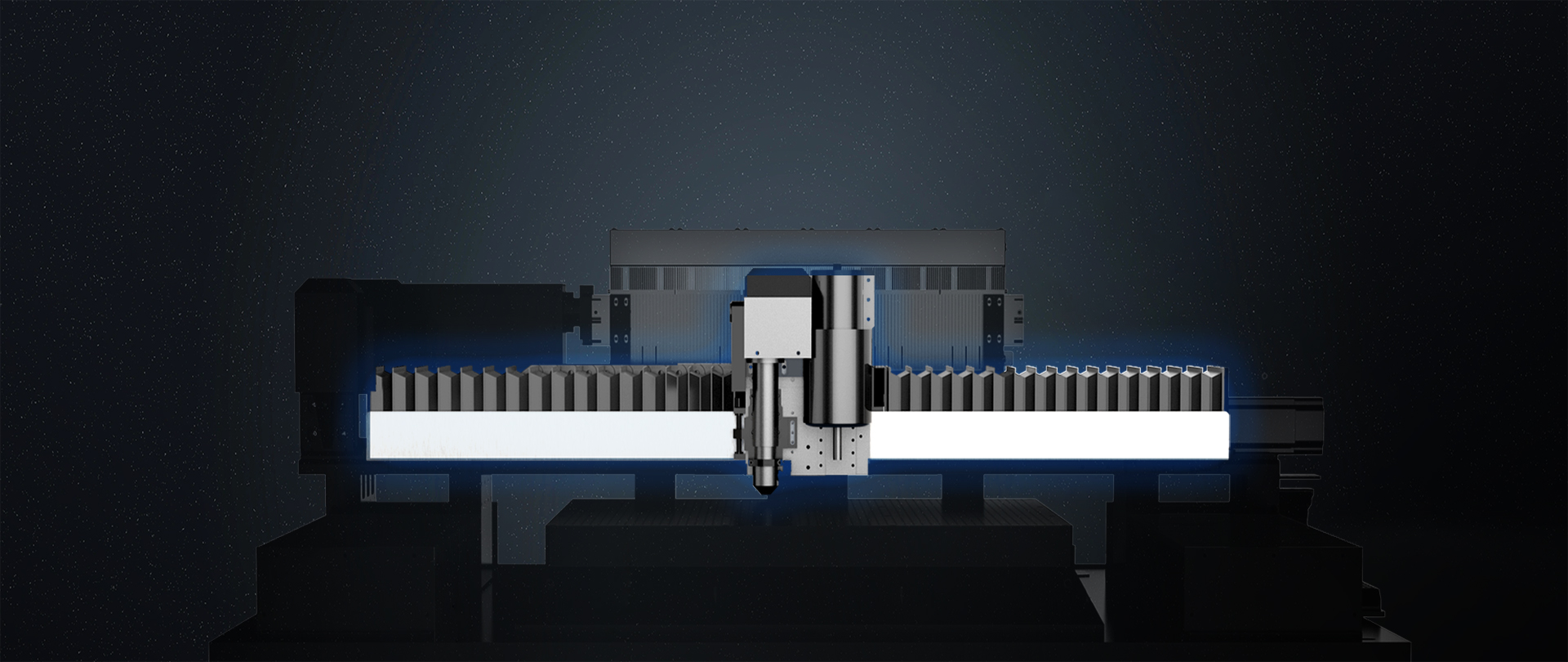

The gantry dual-servo drive structure and reinforced machine frame support stable motion during film cutting. Imported laser and optical components help reduce maintenance cost, while the dedicated fume extraction system supports clean cutting results.
300mm/s
Max speed
Dual servo
Gantry drive
Fume
Extraction system
Equipment Configuration
The DC0605 platform integrates laser optics, motion modules, control hardware and structural components for stable thin film laser cutting.
02
Reflector & Focusing Optics
Optical components for stable beam delivery and cutting quality.
03
Precision Mirror Mounts
Fine-adjustment mirror structure for optical path control.
04
X/Y Motion Modules
Motion module drive structure for controlled cutting paths.
05
Touchscreen Interface
Operator interface for machine control and process operation.
06
Marble Structure
High-stability base design for cutting accuracy and repeatability.
07
Assist-Gas Regulator
Air pressure gauge and auxiliary gas regulation for process support.
08
Machine Enclosure
Integrated enclosure, cooling fans and system protection components.

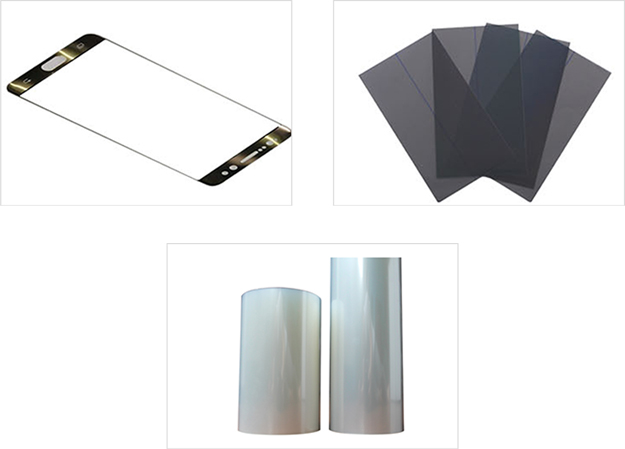

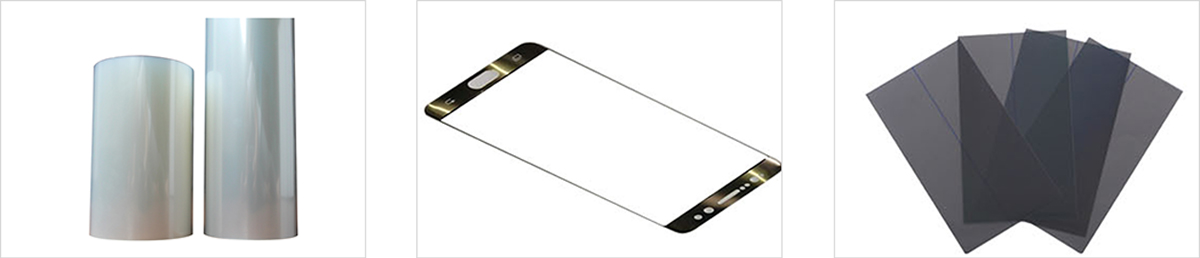

Application Fields
DC0605 is designed for high-precision cutting of non-metallic thin film materials used in display, optical film and electronic device manufacturing.
GDF film
Polarizer film
Touchscreen PET
OCA film
Electronic paper
Handwriting tablet materials
Display & Optical Films
Precision cutting for polarizer film, OCA and PET films used in touchscreens and display-related components.
Electronic Paper Materials
Clean cutting for e-paper and digital display film materials requiring stable edge quality.
Handwriting Tablet Films
Flexible cutting for digital writing board and handwriting tablet material processing.
Where This Machine Fits
Use this guide to choose DC0605 only when the film material and production process match its real scope.
✓ Best for
- PET film cutting up to 1 mm
- OCA film and optical adhesive film processing
- Polarizer film and display-related film materials
- Touchscreen PET film cutting
- Electronic paper and handwriting tablet film materials
- Compact non-metallic thin film cutting workflows
✗ Not for — use another model
- Roll-to-sheet PI / PET / FPC production → GKS-0605D-PI precision laser cutting machine
- FPC, PCB and rigid-flex cutting → GWK-UV4065 precision laser cutting machine
- Glass cutting or glass drilling → Ultrafast glass laser solutions
- Metal sheet cutting → Fiber laser cutting machines
DC0605 vs GKS-0605D-PI
Both machines can support film processing, but the positioning is different. This comparison helps avoid choosing the wrong model.
| Model | Better For | Key Difference | Page |
|---|---|---|---|
| DC0605 | PET film, OCA, polarizer film, touchscreen PET, electronic paper and handwriting tablet materials. | CO₂ sealed RF laser, 500 × 600 mm cutting range, ≤1 mm film thickness, compact PET film cutting workflow. | Current page |
| GKS-0605D-PI | FPC, CVL, PI / PET / PP films, adhesive films, EMI shielding films and composite film production. | Roll-to-sheet precision laser cutting system with higher-end film processing positioning. | View related system |
Not sure if DC0605 fits your film material?Send your film type, thickness, adhesive layer information and drawing file. GWEIKE engineers can review the process.
Send a sample request →
Technical Parameters
Reference specifications for DC0605. Final configuration and cutting performance should be confirmed by GWEIKE engineers according to your film material and process requirements.
| Parameter | DC0605 |
|---|---|
| Model | DC0605 PET Film Laser Cutting Machine |
| Laser Type | CO₂ sealed RF laser |
| Laser Option | C55 optional |
| Laser Safety Class | Class IV |
| Cutting Range | 500 × 600 mm |
| Machining Thickness | ≤ 1 mm |
| Machine Size | 1350 × 1300 × 1600 mm |
| Ambient Temperature / Humidity | 22 ± 2 ℃ / 30–60% |
| Cooling Method | Water cooling |
| Maximum Machining Speed | 300 mm/s |
| Repeat Positioning Accuracy | ±0.01 mm |
| Overall Machining Accuracy | ±0.05 mm |
| Power Requirement | AC 220 V / 14.5 A / 3 kW |
All product parameters are standard reference data. Actual cutting quality depends on film type, thickness, adhesive layer, drawing geometry, fixture and process settings.
Related Precision Laser Processing Guides
Use these resources to understand precision laser cutting, film processing and related micro-nano laser equipment.
Ultrafast Laser Machining Guide
Learn how precision laser systems are used for glass, film, ceramic and micro-nano processing.
Read guide →Precision Laser Cutting Machines
Compare precision laser solutions for film, glass, FPC and micro-nano processing.
View solutions →Ultrafast Glass & Film Equipment
Browse GWEIKE precision laser systems for film, glass, ceramic and electronic materials.
View category →Laser Cutting Process Support
Send material and drawing files to validate cutting quality before buying.
Request support →Download Micro & Nano Catalog
Browse product catalogs for film cutting, glass processing and precision laser equipment.
Download catalog →Frequently Asked Questions
Quick answers for buyers comparing PET film and precision film laser cutting equipment.
Q What materials can DC0605 cut?
It is designed for GDF film, polarizer film, touchscreen PET, OCA, electronic paper and handwriting tablet film materials.
Q What is the maximum processing thickness?
The reference machining thickness is ≤1 mm for suitable non-metallic film materials. Actual results depend on material type, stack structure and adhesive layer.
Q What laser type does DC0605 use?
The standard configuration uses a CO₂ sealed RF laser, with C55 optional according to the current reference specification.
Q Is DC0605 suitable for OCA film cutting?
Yes, OCA is one of the listed application materials. For adhesive film, sample testing is recommended to confirm edge quality and residue control.
Q What is the difference between DC0605 and GKS-0605D-PI?
DC0605 is a compact CO₂ PET film cutting machine. GKS-0605D-PI is positioned for roll-to-sheet precision laser cutting of FPC, PI/PET films and composite film materials.
Q Can GWEIKE test my sample before purchase?
Yes. Send film material, thickness, drawing file, edge quality requirements and production volume. GWEIKE engineers can review the application and discuss a sample test.
Validate Your Film Cutting Process Before Purchase
Share your film type, thickness, adhesive layer, drawing file and production requirement. GWEIKE engineers will help review whether DC0605 is the right fit for your application.
NDA available · Engineering-team review · Configuration confirmed by formal quotation
Request a PET Film Cutting Sample Test
Tell us your film material, thickness, adhesive layer, cutting shape, tolerance requirement and target production volume. Attach a drawing if available.
